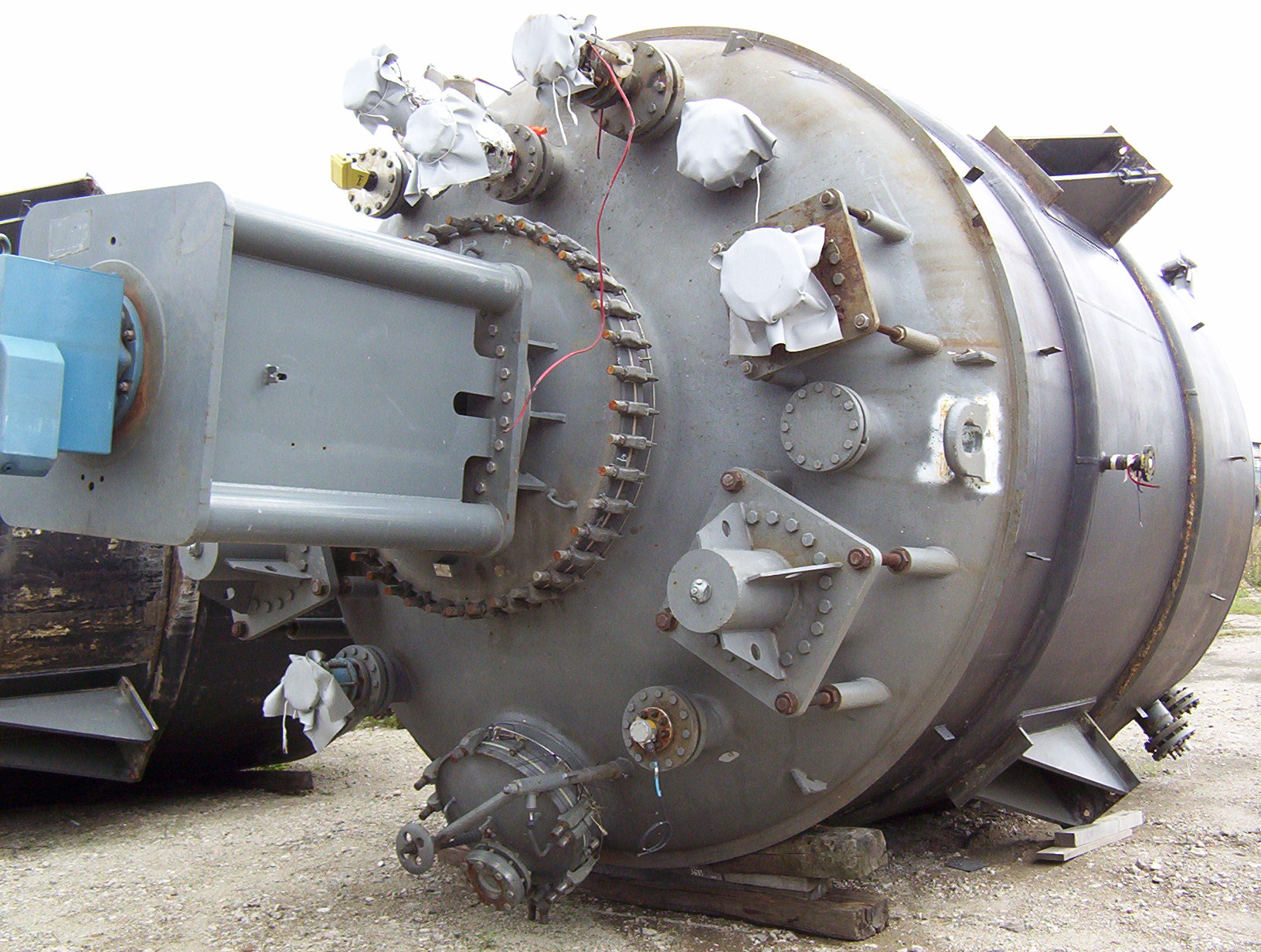

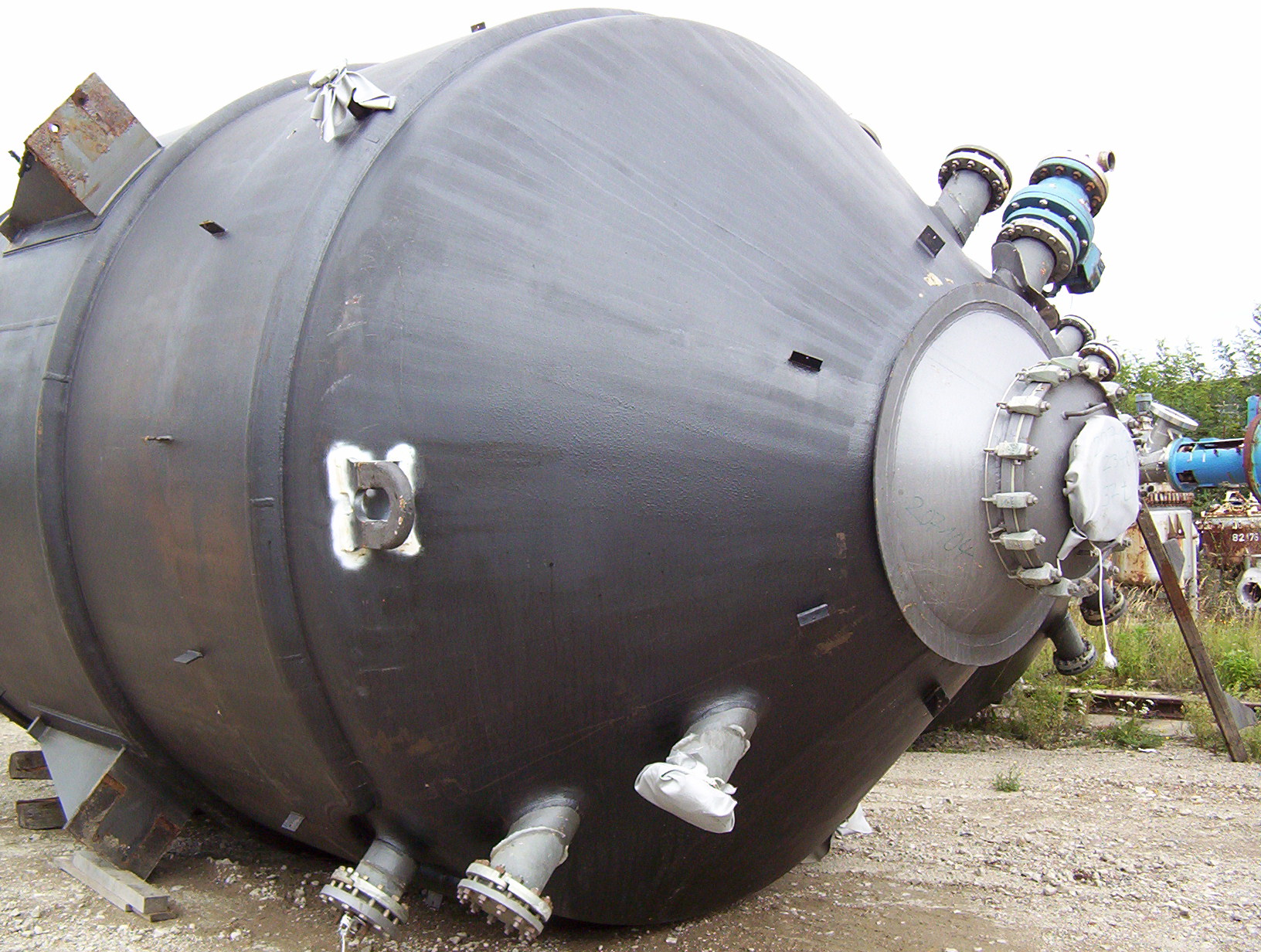

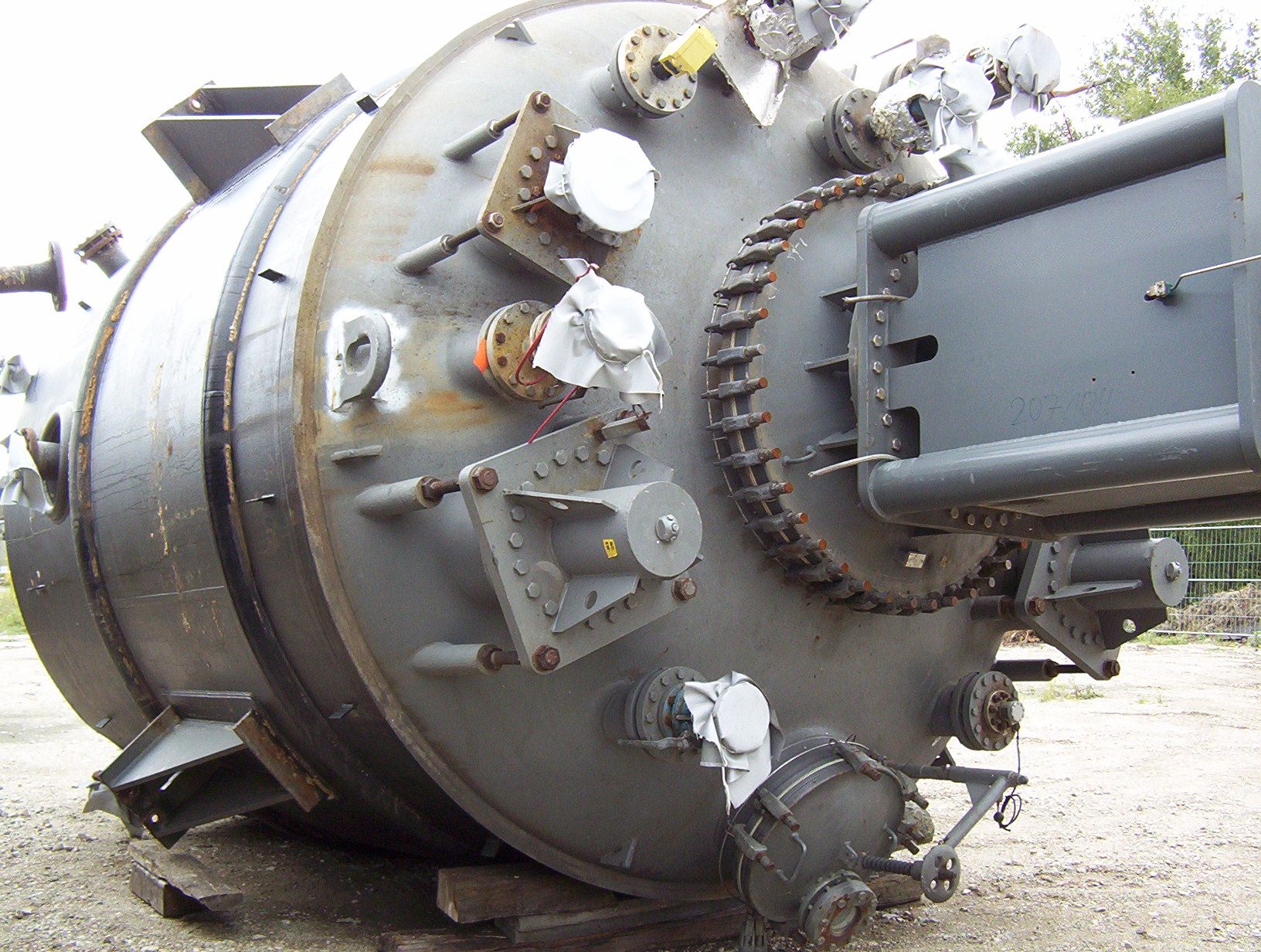

Glasslined DeDietrich CE 50m³ Batch-Type Agitated Reactor - IPP# 207104

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CE 50m³

Condition: Used

Material: Glasslined

Capacity (Design): 54,900 L (14,500 gallons)

Internal Pressure: 0.5 bar (7.3 psi)

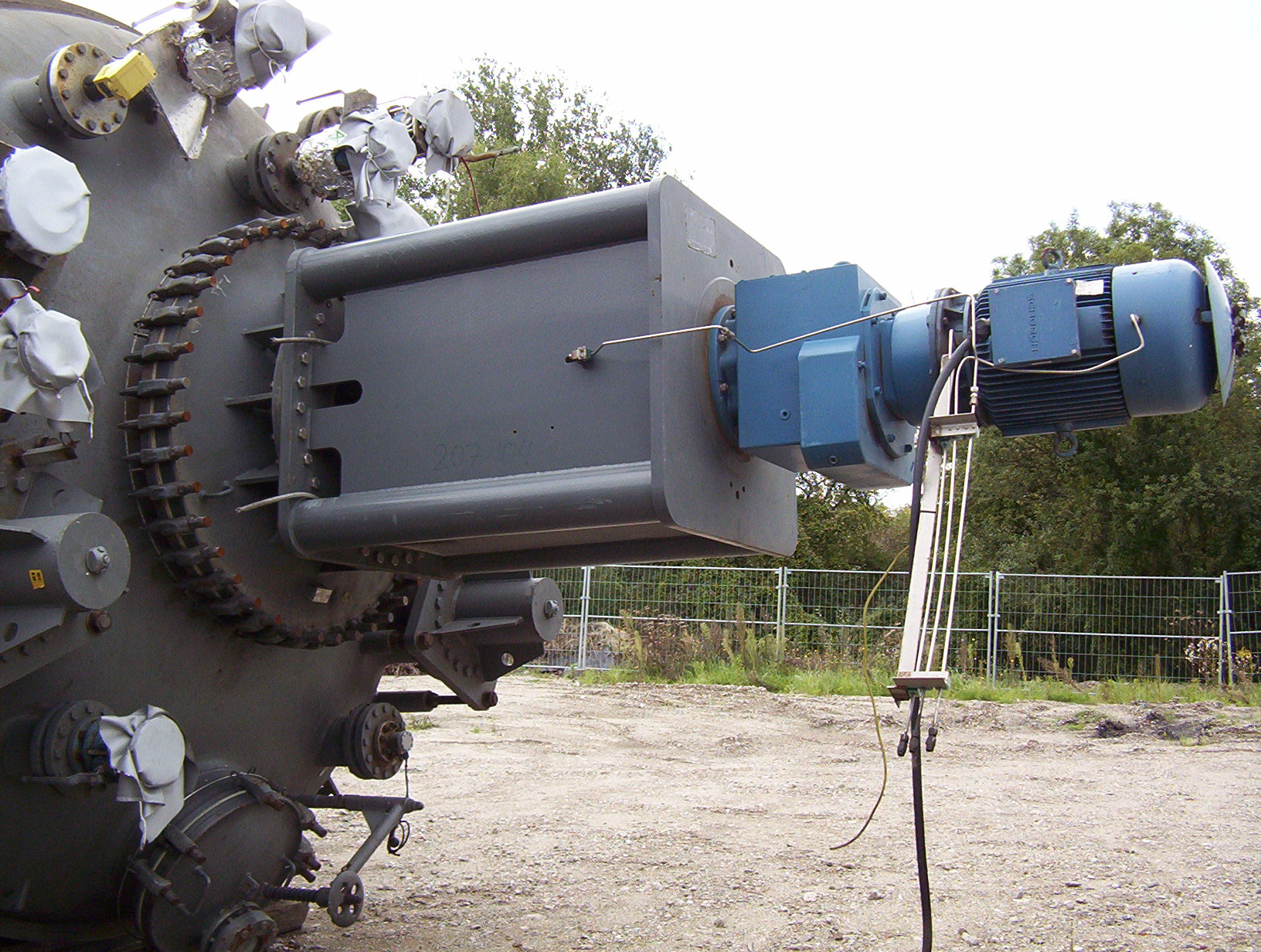

plus 2.4m for the drive on top

Internal Full Vacuum: Yes. Internal Temperature: 132 °C (269.6 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 102 °C (215.6 °F). Agitation: Yes. Diameter: 3,700 mm (145.3 in). Straight Side Length: 7,500 mm (295.3 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CSA

Condition: New

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

Hemi-coil two circuit, two zone split pipe coil jacket rated 450 psig @ 500 degress F, -20 deg F @ 450 psig.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 31 bar (450 psi). Jacket Temperature: 260 °C (500 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 1,200 mm (48 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Condition: Needs Reglass

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

5 TW drive, 40 to 60 rpm output, belt driven motor, 2 finger up baffle.

Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 2,000 mm (78 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

5DTW, belt driven dip tube

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Lugs.
