plus 2.4m for the drive on top

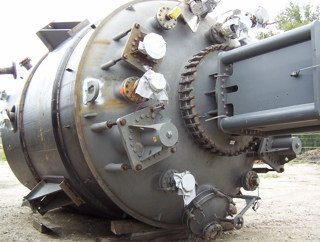

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Model: CE 50m³
Condition: Used
Material: Glasslined
Capacity (Design): 54,900 L (14,503 gallons)
Internal Pressure: 0.5 bar (7.3 psi)
plus 2.4m for the drive on top Type HWL140E
Internal Full Vacuum: Yes. Internal Temperature: 132 °C (269.6 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 105 °C (221 °F). Agitation: Yes. Diameter: 3,690 mm (145.3 in). Straight Side Length: 7,500 mm (295.3 in).
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Model: CSA
Condition: New
Material: Glasslined
Capacity (Design): 2,839 L (750 gallons)
Internal Pressure: 6.9 bar (100 psi)
Hemi-coil two circuit, two zone split pipe coil jacket rated 450 psig @ 500 degress F, -20 deg F @ 450 psig.
Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 31 bar (450 psi). Jacket Temperature: 260 °C (500 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight Side Length: 1,219 mm (48 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Condition: Used
Material: Glasslined
Capacity (Design): 3,785 L (1,000 gallons)
Internal Pressure: 6.9 bar (100 psi)
5 TW drive, 40 to 60 rpm output, belt driven motor, 2 finger up baffle.
Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,981 mm (78 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Condition: Used
Material: Glasslined
Capacity (Design): 3,785 L (1,000 gallons)
Internal Pressure: 6.9 bar (100 psi)
5DTW, belt driven dip tube
Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Lugs.
