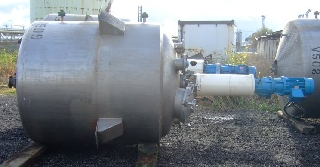

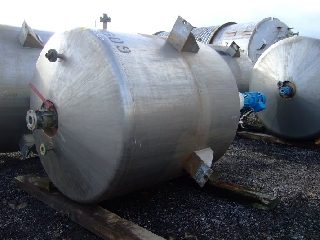

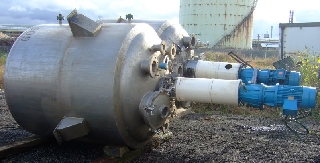

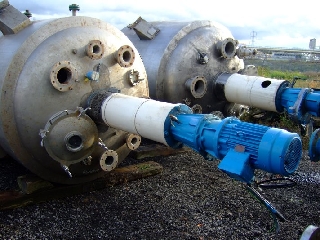

Stainless Steel 317 JENS OLSEN Batch-Type Agitated Reactor - IPP# 207122

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 250 L (66 gallons)

Internal Pressure: 1.5 bar (21.8 psi)

• Jacket Coverage: Bottom half of straight side and bottom dish
• Gland Type: Packed

Jacket Pressure: 2 bar (29 psi). Jacket Material of Construction: Carbon Steel. Diameter: 650 mm (25.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 7,080 L (1,870 gallons)

Internal Pressure: 1.8 bar (26.1 psi)

Bottom jacket working pressure: 7 bar @ 170 degrees C 304 stainless steel limpet coil jacket on straight side, 304 stainless steel straight jacket on bottom dish agitator direct driven by 4.6kw, 3/50/415 volt, 29/1044 rpm Exd motor via a gearbox

Internal Full Vacuum: Yes. Internal Temperature: 170 °C (338 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 170 °C (338 °F). Jacket Material of Construction: Stainless Steel 304. Agitation: Yes. Diameter: 1,900 mm (74.8 in). Straight Side Length: 2,000 mm (78.7 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 5,900 L (1,559 gallons)

Internal Pressure: 2 bar (29 psi)

internal pressure -1/2 bar @ 50/165 degrees C jacket -1/6 bar (150 liter)

• Gearbox: Lenze gearbox
• Insulation: Straight side and bottom dish are insulated and clad with stainless steel. (2) sets of 2-bladde paddles on shaft dry running mechanical seal straight side and bottom dish are insulated and cladd with stainless steel

Internal Full Vacuum: Yes. Internal Temperature: 165 °C (329 °F). Jacket Pressure: 6 bar (87 psi). Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 1,800 mm (70.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 4,050 L (1,070 gallons)

Internal Pressure: 2 bar (29 psi)

internal pressure -1/2 bar @ 50-165 degrees C jacket -1/6 bar (95 liter) (2) sets of 2-blade paddles dry running mechanical seal,

Internal Full Vacuum: Yes. Internal Temperature: 165 °C (329 °F). Jacket Pressure: 6 bar (87 psi). Jacket Material of Construction: Stainless Steel 304. Agitation: Yes. Diameter: 1,588 mm (62.5 in). Straight Side Length: 1,500 mm (59.1 in). Support Type: Lugs.
