Name: Stainless Steel 316 Clad JENS OLSEN Batch-Type Agitated Reactor
Brand: JENS OLSEN
SKU: 706744

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

JENS OLSEN

Condition:

Used

Material:

Stainless Steel 316

Clad:

Yes

Capacity (Design):

5,900 L (1,559 gallons)

Pressure Vessel

Internal Pressure:

2 bar (29 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

165 °C (329 °F)

Jacket/Internal Coil

Jacket Pressure:

6 bar (87 psi)

Agitation System

Agitation:

Yes

Agitation Seal Type:

Mechanical

Agitator Details:

Motor Power:

11 kW (14.8 HP)

Dimensions

Diameter:

1,800 mm (70.9 in)

Straight Side Length:

1,800 mm (70.9 in)

Heads

Top Head Type:

Dish

Bottom Head Type:

Dish

Bottom Head Material:

Stainless Steel 304

Other Specifications

Manway:

Yes

Support Type:

Lugs

Inlets & Outlets

Nozzle Schedule:

Top openings: 1-420mm manway with cover, 2-250mm, 2-200mm, 2-100mm, 1-100mm sightglass, 2-25mm (1-screw type) - Straight side openings: 2-25mm - Jacket openings: 2-25mm (side), 2-30mm (bottom) - Bottom openings: 1-75mm

Additional Info:

internal pressure -1/2 bar @ 50/165 degrees C jacket -1/6 bar (150 liter)

Gearbox: Lenze gearbox

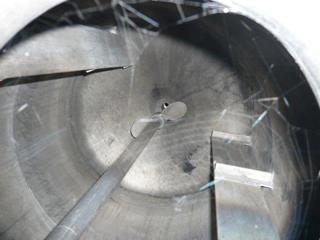

Insulation: Straight side and bottom dish are insulated and clad with stainless steel. (2) sets of 2-bladde paddles on shaft dry running mechanical seal straight side and bottom dish are insulated and cladd with stainless steel

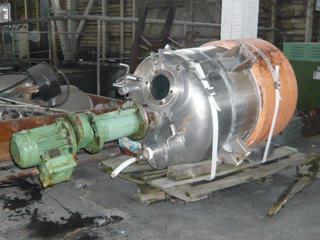

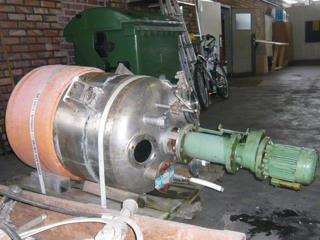

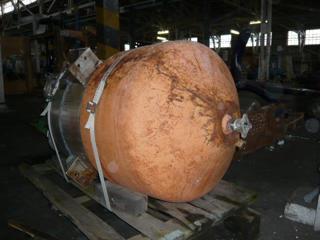

250 L (66 gallons) Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 250 L (66 gallons)

Internal Pressure: 1.5 bar (21.8 psi)

Jacket Coverage: Bottom half of straight side and bottom dish
Gland Type: Packed

Jacket Pressure: 2 bar (29 psi). Jacket Material of Construction: Carbon Steel. Diameter: 650 mm (25.6 in). Support Type: Lugs.

Stainless Steel 316 JENS OLSEN Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 7,080 L (1,870 gallons)

Internal Pressure: 1.8 bar (26.1 psi)

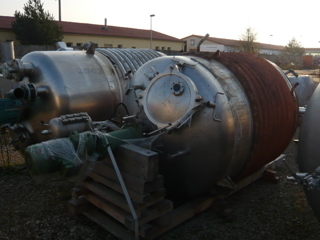

Bottom jacket working pressure: 7 bar @ 170 degrees C 304 stainless steel limpet coil jacket on straight side, 304 stainless steel straight jacket on bottom dish agitator direct driven by 4.6kw, 3/50/415 volt, 29/1044 rpm Exd motor via a gearbox

Internal Full Vacuum: Yes. Internal Temperature: 170 °C (338 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 170 °C (338 °F). Jacket Material of Construction: Stainless Steel 304. Agitation: Yes. Diameter: 1,900 mm (74.8 in). Straight Side Length: 2,000 mm (78.7 in). Support Type: Legs.

Stainless Steel 316 JENS OLSEN Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 4,050 L (1,070 gallons)

Internal Pressure: 2 bar (29 psi)

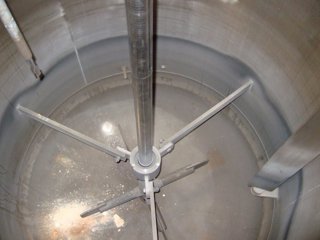

internal pressure -1/2 bar @ 50-165 degrees C jacket -1/6 bar (95 liter) (2) sets of 2-blade paddles dry running mechanical seal,

Internal Full Vacuum: Yes. Internal Temperature: 165 °C (329 °F). Jacket Pressure: 6 bar (87 psi). Jacket Material of Construction: Stainless Steel 304. Agitation: Yes. Diameter: 1,588 mm (62.5 in). Straight Side Length: 1,500 mm (59.1 in). Support Type: Lugs.
