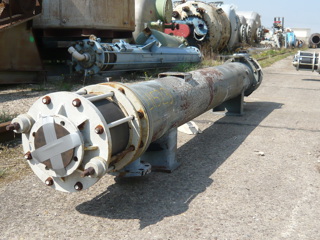

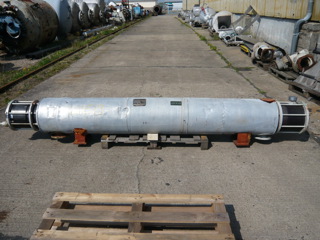

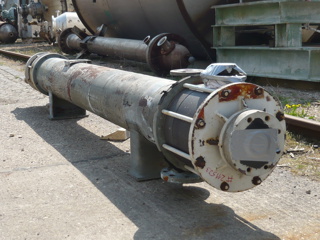

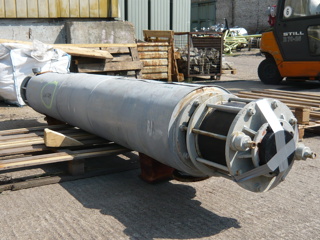

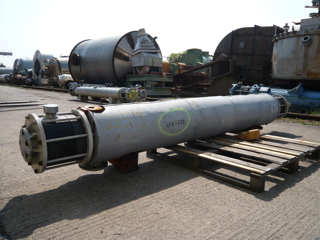

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

IPP# 211516, 3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Graphite

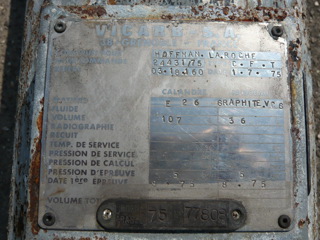

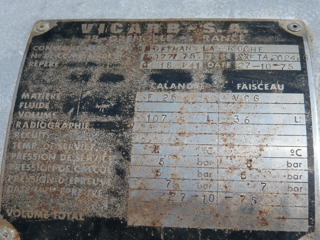

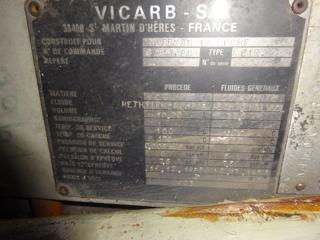

Manufacturer:

VICARB

Heat Transfer Surface Area:

3 m² (32.3 ft²)

Orientation:

Horizontal

Shell Pressure:

3.5 bar (50.8 psi)

Shell Temperature:

160 °C (320 °F)

Shell Material:

Carbon Steel

Tube Pressure:

5.3 bar (76.1 psi)

Tube Temperature:

160 °C (320 °F)

Tube Material:

Graphite

Vacuum:

Yes

Shell Diameter:

285 mm (11.2 in)

Length:

2,310 mm (90.9 in)

Tube Number:

24

Tube Diameter:

32 mm (1.26 in)

Tube Length:

1,790 mm (70.5 in)

Tube Thickness:

12 mm (0.47 in)

Nozzle Schedule:

- Openings: 1-head with 2-50mm, 1-head with 1-100mm, shell: 2-100mm, 1-25mm

Additional Info:

condenser Tube dimensions: (24) 20mm x 32mm OD x 1790mm long
