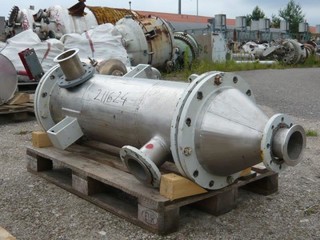

contact condenser. shell 362 mm diameter x 1145mm flange to flange x 1610mm over all length Bolted dished top, bolted cone bottom
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Chematec AG
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 1.3 m² (14 ft²)
Orientation: Vertical

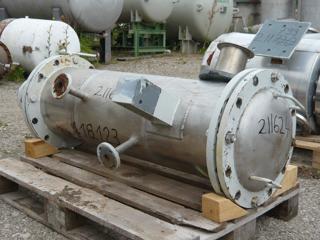

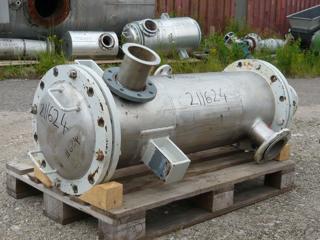

contact condenser shell 362 mm diameter x 1145mm flange to flange x 1610mm over all length. Bolted dished top, bolted cone bottom
Shell Pressure: 4.8 bar (69.6 psi). Shell Material: Stainless Steel Other. Tube Pressure: 8 bar (116 psi). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Shell Diameter: 362 mm (14.3 in). Head Material: Stainless Steel Other. Length: 1,610 mm (63.4 in). Tube Number: 1. Tube Diameter: 58 mm (2.3 in). Tube Length: 330 mm (13 in). Nozzle Schedule: - Openings: - Service side: (2) 25 mm for cooling fluid - Process side: (1) 100 mm vacuum/non condensable gas outlet, (1) 100 mm vapor inlet - Bottom head: (1) 100 mm condensate outlet.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Chematec AG
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 1.3 m² (14 ft²)
Orientation: Vertical

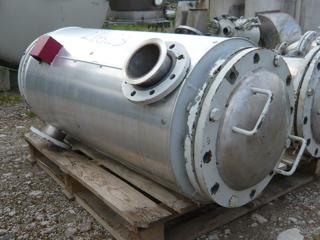

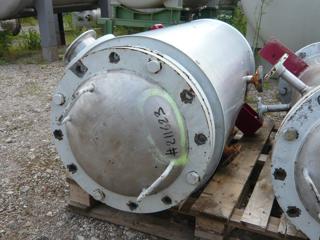

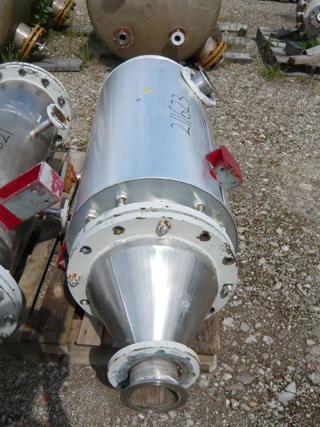

contact condenser. SS shell 362 mm diameter x 1145mm flange to flange x 1610mm over all length. Bolted dished top, bolted cone bottom.
Shell Pressure: 4.8 bar (69.6 psi). Shell Material: Stainless Steel Other. Tube Pressure: 8 bar (116 psi). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Shell Diameter: 362 mm (14.3 in). Head Material: Stainless Steel Other. Length: 1,610 mm (63.4 in). Tube Number: 1. Tube Diameter: 58 mm (2.3 in). Tube Length: 330 mm (13 in). Nozzle Schedule: - Openings: - Service side: (2) 25 mm for cooling fluid - Process side: (1) 100 mm vacuum/non condensable gas outlet, (1) 100 mm vapor inlet - Bottom head: (1) 100 mm condensate outlet.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Hughes & Anderson
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 195.6 m² (2,105 ft²)
Orientation: Horizontal
Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel Other. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 3,962 mm (156 in). Shell-side Passes: 1. Tube-side Passes: 10. Tube Number: 1,100. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Tube nozzles: Two 6" - Shell nozzles: One 16" and one 20".
Type: Heat Exchanger
Subtype: Shell and Tube
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 9.3 m² (100 ft²)
Orientation: Horizontal
(2) bolted dished heads.
Shell Material: Carbon Steel. Tube Material: Stainless Steel Other. Head Material: Stainless Steel Other. Length: 1,524 mm (60 in). Nozzle Schedule: Openings include: Heads (1) 4", (1) 2"; Shell (2) 3"..
