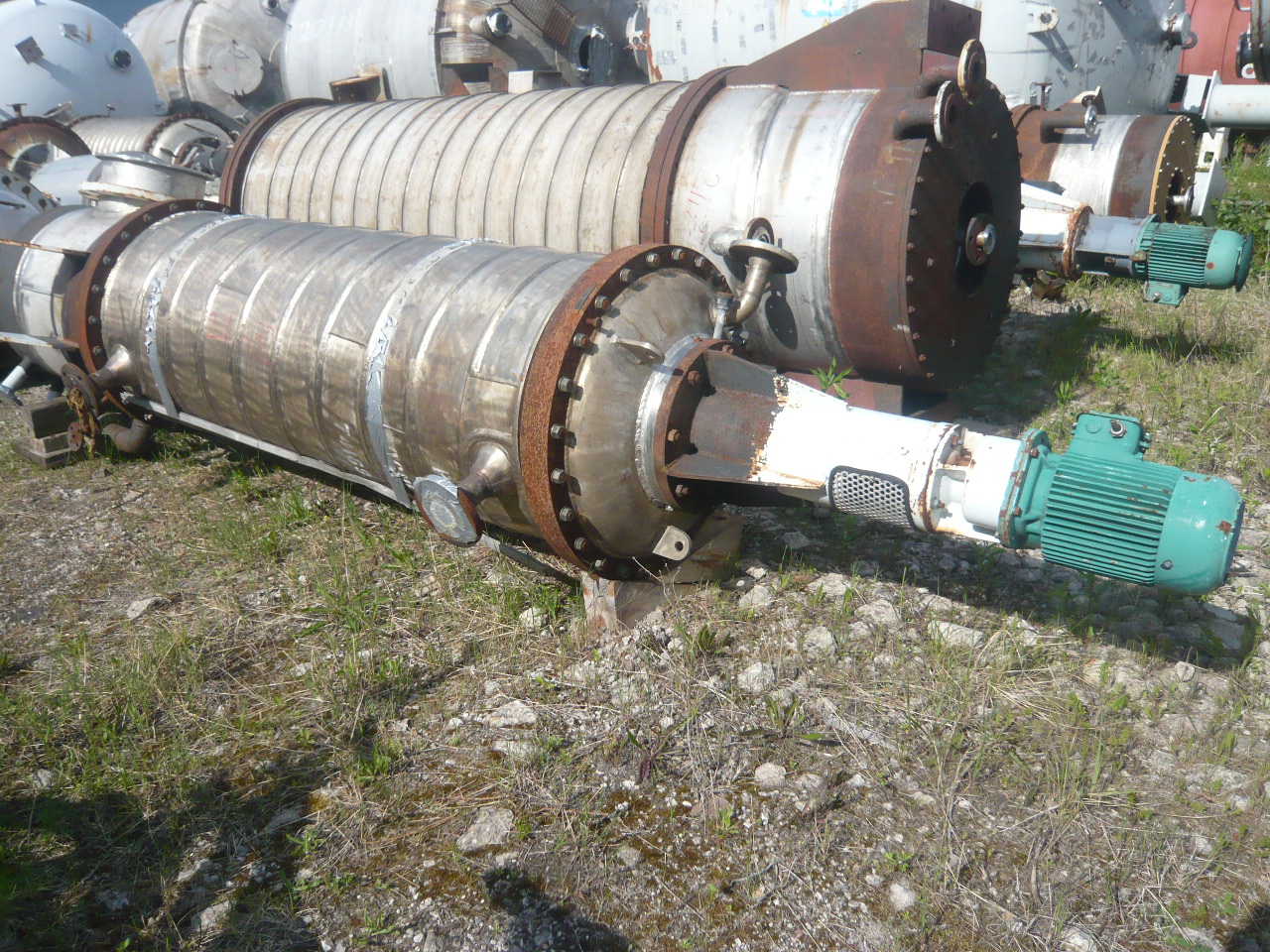

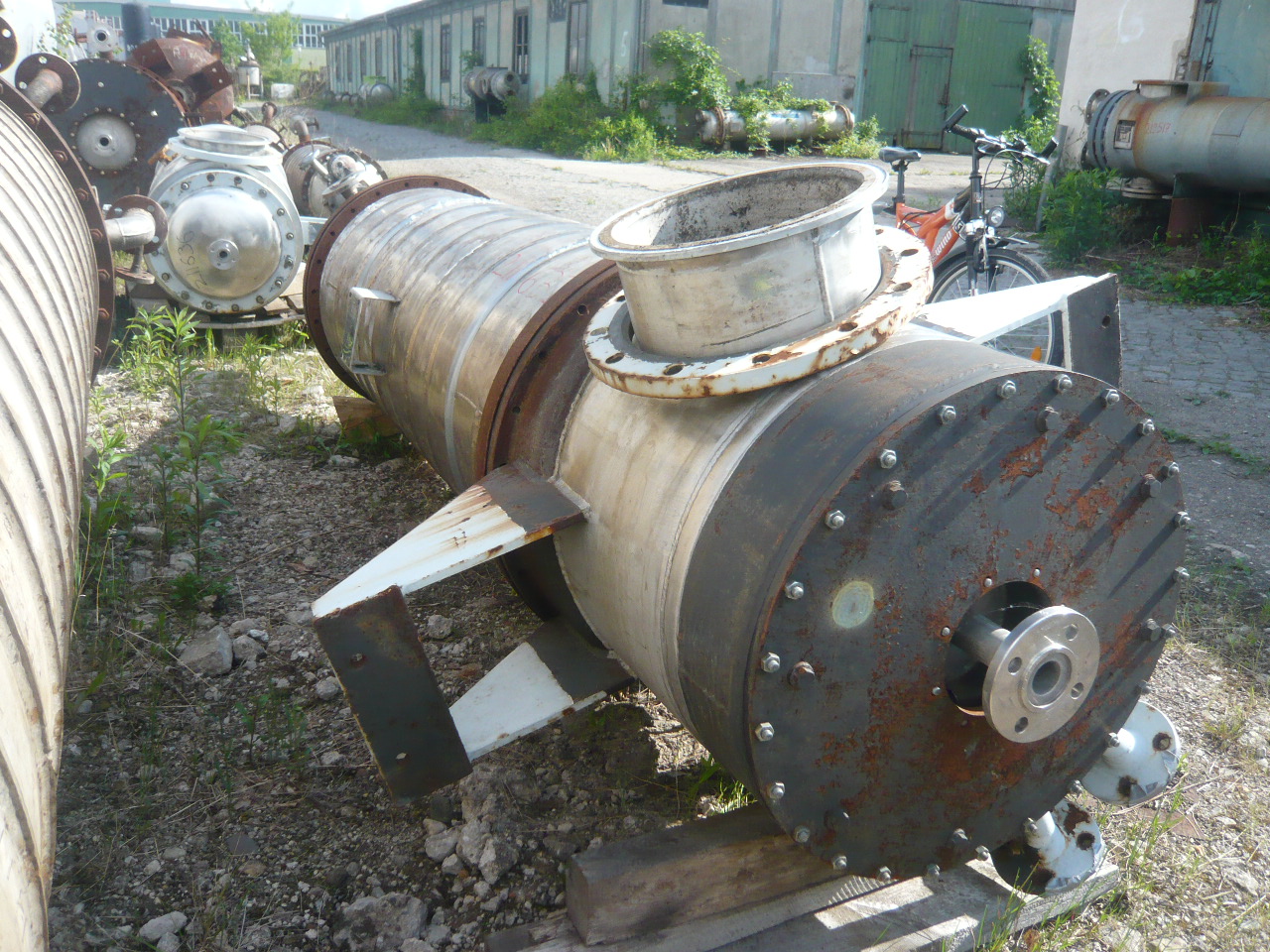

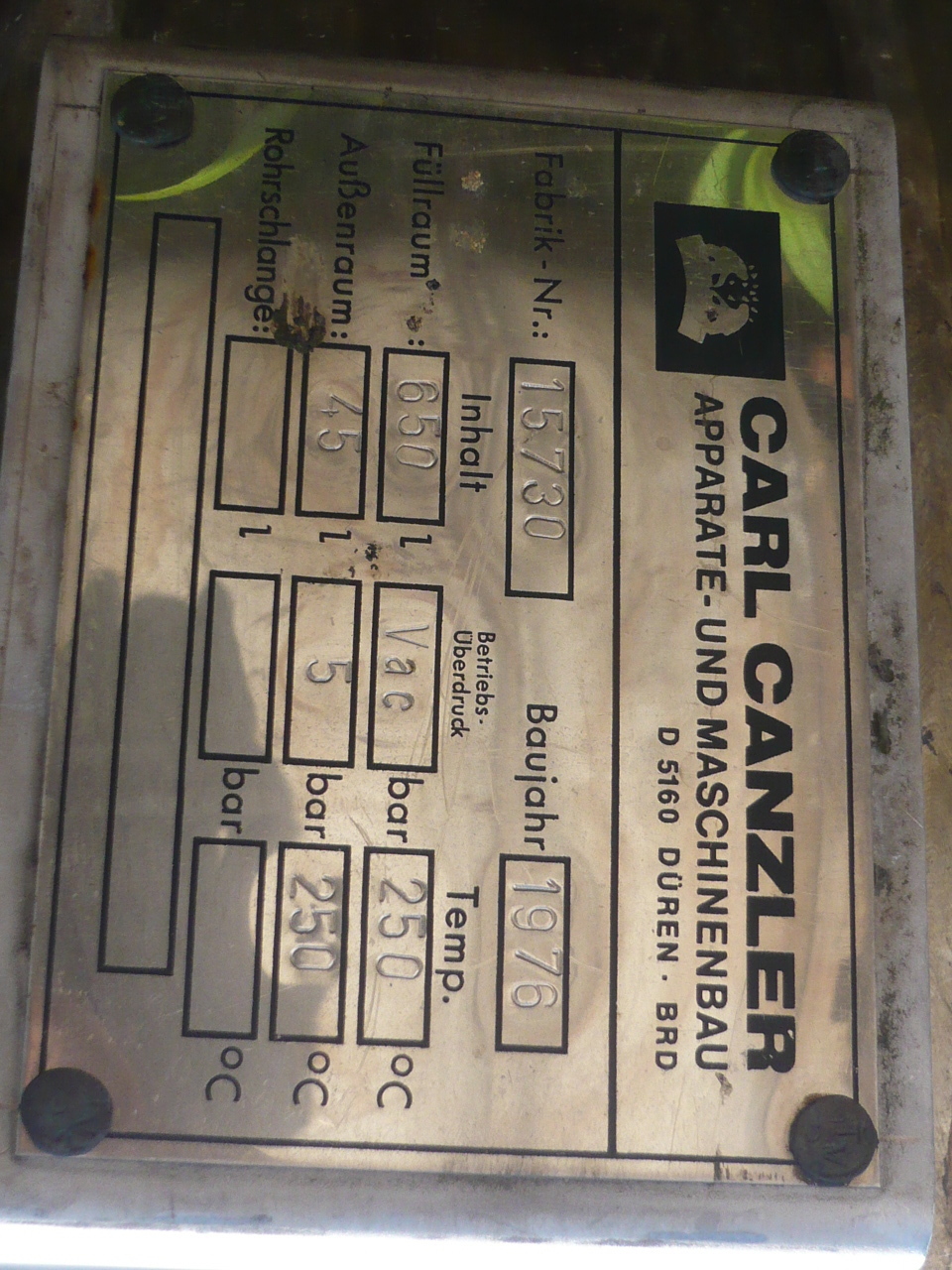

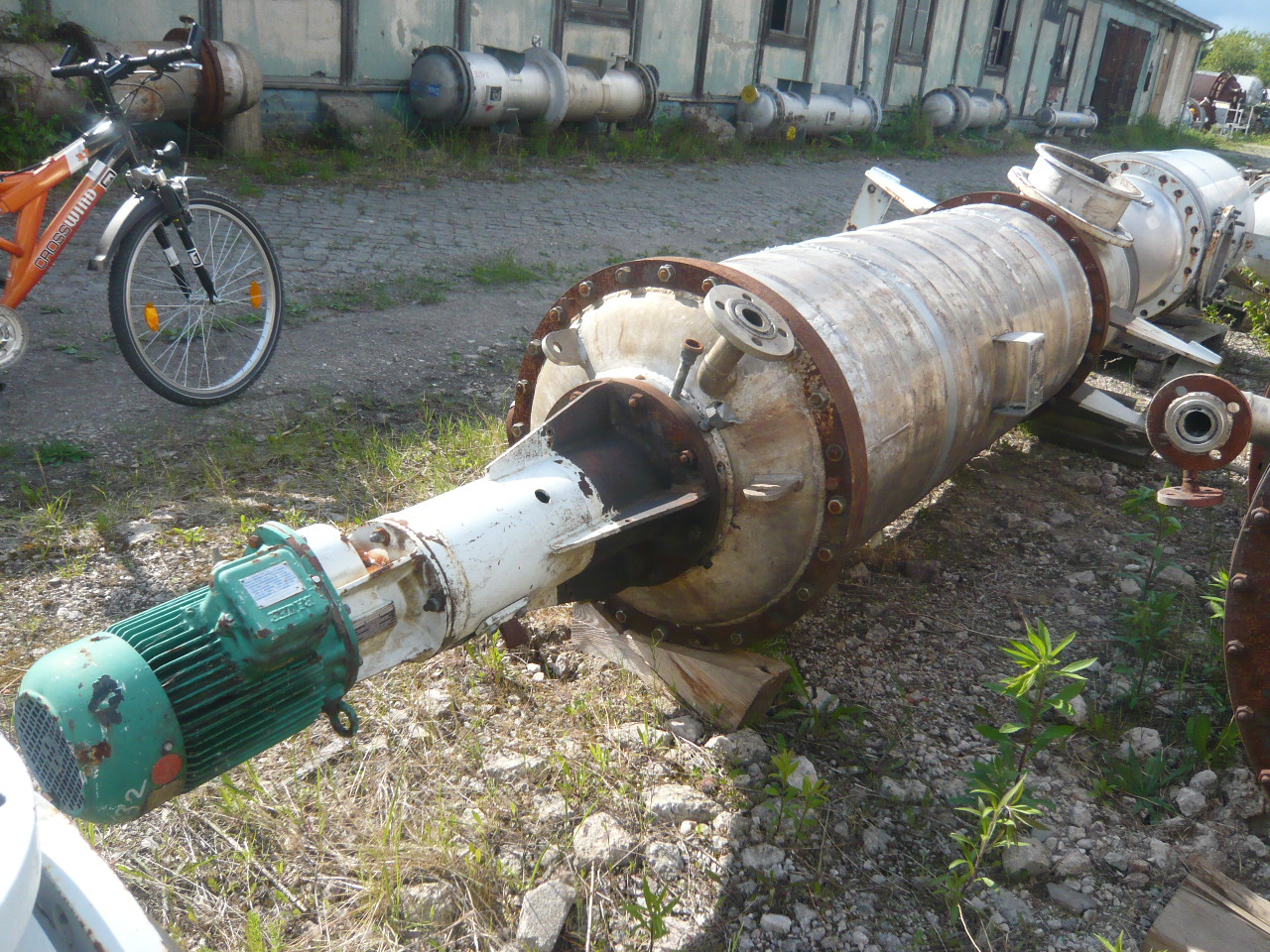

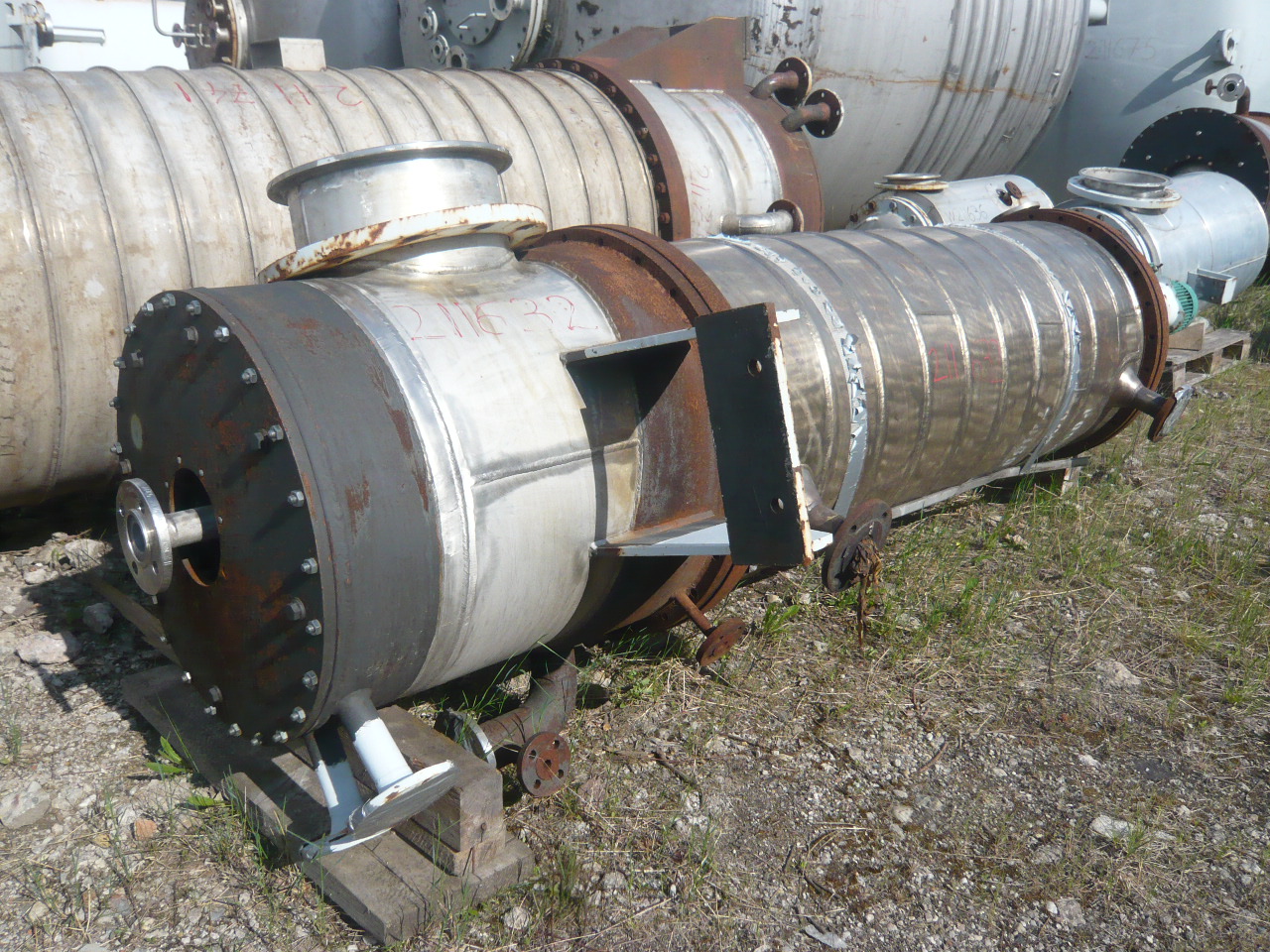

Short Path wiped film evaporator system with internal condensor 650 liter internal 45 liter in the jacket top mounted rotor drive with a 2.2 kW/50 Hz gear motor with mechanical seal on rotor, (72) Graphit wipers on rotor wipers dimensions: 30mmx16mmx150mm; shell thickness: 8.0 mm; evaporator has a side bottom discharge for product 4.5 m² internal condensor: with (40)pipes, 25 mm outside diameter x 2270 mm long x 1.5 mm thickness

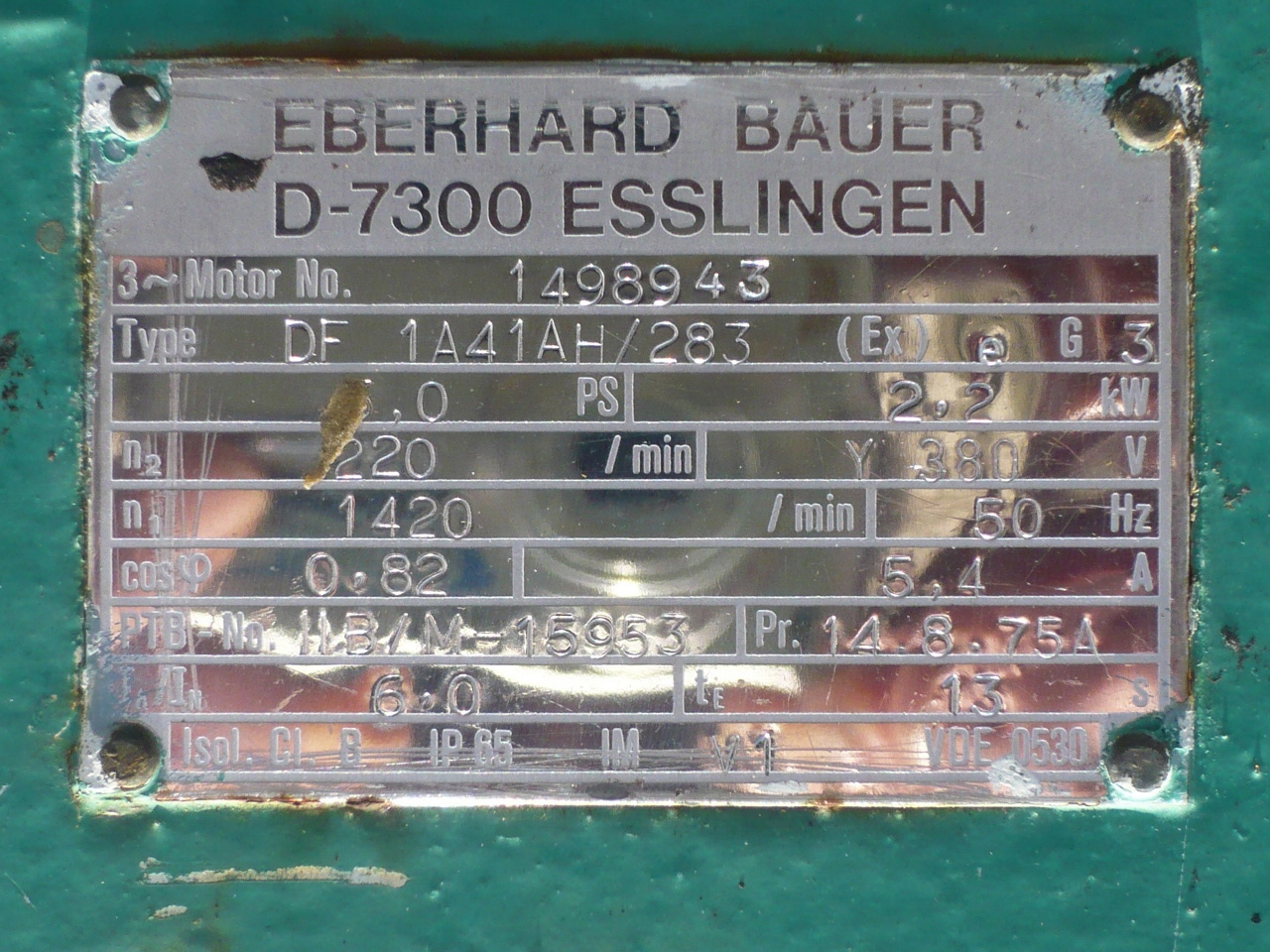

motor data: 380 V/2.2 kW/50 HZ/1420 rpm, exproof (G3), mfd by EBERHARD BAUER - Germany; (1) separately 1.3 m² s/steel cold trap, mfd by Chematec AG - Switzerland, rated tube side 2 bar, rated shell side 5 bar, 368 mm diameter x 1420 length total. Mounted on (2) lugs.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: CARL GANZLER
Model: 900/6,5-K10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 158.8 kg/h (350 lb/h)
Total Heat Transfer Surface Area: 6.5 m² (70 ft²)
Short Path wiped film evaporator system with internal condensor includes SS seperator tank. Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, Graphite wipers on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.
Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Brown Boveri eOU 112 MB 4 .
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: CARL GANZLER
Model: 900/6,0-K10
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 145.1 kg/h (320 lb/h)
Total Heat Transfer Surface Area: 6 m² (64.6 ft²)
Short Path wiped film evaporator system with internal condensor Includes 2.9m² SS cold trap Rated 2000 liter 95 liter in the jacket Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor Evaporator has a side bottom discharge for product Vessel weight empty 2600 kg; motor and rotor 800 kg.
Orientation: Vertical. Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eberhard Bauer DF 2A45HZ/309.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: CARL GANZLER
Model: 450/1.8-K2.7
Condition: Used
Material: Stainless Steel Austenitic
Evaporation Rate: 43.1 kg/h (95 lb/h)
Total Heat Transfer Surface Area: 1.8 m² (19.4 ft²)
Short Path wiped film evaporator system with internal condensor includes SS cold trap. Rated 490 liter 20 liter in the jacket Top mounted rotor drive with a 1.5 kw, 50 Hz gear motor with mechanical seal on rotor, graphit wipers on rotor. .2.7 SqM internal tube condenser, inlet and outlet for condensor in Bottom head. Evaporator has a side bottom discharge for product. Vessel weight empty, 700 kg; motor and rotor 350 kg.
Diameter: 470 mm (18.5 in). Height: 3,172 mm (124.9 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Internal Condenser size: 2.7 m² (29.1 ft²). Vacuum: Yes. Drive Type: Eberhard Bauer DKF 941AH/241.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: CARL GANZLER
Model: 450/1.8-K2.7
Condition: Used
Material: Stainless Steel Austenitic
Total Heat Transfer Surface Area: 1.8 m² (19.4 ft²)
Orientation: Vertical
Short Path wiped film evaporator system with internal condensor includes SS seperator tank Rated 490 liter 20 liter in the jacket. Top mounted rotor drive with a 3 kw, 50 Hz gear motor with mechanical seal on rotor. Graphie wipers on rotor Unit has a bolted bottom head with 2.7 SqM internal tube condenser, inlet and outlet for condensor in Bottom head. Evaporator has a side bottom discharge for product. Vessel weight empty, 700 kg; motor and rotor 350 kg.
Diameter: 470 mm (18.5 in). Height: 3,172 mm (124.9 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Internal Condenser size: 2.7 m² (29.1 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
