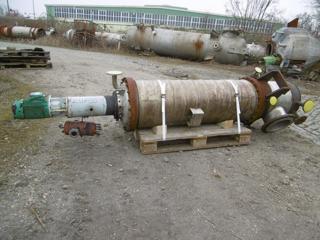

Stainless Steel Austenitic Wiped/Thin Film Evaporator 43.1 kg/h (95 lb/h) For Sale

Type:

Evaporator

Subtype:

Wiped/Thin Film

Manufacturer:

CARL GANZLER

Model:

450/1.8-K2.7

Condition:

Used

Material:

Stainless Steel Austenitic

Evaporation Rate:

43.1 kg/h (95 lb/h)

Total Heat Transfer Surface Area:

1.8 m² (19.4 ft²)

Diameter:

470 mm (18.5 in)

Height:

3,172 mm (124.9 in)

Pressure:

5 bar (72.5 psi)

Temperature:

250 °C (482 °F)

Internal Condenser:

Yes

Internal Condenser size:

2.7 m² (29.1 ft²)

Vacuum:

Yes

Nozzle Schedule:

Top - (1) 40mm product inlet, (1) 250 mm side bottom outlet, (1) 40 mm side bottom; 1) 40mm and (1) 25 mm for internal condenser.

Top Head type:

Flat

Top Head Fastening:

Bolted

Bottom Head Type:

Flat

Bottom Head Fastening:

Bolted

Drive Type:

Eberhard Bauer DKF 941AH/241

Drive Motor HP:

1.5 kW (2 HP)

Drive Motor RPM:

1,420

Drive Motor Voltage:

380

Electrical Phase:

Drive Motor Hertz:

Additional Info:

Short Path wiped film evaporator system with internal condensor includes SS cold trap. Rated 490 liter 20 liter in the jacket Top mounted rotor drive with a 1.5 kw, 50 Hz gear motor with mechanical seal on rotor, graphit wipers on rotor. .2.7 SqM internal tube condenser, inlet and outlet for condensor in Bottom head. Evaporator has a side bottom discharge for product. Vessel weight empty, 700 kg; motor and rotor 350 kg.

Stainless Steel Austenitic Wiped/Thin Film Evaporator 43.1 kg/h (95 lb/h) For Sale - IPP# 211636
