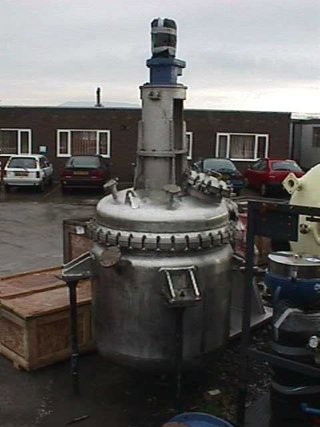

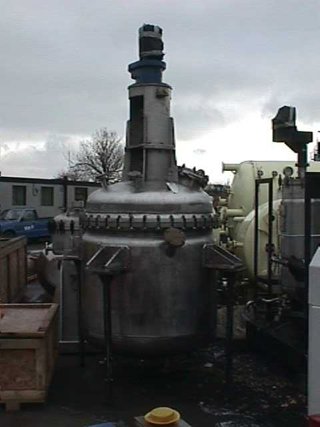

Stainless Steel 316 Clad Batch-Type Agitated Reactor - IPP# 212456

Overview

Type:

Reactor

Subtype:

Batch Type Body Only

Condition:

Used

Material:

Stainless Steel 316

Clad:

Yes

Capacity (Design):

29,800 L (7,872 gallons)

Body Only:

Yes

Pressure Vessel

Internal Pressure:

12.5 bar (181.3 psi)

Internal Temperature:

80 °C (176 °F)

Jacket/Internal Coil

Jacket Pressure:

3.9 bar (56.6 psi)

Jacket Temperature:

100 °C (212 °F)

Jacket Material of Construction:

Carbon Steel

Dimensions

Orientation:

Vertical

Diameter:

3,000 mm (118.1 in)

Straight Side Length:

3,250 mm (128 in)

Heads

Top Head Type:

Dish

Top Head Material:

Stainless Steel 316

Bottom Head Type:

Dish

Bottom Head Material:

Stainless Steel 316

Other Specifications

Manway:

Yes

Support Type:

Lugs

Additional Info:
