Stainless Steel 316 Veb Erfurt-Rudisleben Batch-Type Reactor Body - IPP# 70539

Type: Reactor

Subtype: Batch Type Body Only

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 29,800 L (7,872 gallons)

Internal Pressure: 12.5 bar (181 psi)

Internal Temperature: 80 °C (176 °F). Jacket Pressure: 3.9 bar (56.6 psi). Jacket Temperature: 100 °C (212 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 3,000 mm (118 in). Straight Side Length: 3,250 mm (128 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,893 L (500 gallons)

Internal Pressure: 3.79 bar (55 psi)

• No mixer but has drive bosses on top head

Internal Temperature: 177 °C (350 °F). Jacket Pressure: 2.76 bar (40 psi). Jacket Temperature: 177 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight Side Length: 1,016 mm (40 in). Support Type: Legs.

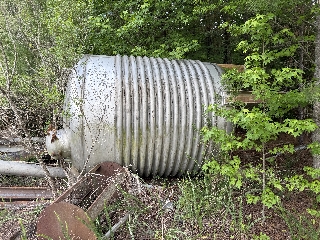

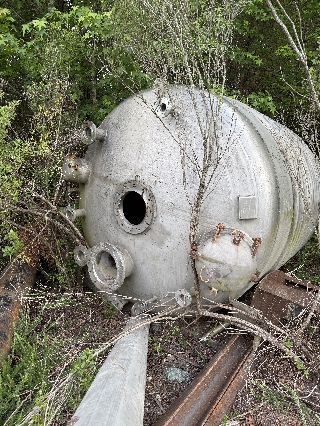

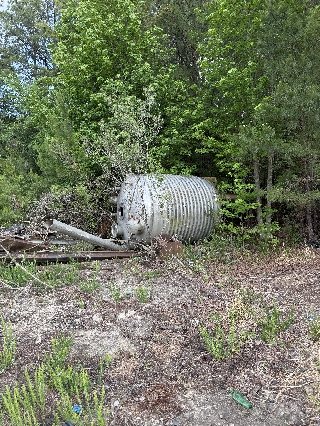

Type: Reactor

Subtype: Batch Type Body Only

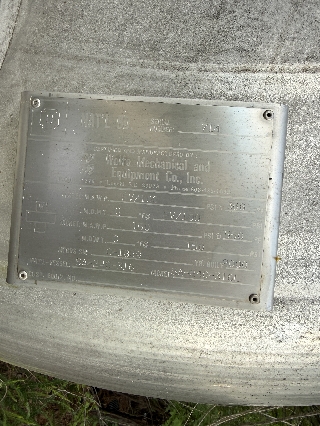

Manufacturer: Wolfe Mechanical

Condition: Unused

Material: Stainless Steel 316

Internal Pressure: 6.89 bar (100 psi)

Internal Full Vacuum: Yes

Internal Temperature: 186 °C (366 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 288 °C (550 °F). Jacket Material of Construction: Stainless Steel 316L. Body Only: Yes. Orientation: Vertical.
