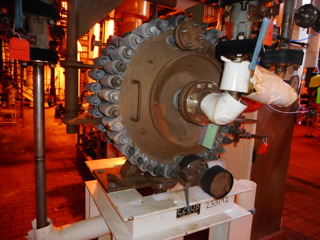

Name: Duplex Alfa Laval SHE, 1-V Spiral Heat Exchanger
Brand: Alfa Laval
SKU: 215336

Type:

Heat Exchanger

Subtype:

Spiral

Manufacturer:

Alfa Laval

Model:

SHE, 1-V

Condition:

Used

Material:

Duplex

Heat Transfer Surface Area:

143.5 m² (1,545 ft²)

Shell Material:

Duplex

Shell Diameter:

1,715 mm (67.5 in)

Head Material:

Carbon Steel

Length:

750 mm (29.5 in)

Nozzle Schedule:

openings: top: 1-100mm (channel A), side: 2-100mm (channel A + B), bottom: 1-100mm (channel B),

Cold-side Pressure:

5 bar (72.5 psi)

Cold-side Temperature:

250 °C (482 °F)

Hot-side Pressure:

5 bar (72.5 psi)

Hot-side Temperature:

250 °C (482 °F)

Spiral Material:

Duplex

Additional Info:

spacing channel A = 10, B = 9, volume: channel A = 730 ltr, B= 670 ltr, carbon steel heads with Duplex lining

Duplex Alfa Laval SHE, 1-V Spiral Heat Exchanger - IPP# 215336
