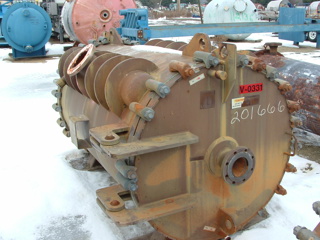

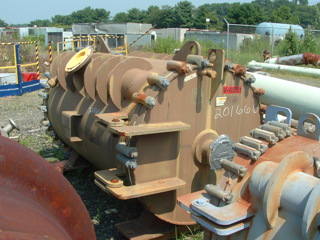

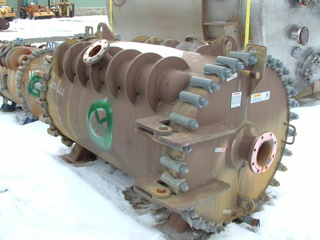

Carbon Steel Spiral Heat Exchanger - IPP# 221135

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 97.5 m² (1,050 ft²)

Shell Pressure: 6.9 bar (100 psi)

Shell Temperature: 93.3 °C (200 °F). Length: 1,829 mm (72 in). Nozzle Schedule: Openings: process side (1) 6", (1) 4", service side (1) 6", (1) 4"..

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 97.5 m² (1,050 ft²)

Shell Pressure: 6.9 bar (100 psi)

Shell Temperature: 93.3 °C (200 °F). Length: 1,524 mm (60 in). Nozzle Schedule: Openings: process side (2) 3", service side (2) 3".

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: 1-V

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 99 m² (1,066 ft²)

Shell Material: Carbon Steel

type SHE spacing channel A = 8, B = 9, volume: channel A = 450 ltr, B= 500 ltr

Shell Diameter: 1,380 mm (54.3 in). Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-80mm, side: 2-80mm, bottom: 1-80mm,. Cold-side Pressure: 5.2 bar (75 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5.2 bar (75 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: SHE, 1-V

Condition: Used

Material: Duplex

Heat Transfer Surface Area: 143.5 m² (1,545 ft²)

Shell Material: Duplex

spacing channel A = 10, B = 9, volume: channel A = 730 ltr, B= 670 ltr, carbon steel heads with Duplex lining

Shell Diameter: 1,715 mm (67.5 in). Head Material: Carbon Steel. Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-100mm (channel A), side: 2-100mm (channel A + B), bottom: 1-100mm (channel B),. Cold-side Pressure: 5 bar (72.5 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5 bar (72.5 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Duplex.
