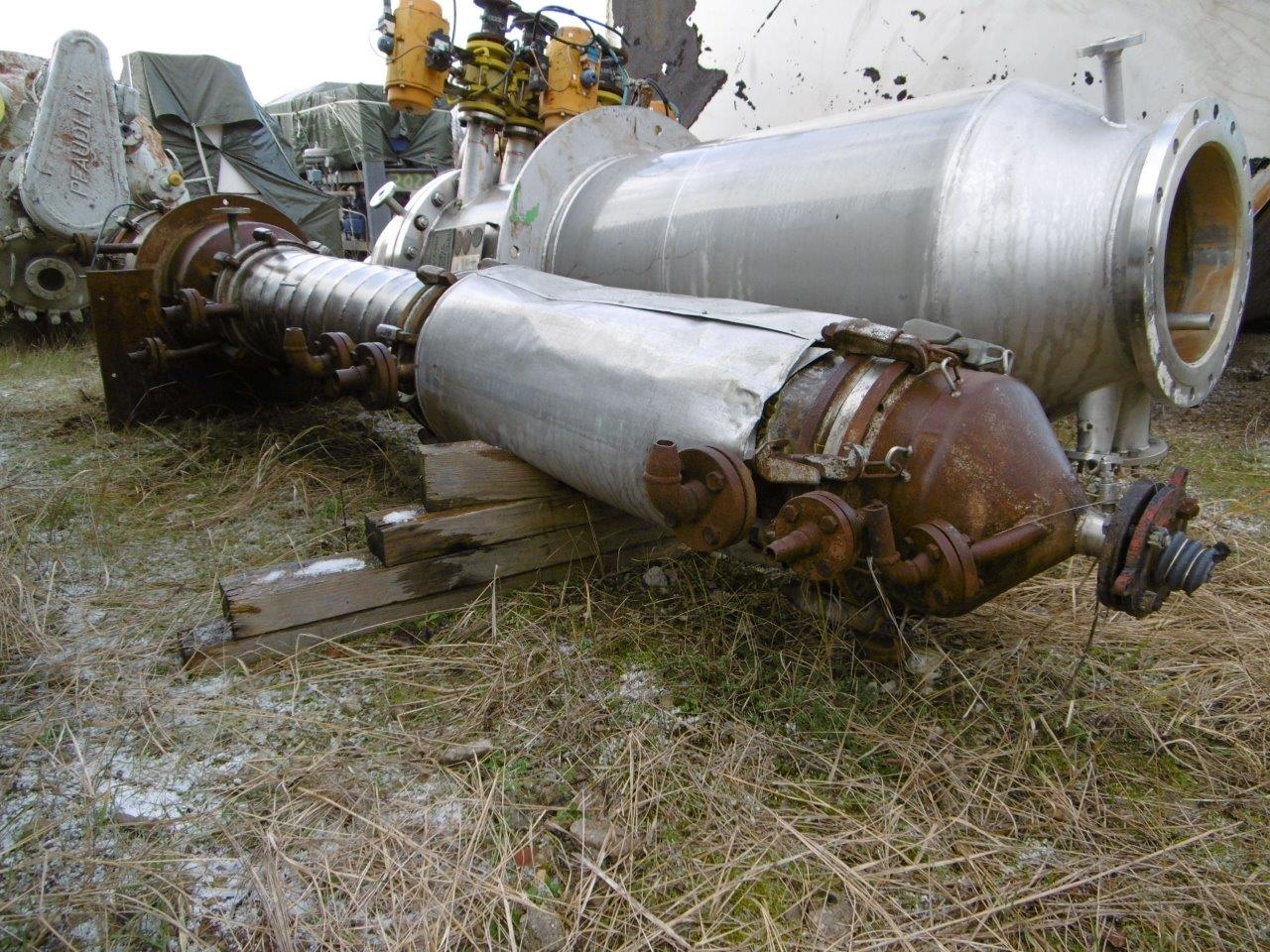

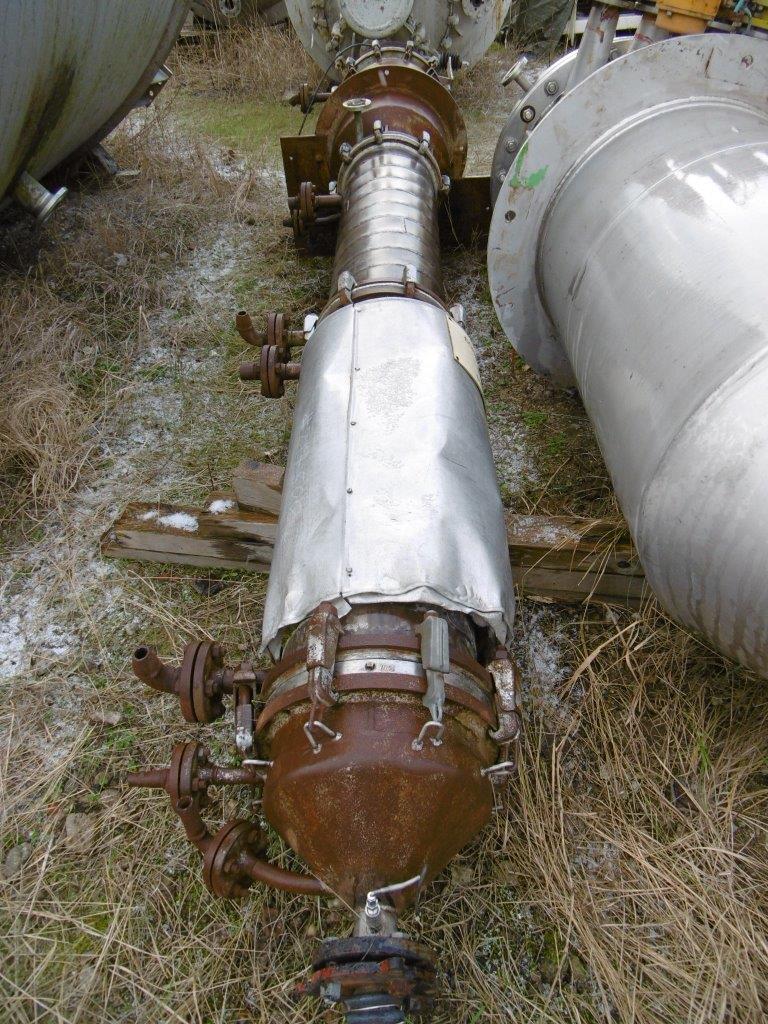

47.6 kg/h (105 lb/h) Stainless Steel Other Wiped/Thin Film Evaporator For Sale - IPP# 217500

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Model: NL-430

Condition: Used

Material: Stainless Steel Other

Evaporation Rate: 97.5 kg/h (215 lb/h)

Total Heat Transfer Surface Area: 4 m² (43.2 ft²)

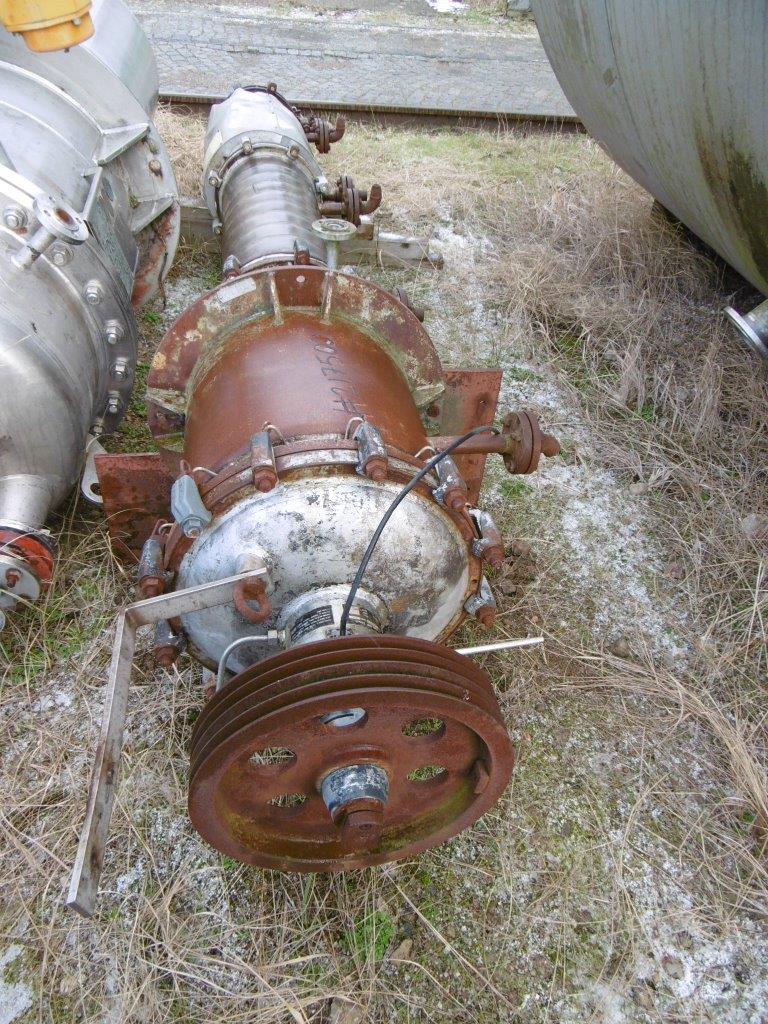

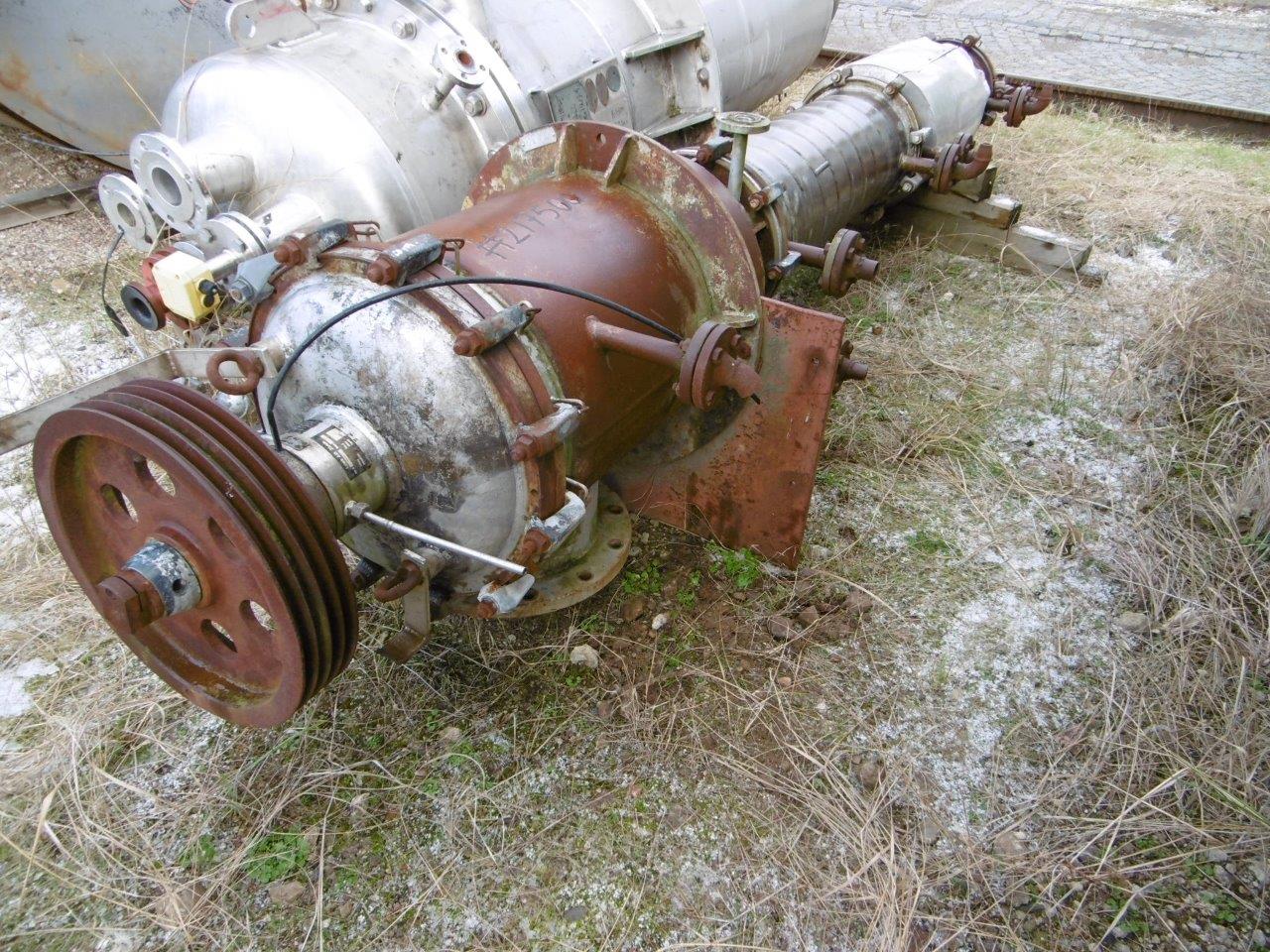

wiped film evaporator. Jacket rated for Rated for 150 psi at 381 degrees F. Stainless steel rotor belt driven by a pully and motor. Diameter of body section jacket 19.2". Shell wall thickness 0.393 thick, Jacket wall thickness is 0.275" thick. Empty weight 3,400 lbs.

Orientation: Vertical. Diameter: 488 mm (19.2 in). Height: 3,512 mm (138.3 in). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel Other

Diameter: 352.3 mm (13.9 in)

Height: 314.2 mm (12.4 in)

2.25" shaft, seal housing for a wiped film evaporator. Mechanical seal with cooling lines. 2.25" shaft with key way.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Model: LN0050

Condition: Used

Material: Stainless Steel Other

Evaporation Rate: 11.3 kg/h (25 lb/h)

Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)

24 psig @ 482 degrees F in the jacket, All product wetted parts stainless steel. Mechanical seal on Rotor. Rotor driven by a 3 hp 1800 rpm 3 phase 60 cycle 230/460 volt. Entire system mounted in CS framework, with approximately 50 square foot condensor, 8" x 12" receiever under evaproator, Wilden diamphram pump, and demister.

Orientation: Vertical. Temperature: 250 °C (482 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Evaporation Rate: 204.1 kg/h (450 lb/h)

Total Heat Transfer Surface Area: 8.4 m² (90.5 ft²)

jacketed horizontal wiped film evaporator/crystalliser jacket 6 bar @ 100 degrees C (130 liter), 316Ti (1.4571) stainless steel wetted parts 323.9mm ID x 8450mm long x 7mm thick carbon steel jacket 368mm diameter x 8410mm long x 4mm thick with continuous internal flow spiral 200mm pitch, jacket with expansion bellows, 316Ti (1.4571) stainless steel 88.9mm OD internal scraper rotor, rotor shaft is in 2 pieces which join togeter via a key way, each shaft is fitted with welded lugs to carry scrapers attached to stainless steel springs, the scrappers are made from 25mm x 7mm 'Hartgewebe F24' 546mm long and are arranged with 4 scrapers at 90 degrees and 8 on each shaft, giving a total of 32 per shaft, packed gland on shaft, rotor with teflon bushes, shaft driven by 17.5 kw, 3/50/415 volt, 1420 rpm motor via gearbox, shaft speed 55 rpm

Orientation: Horizontal. Diameter: 323 mm (12.7 in). Height: 8,450 mm (332.7 in). Pressure: 6 bar (87 psi). Temperature: 100 °C (212 °F).
