duplex stainless, solid bowl decanter with back drive, 2-phase separation 360 degree solids outlet Manufacturer specified flow rate in GPM is 200 to 400 Designed for 81 lbs/Cubic foot specific gravity of material. Main rotating assembly components are centrifugally cast Duplex Stainless Steel type 4462 Main drive is a 125 HP 3/60/230/460 volt and hydraulic power pack Scroll is driven by a 40 HP 3/60/230/460 volt TEFC motor. (2) Liquid discharge flanges, 1060 mm wide x 309.45 mm each. Solids discharge flange is 1060mm wide x 460 mm. Overall Dimensions: 5700.68 mm Long X 1406.6 mm wide x 1561.20 mm high. Rotating Assembly 8,054 lbs; complete centrifuge with filling (1.0 S.G.) 18,100 lbs Manufactures states the flight pitch is 9-10 degrees.
Type: Centrifuge-Solid Bowl-Decanter
Manufacturer: Alfa Laval
Model: P1600 Super-D-Canter
Condition: Used
Material: Stainless Steel Other
Bowl Diameter: 250 mm (9.8 in)
Bowl Length: 780 mm (30.7 in)
duplex stainless steel 80 mm slope sludge density max filling volume 33,4 kg Motor: IP 55 two-stage planetary drive Single thread screw construction material: bowl and hubs 1.4462 stainless steel, screw hub and flanks construction material: bowl and hubs 1.4462 stainless steel, screw hub and flanks 1.4462/1.4571 stainless steel, casing 1.4571/ 1.4401 stainless steel, carbon steel frame,
Main Motor Horsepower: 11 kW (14.8 HP). Bowl Max RPM: 4,700.
Type: Centrifuge-Solid Bowl-Decanter
Manufacturer: Alfa Laval
Model: CHNX-414-31G
Condition: Used
Material: Stainless Steel Other
Bowl Diameter: 353 mm (13.9 in)
Bowl Length: 860 mm (33.9 in)
Main Motor Horsepower: 22 kW (29.5 HP). Bowl Max RPM: 4,000.
Type: Centrifuge-Solid Bowl-Decanter
Manufacturer: Westfalia
Model: SDA 230
Condition: Used
Material: Stainless Steel Other
Bowl Diameter: 220 mm (8.7 in)
Bowl Length: 600 mm (23.6 in)
Decanter Centrifuge Gas Tight housing Worm lengh is 600 mm x 220/125mm diameter With spare rotating assembly, worm, and gear box
Bowl Max RPM: 5,100. Gas Tight: Yes.

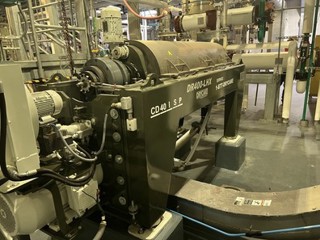

Type: Centrifuge-Solid Bowl-Decanter
Manufacturer: Decanter
Model: CD 40 I SP
Condition: Used
Material: Stainless Steel Other
Bowl Diameter: 381 mm (15 in)
Bowl Length: 1,700 mm (67 in)
Designed for food grade and acceptable for use in Class 1 Div 2 group D areas and is fume tightSP. Rated for 10,600 lbs./hr. of feed, 9100 lbs./hr. of centrate and 1500 lbs./hr.cake. Rated for 80 degrees F.Bowl has special abrasion protection on the feed and conical section of the machine.Includes vibration sensor. Control panel includes PLC for automated dewatering. Only 30 hours of operation!
Main Motor Horsepower: 22.4 kW (30 HP). Bowl Max RPM: 4,000. Back Drive: Yes. Bowl Type: Duplex bowl and scroll.
