Stainless Steel Other Decanter CD 40 I SP Centrifuge-Solid Bowl-Decanter - IPP# 238371

Type: Centrifuge-Solid Bowl-Decanter

Manufacturer: Alfa Laval

Model: P1600 Super-D-Canter

Condition: Used

Material: Stainless Steel Other

Bowl Diameter: 250 mm (9.8 in)

Bowl Length: 780 mm (30.7 in)

duplex stainless steel 80 mm slope sludge density max filling volume 33,4 kg Motor: IP 55 two-stage planetary drive Single thread screw construction material: bowl and hubs 1.4462 stainless steel, screw hub and flanks construction material: bowl and hubs 1.4462 stainless steel, screw hub and flanks 1.4462/1.4571 stainless steel, casing 1.4571/ 1.4401 stainless steel, carbon steel frame,

Main Motor Horsepower: 11 kW (14.8 HP). Bowl Max RPM: 4,700.

Type: Centrifuge-Solid Bowl-Decanter

Manufacturer: Alfa Laval

Model: CHNX-414-31G

Condition: Used

Material: Stainless Steel Other

Bowl Diameter: 353 mm (13.9 in)

Bowl Length: 860 mm (33.9 in)

• 353/202mm diameter, 2-phase solid bowl decanter centrifuge.
• Working speed 3250 rpm minimum feed temperature 0 degrees C (32 degrees F),maximum feed temperature 100 degrees C (212 degrees F)stainless steel hinged top cover, screw plated with Wolfram-Carbide plates
• CE confirm, with tools for bowl and basket services.

Main Motor Horsepower: 22 kW (29.5 HP). Bowl Max RPM: 4,000.

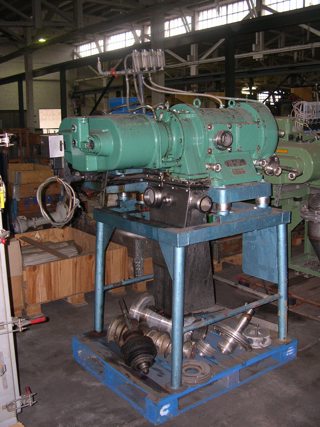

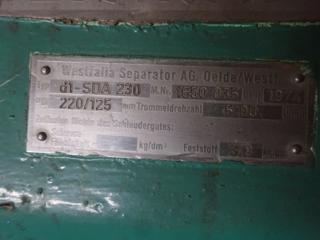

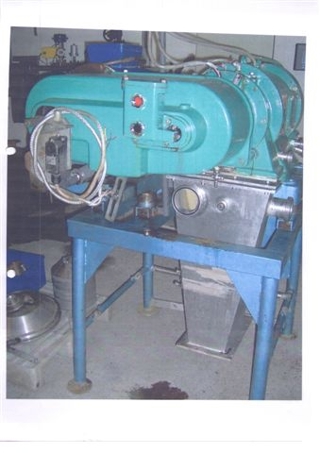

Type: Centrifuge-Solid Bowl-Decanter

Manufacturer: Westfalia

Model: SDA 230

Condition: Used

Material: Stainless Steel Other

Bowl Diameter: 220 mm (8.7 in)

Bowl Length: 600 mm (23.6 in)

Decanter Centrifuge Gas Tight housing Worm lengh is 600 mm x 220/125mm diameter With spare rotating assembly, worm, and gear box

Bowl Max RPM: 5,100. Gas Tight: Yes.

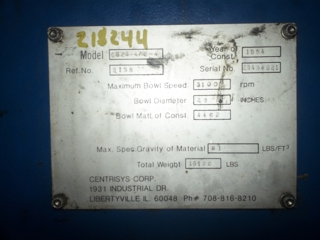

Type: Centrifuge-Solid Bowl-Decanter

Manufacturer: Centrisys

Model: CS26-4/Z62-4

Condition: Used

Material: Stainless Steel Other

Bowl Diameter: 660 mm (26 in)

Bowl Length: 2,850 mm (112 in)

duplex stainless, solid bowl decanter with back drive, 2-phase separation 360 degree solids outlet Manufacturer specified flow rate in GPM is 200 to 400 Designed for 81 lbs/Cubic foot specific gravity of material. Main rotating assembly components are centrifugally cast Duplex Stainless Steel type 4462 Main drive is a 125 HP 3/60/230/460 volt and hydraulic power pack Scroll is driven by a 40 HP 3/60/230/460 volt TEFC motor. (2) Liquid discharge flanges, 1060 mm wide x 309.45 mm each. Solids discharge flange is 1060mm wide x 460 mm. Overall Dimensions: 5700.68 mm Long X 1406.6 mm wide x 1561.20 mm high. Rotating Assembly 8,054 lbs; complete centrifuge with filling (1.0 S.G.) 18,100 lbs Manufactures states the flight pitch is 9-10 degrees.

Main Motor Horsepower: 93.2 kW (125 HP). Bowl Max RPM: 3,100.
