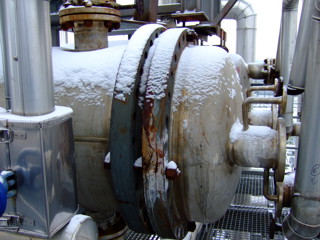

120 m² (1,292 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale - IPP# 219606

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 180 m² (1,938 ft²)

Orientation: Horizontal

(2) 316Ti (1.4571) stainless steel dished heads, 2-pass

Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Stainless Steel Austenitic. Length: 4,877 mm (192 in). Tube Number: 654. Tube Diameter: 25 mm (0.98 in). Tube Length: 3,996 mm (157.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Head openings tubeside: 1-head with 2-200mm, 1-head with 2-19mm (screw fitting) - Head openings shell side: 1-800mm, 1-500mm, 2-100mm, 1-7mm (screw fitting).

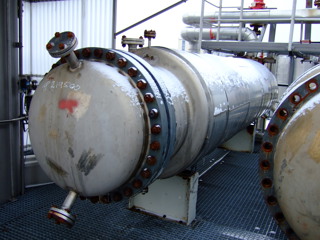

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 153 m² (1,647 ft²)

Orientation: Horizontal

high pressure heat exchanger, Capacity (tubeside): 1060 liters Capacity (shell side): 1535 liters 2-pass Shell thickness: 12mm thick Expansion joint: Yes, in the middle of the shell (2) 316Ti (1.4571) stainless steel dished heads.

Shell Pressure: 28 bar (406.1 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 28 bar (406.1 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel Austenitic. Length: 5,850 mm (230.3 in). Tube Number: 392. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,996 mm (196.7 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Head openings: 2-50mm, 2-150mm, 2-15mm (1 head with 2-50mm, 1 head with 2-10mm).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 153 m² (1,647 ft²)

Orientation: Horizontal

Capacity (tubeside): 1060 liters Capacity (shell side): 1535 liters 2-pass

• Expansion joint: Yes
• Shell thickness: 12mm
• Dished heads: (2) 316Ti stainless steel

Shell Pressure: 28 bar (406.1 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 28 bar (406.1 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel Austenitic. Length: 5,850 mm (230.3 in). Tube Number: 392. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,996 mm (196.7 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell openings: 2-50mm, 2-150 mm, 2-15mm - Head openings: (1) head with 2-50mm, (1) head with 2-100 mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K.Ley

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

• Heads: Without heads
• Pressure tubeside: -1/6 bar @ 300 deg C (203 liter)
• Pressure shell: -1/6 bar @ 300 deg C (310 liter)
• with expansion joint

Shell Pressure: 6 bar (87 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,496 mm (98.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell openings: 1-250mm, 2-80mm, 1-15mm.
