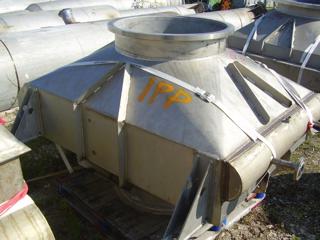

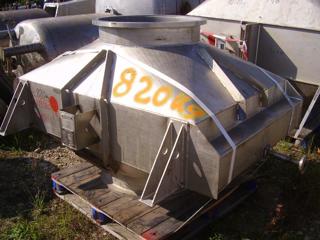

tube chamber 1760mm wide x 1224mm long x 360mm deep with welded on top and bottom cone section
Type: Heat Exchanger
Subtype: Shell and Tube

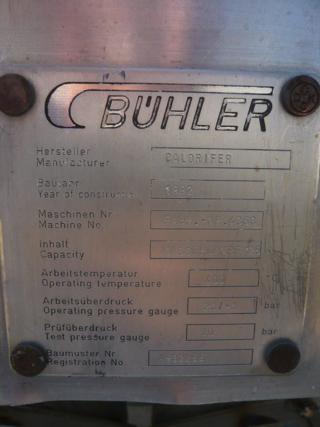

Manufacturer: Buhler AG
Model: OTW-500-A-32280
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 38 m² (409 ft²)
Shell Material: Stainless Steel 321
tube chamber 1760mm wide x 1224mm long x 360mm deep with welded on top and bottom cone section
Tube Pressure: 23 bar (333.6 psi). Tube Temperature: 400 °C (752 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Tube Number: 540. Tube Diameter: 14 mm (0.55 in). Tube Length: 1,650 mm (65 in). Nozzle Schedule: - Tube openings: 2-25mm, 1-15mm, 1 x cone with 1-700mm, 1 x cone with 1-700mm. Capacity: 123 L (32.5 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 5.6 m² (60 ft²)
Orientation: Horizontal
Repair company: Carbide Shell and Tube (Ponce, PR)3 Shell side has a 4" inlet and a 2" outlet. Tube side has 2" inlets and outlets.
Shell Material: Carbon Steel. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 23.9 °C (75 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 1,800 mm (70 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: SMS Butzbach/Germany
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 58 m² (624 ft²)
Orientation: Vertical
(1) 321 (1.4541) stainless steel head
Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,100 mm (239.8 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: SMS Butzbach/Germany
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 137 m² (1,450 ft²)
Orientation: Vertical
carbon steel heads pressure tubeside 6 bar @ 120 deg C (755 liter), shell vacuum/0.5 @ 120 deg C (1890 liter) (1) 321 (1.4541) stainless steel dished head
Shell Pressure: 0.5 bar (7.3 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,400 mm (252 in). Tube Type: U-Tube. Tube Number: 184. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side: dished head with 2-100mm, shell: 1-400mm, 1-150mm, 1-32mm.
