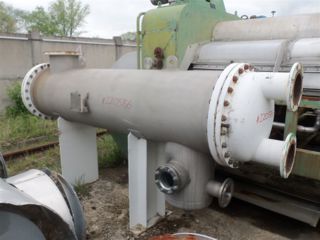

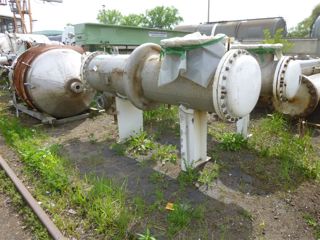

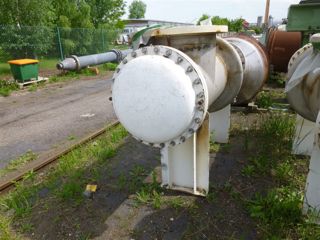

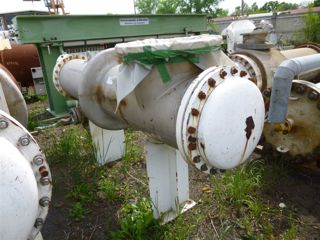

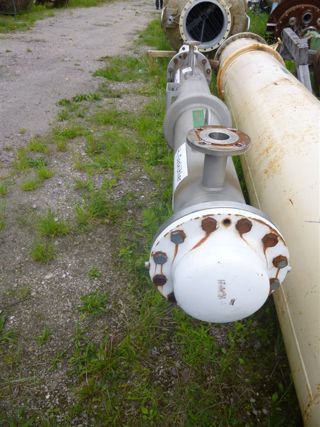

111 m² (1,195 ft²) Stainless Steel Austentic Shell and Tube Heat Exchanger For Sale IPP# 220583

Condition:

Used

Material:

Stainless Steel Austentic

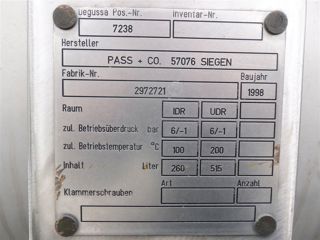

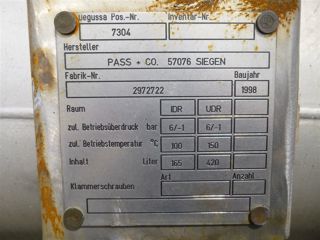

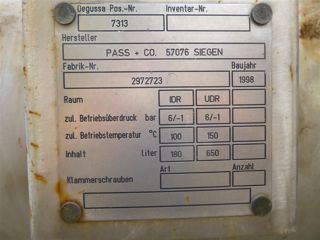

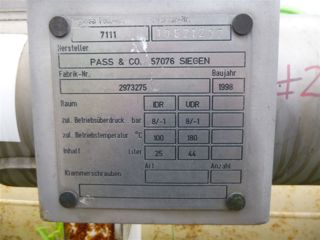

Manufacturer:

Pass & Co

Heat Transfer Surface Area:

111 m² (1,195 ft²)

Orientation:

Horizontal

Shell Pressure:

6 bar (87 psi)

Shell Temperature:

200 °C (392 °F)

Shell Material:

Stainless Steel Austentic

Tube Pressure:

6 bar (87 psi)

Tube Temperature:

100 °C (212 °F)

Tube Material:

Stainless Steel Austentic

Vacuum:

Yes

Shell Diameter:

1,000 mm (39.4 in)

Head Material:

Carbon Steel

Length:

3,450 mm (135.8 in)

Tube Number:

616

Tube Diameter:

25 mm (0.98 in)

Tube Length:

2,500 mm (98.4 in)

Tube Thickness:

2 mm (0.08 in)

Nozzle Schedule:

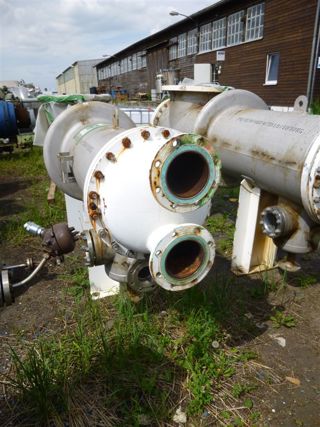

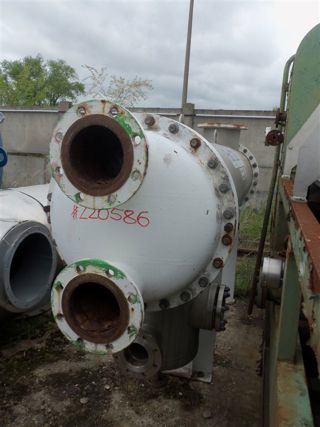

opening tube side: (1) head with 2-200mm, (1) head with no openings, shell side: 1-400mm, 2-100mm, 2-25mm,

Additional Info:

multi-pass tubeside, 316 stainless steel (1.4571) shell, (2) carbon steel dished heads, built to TUV

IPP# 220583, 111 m² (1,195 ft²) Stainless Steel Austentic Shell and Tube Heat Exchanger For Sale
