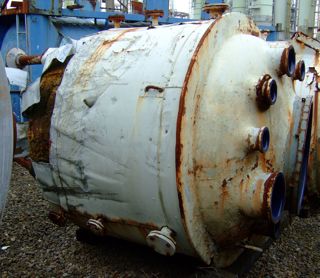

IPP# 221608 13,330 L (3,521 gallons) Glasslined Batch-Type Agitated Reactor For Sale

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

DeDietrich

Condition:

Used

Material:

Glasslined

Capacity (Design):

13,330 L (3,521 gallons)

Pressure Vessel

Internal Pressure:

1.1 bar (16 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

200 °C (392 °F)

Jacket/Internal Coil

Jacket Pressure:

8.7 bar (126 psi)

Jacket Temperature:

200 °C (392 °F)

Jacket Material of Construction:

Carbon Steel

Agitation System

Agitation:

Yes

Agitation Seal Type:

Mechanical

Agitator Details:

- Agitator: 3-finger retreat curved agitator, - Agitator speed: 20-120 rpm

Motor Power:

15 kW (20.1 HP)

Baffle Type:

Finger Baffle

Dimensions

Diameter:

2,400 mm (94.5 in)

Straight Side Length:

2,296 mm (90.4 in)

Heads

Top Head Type:

Dish

Bottom Head Type:

Dish

Other Specifications

Manway:

Yes

Support Type:

Lugs

Inlets & Outlets

Nozzle Schedule:

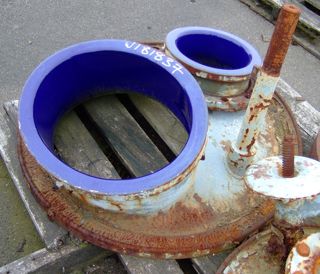

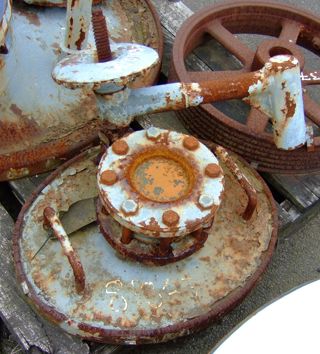

openings top: 1-20" manway, 2-6", 4-3", straight side: 6-4", jacket: 4-2", bottom: 1-4", 1-2" (jacket),

Glasslined DeDietrich CE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: De Dietrich

Model: CE

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 7,565 L (1,998 gallons)

Internal Pressure: 6 bar (87 psi)

Rated internal -1/6 bar @-10 to 250 degrees C; jacket -1/6 bar @-10/+250Degrees C
500 mm manway. With special agitator loop type.

Internal Full Vacuum: Yes. Internal Temperature: 250 °C (482 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 250 °C (482 °F). Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,840 mm (112 in).

Glasslined DeDietrich CE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 7,585 L (2,004 gallons)

Diameter: 2,000 mm (78.7 in)

driven by a18,5 kW Hansen 3/50Hz/11/380V/36A/1460rpm motor.

Straight Side Length: 2,840 mm (112 in).

Glasslined DeDietrich CE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: De Dietrich

Model: CE

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 7,590 L (2,005 gallons)

Internal Pressure: 6 bar (87 psi)

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,040 mm (80.3 in).
