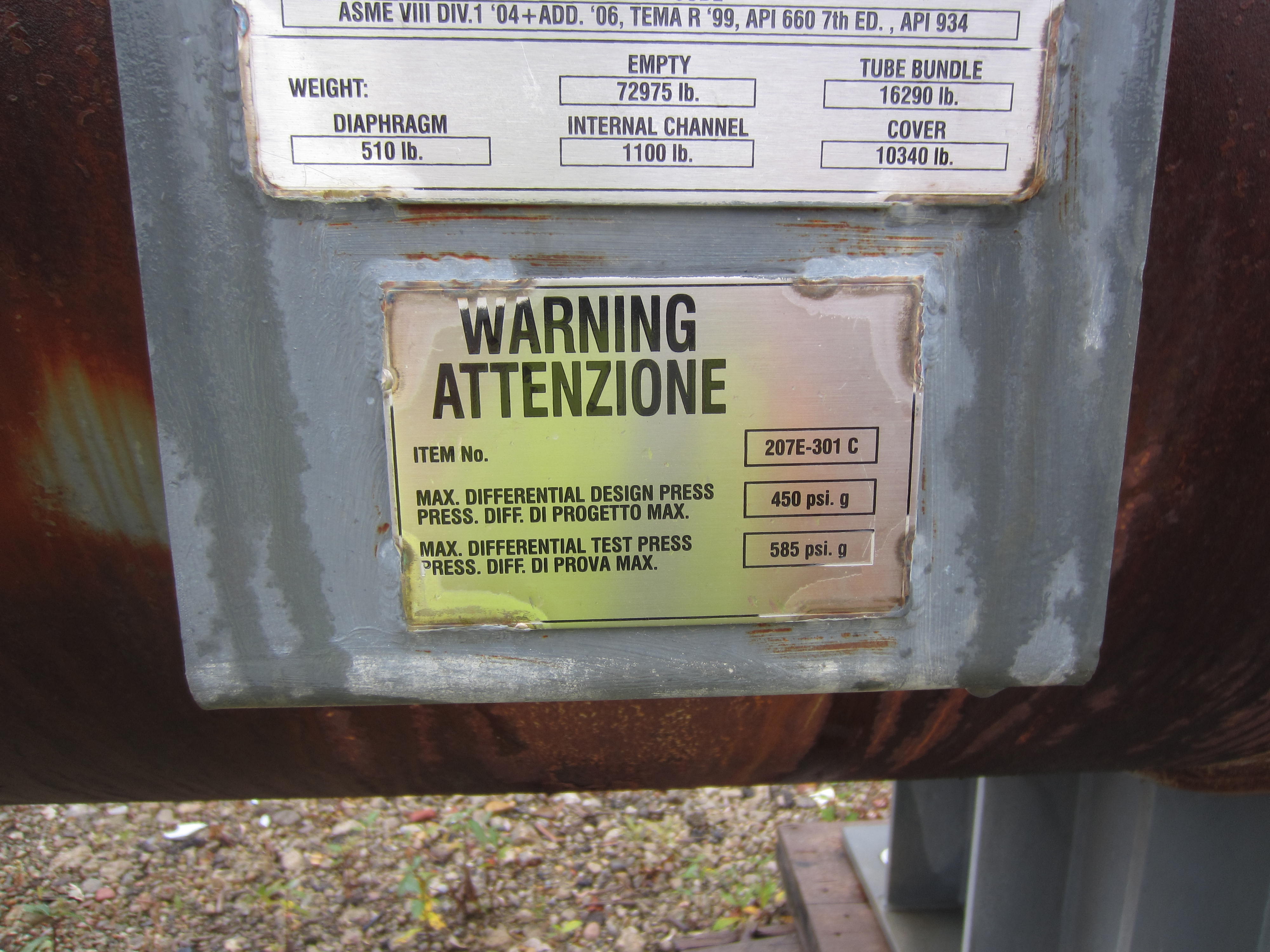

Unused Stainless Steel 321 Clad Shell and Tube Heat Exchanger - IPP# 222148

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Luigi-Resta SpA-C (Italy)

Model: DEU

Condition: Unused

Material: Stainless Steel 321

Clad: Yes

Heat Transfer Surface Area: 285.6 m² (3,075 ft²)

Orientation: Horizontal

321SS U-tubes (SA213 TP321), 321 SS tube sheets, SS Clad channel head (SA387 Gr.22 + CRO TP347), SS Clad shell (SA387 Gr.22 + CRO TP347) TEMA type DEU Canadian Registration Number U8421.2 Shell rated for FV/2163.5 psi @ -20 to 775 degrees F; tubes rated for FV/2006 psi at -20 to 840 degrees F. (approx 40' total length) 321SS tube sheet (SA336 F321), 40.70" diameter x 5.11" thick with (600) tube holes One Channel head, CS with flat bolted cover, CS construction,3'8" long

Shell Pressure: 149.2 bar (2,164 psi). Shell Temperature: 412.8 °C (775 °F). Shell Material: Carbon Steel. Tube Pressure: 138.3 bar (2,006 psi). Tube Temperature: 448.9 °C (840 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 990.6 mm (39 in). Head Material: Carbon Steel. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 300. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Openings include: Shell side (2)10" NPS, (1) 2"; Tube side (2) 12", (1) 2" in the channel Head.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Luigi-Resta SpA-C (Italy)

Model: DEU

Condition: Unused

Material: Stainless Steel 321

Heat Transfer Surface Area: 300.9 m² (3,239 ft²)

Orientation: Horizontal

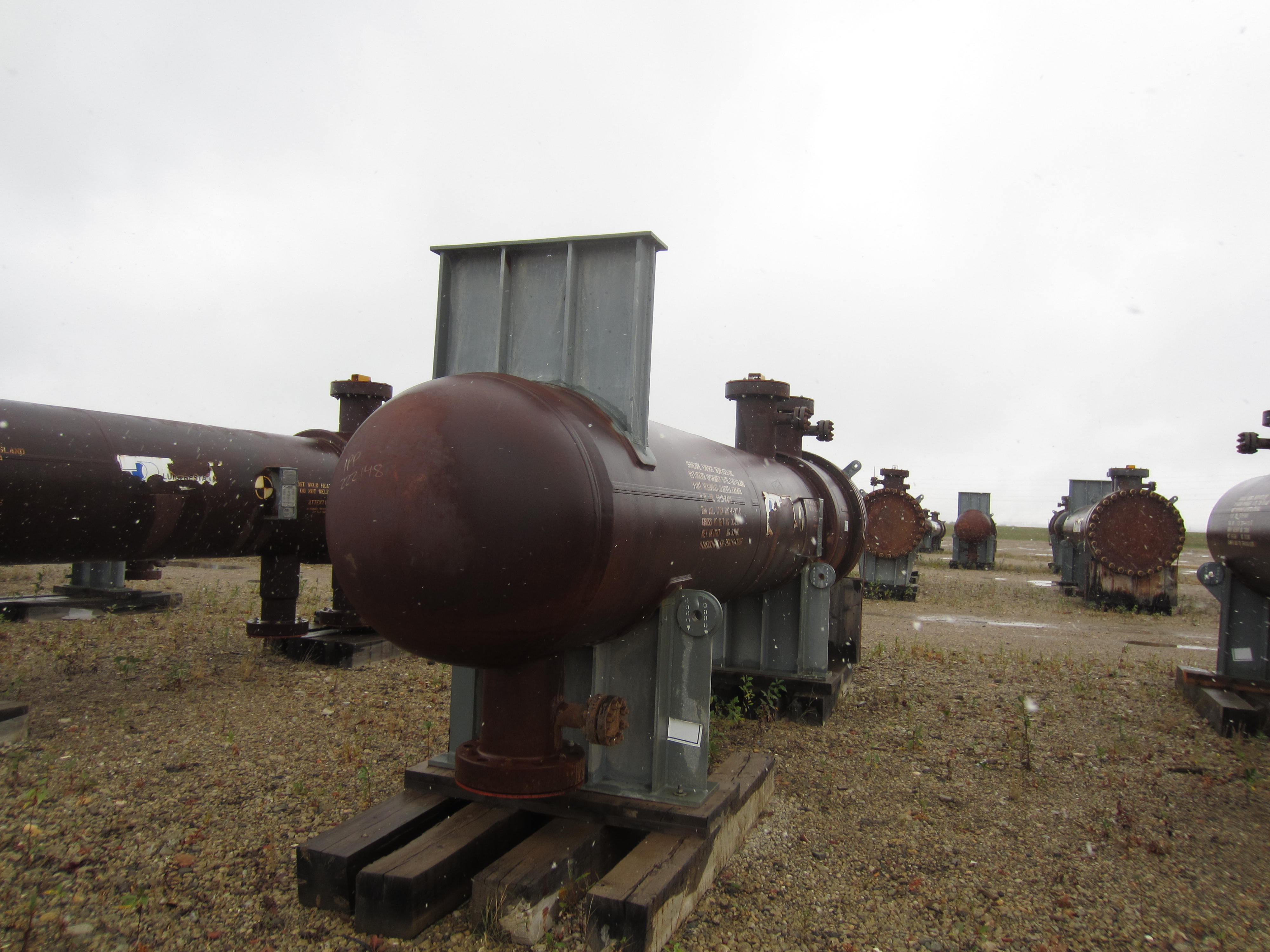

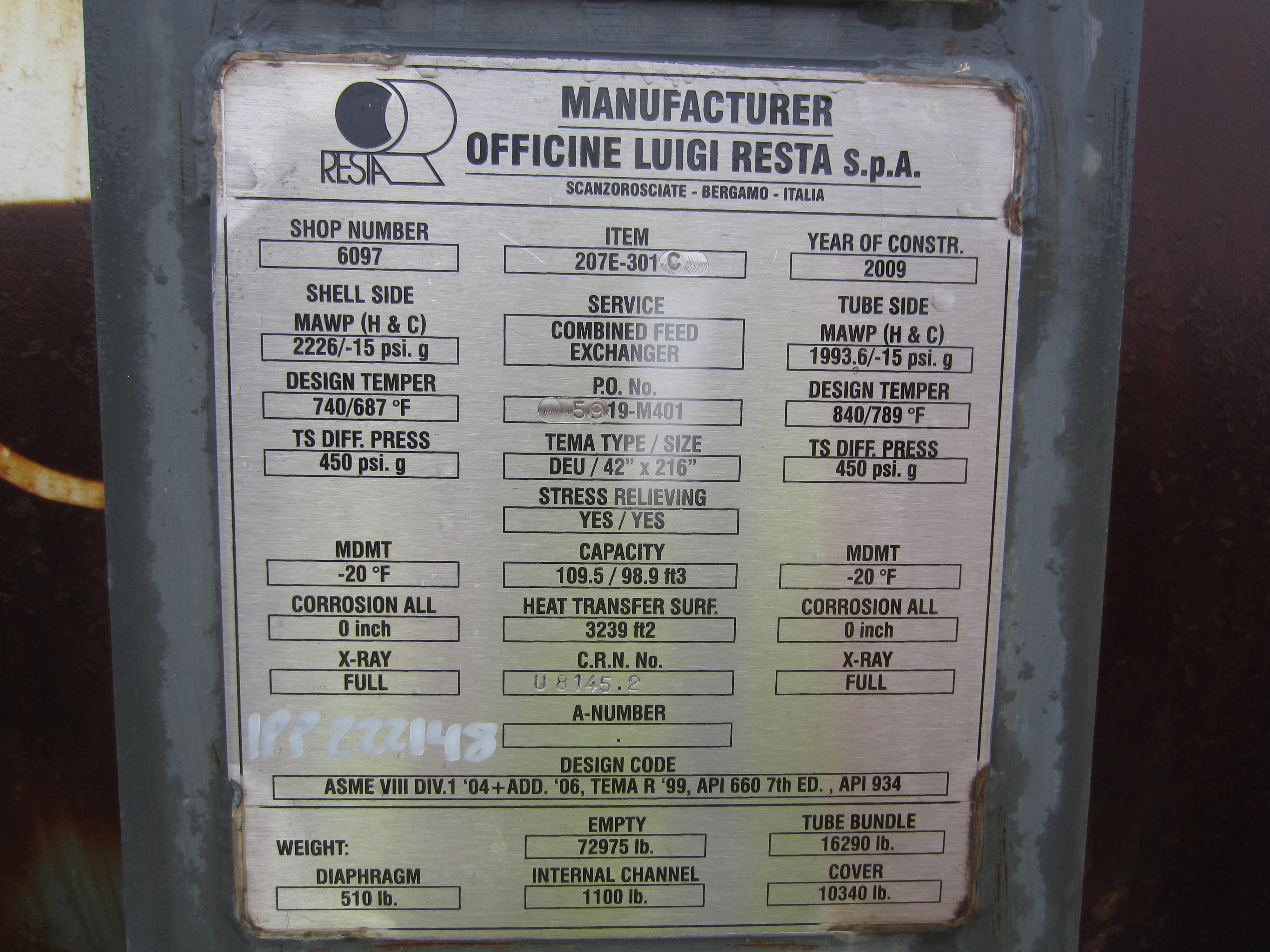

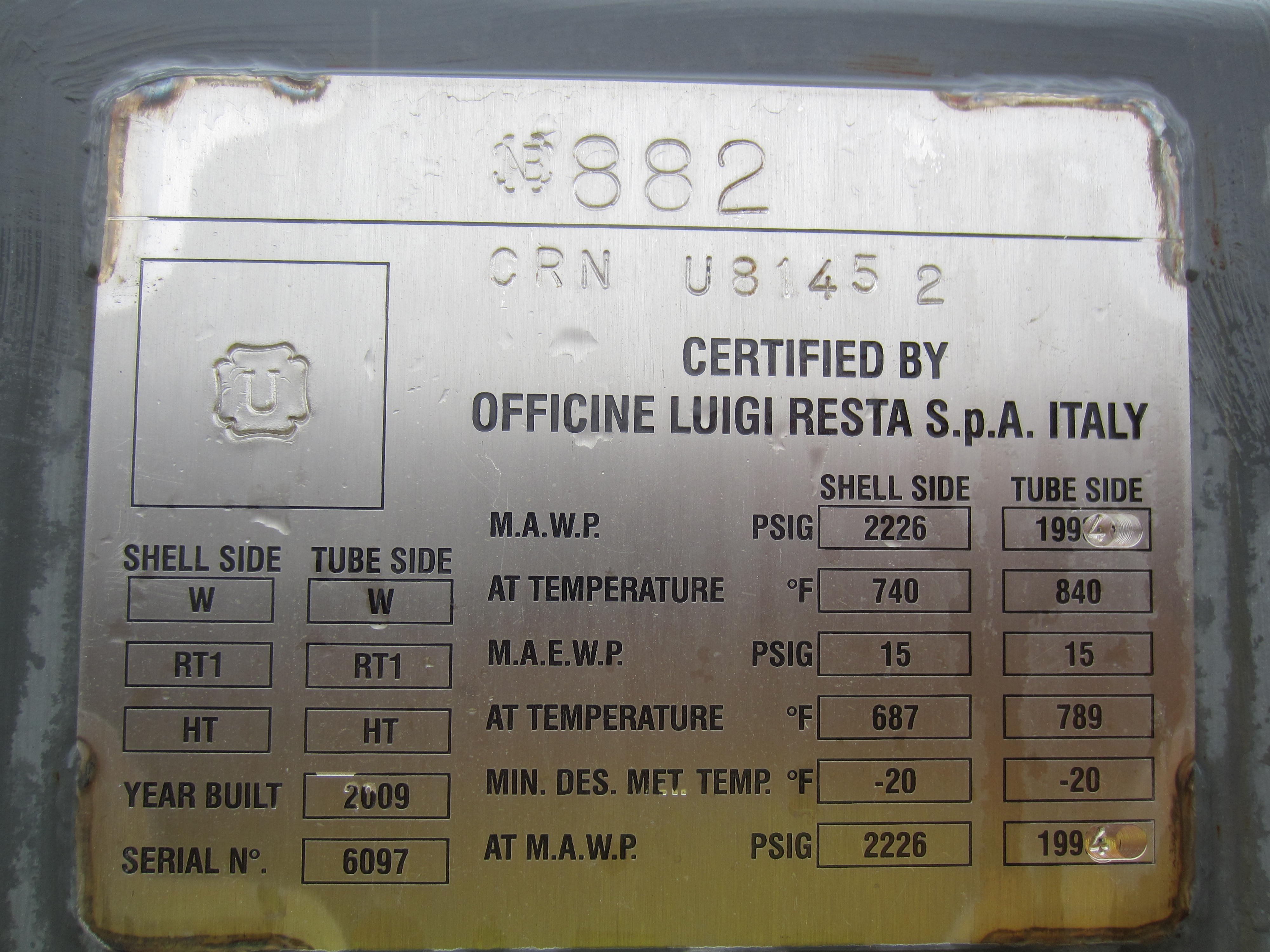

321 SS U-Tube (SA213 TP321), 321SS tube sheet (SA336 F321), SS Clad heads (SA387 Cr.22 + CRO TP347), SS Clad shell, horizontal heat exchanger (SA387 Cr.22 + CRO TP347) TEMA type DEU size 42 x 216 Canada Registration Number U8145.2 Shell rated for FV/2226 @ -20 to 740 degrees F; tubes rated for FV/1994 @ -20 to 840 degrees F. 321SS tube sheet, 43.7" diameter x 5.70" thick (with 706 holes for tubes).
SS Clad shell is 42" diameter x 20'10.23" straight side with one welded dished head.
SS Clad Channel head is 2' 11.31" long with flat bolted cover

Shell Pressure: 153.5 bar (2,226 psi). Shell Temperature: 393.3 °C (740 °F). Shell Material: Stainless Steel Other. Tube Pressure: 137.5 bar (1,994 psi). Tube Temperature: 448.9 °C (840 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Stainless Steel Other. Length: 5,486 mm (216 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 353. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,486 mm (216 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Openings Include: shell side (2) 10" NPS, (1) 2"; tube side (2) 12" NPS (1) 2" in channel head.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Luigi-Resta SpA-C (Italy)

Model: DEU

Condition: Unused

Material: Stainless Steel 321

Clad: Yes

Heat Transfer Surface Area: 285.6 m² (3,075 ft²)

Orientation: Horizontal

321SS U-tubes (SA213 TP321), 321 SS tube sheets, SS Clad channel head (SA387 Cr.22 + CRO TP347), SS Clad shell (SA387 Cr.22 + CRO TP347) TEMA type DEU Size 39" x 240" Canadian Registration Number U8421.2 Shell rated for FV/2182 psi @ -20 to 775 degrees F; tubes rated for FV/2006 psi at -20 to 840 degrees F 321SS tube sheet (SA336 F321), 40.70" diameter x 5.11" thick with (600) tube holes. One Channel head, SS Clad with flat bolted cover, CS construction,3'8" long

Shell Pressure: 150.4 bar (2,182 psi). Shell Temperature: 412.8 °C (775 °F). Shell Material: Stainless Steel Other. Tube Pressure: 138.3 bar (2,006 psi). Tube Temperature: 448.9 °C (840 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 990.6 mm (39 in). Head Material: Stainless Steel Other. Length: 6,096 mm (240 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 300. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Openings include: Shell side (2)10" NPS, (1) 2"; Tube side (2) 12", (1) 2" in the channel Head.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 5.6 m² (60 ft²)

Orientation: Horizontal

Repair company: Carbide Shell and Tube (Ponce, PR)3 Shell side has a 4" inlet and a 2" outlet. Tube side has 2" inlets and outlets.

Shell Material: Carbon Steel. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 23.9 °C (75 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 1,778 mm (70 in).
