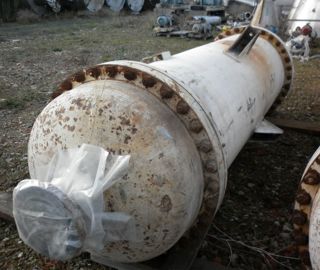

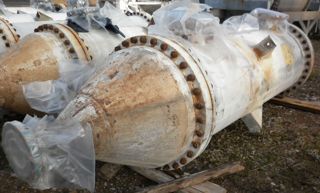

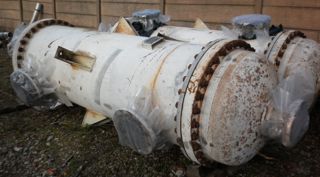

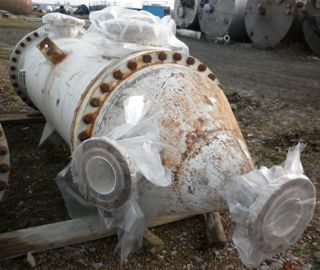

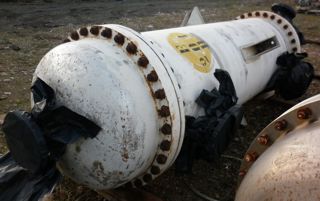

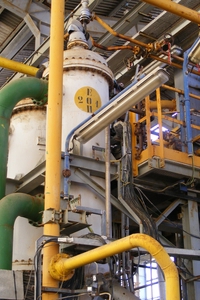

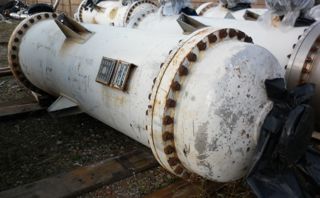

Stainless Steel 316 Clad Mechanica Sarda BEM Shell and Tube Heat Exchanger - IPP# 222661

Type: Heat Exchanger

Subtype: Shell and Tube

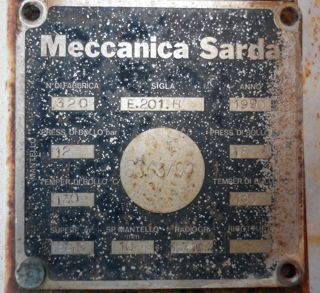

Manufacturer: Meccanica Sardia

Model: BEM

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 98.5 m² (1,060 ft²)

Orientation: Vertical

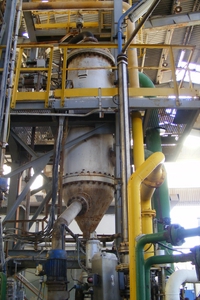

• Type: Vertical condenser

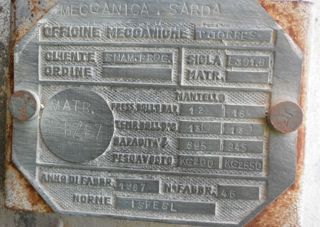

• pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter; shell rated 12 bar @ 130 degrees C, 895 liter.
• 316LSS clad Tube sheets
• Baffles: 7 304SS baffles in the shell

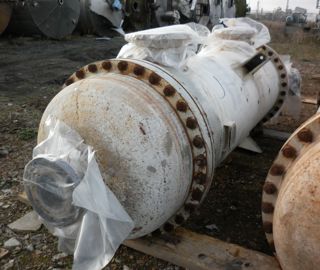

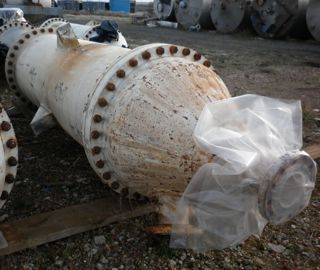

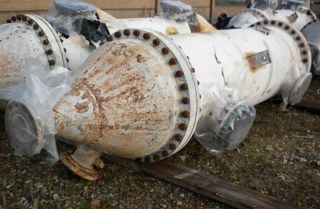

• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Weight (empty): 4890 kg 4145 mm overall length.

Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,468 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,468 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".
