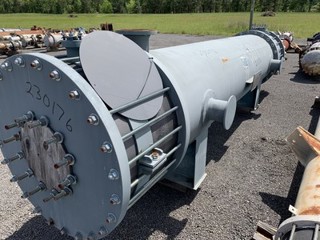

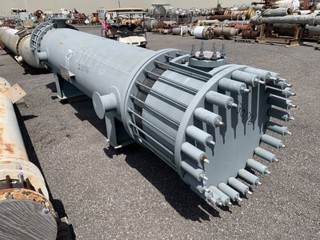

Hastelloy - C276 Mersen BEM 20-1-30 Shell and Tube Heat Exchanger - IPP# 233019

Type: Heat Exchanger

Subtype: Shell and Tube

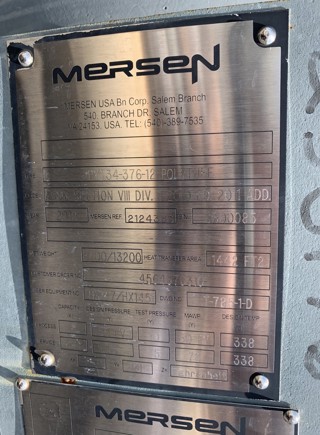

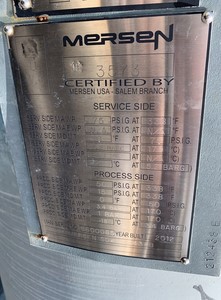

Manufacturer: Mersen

Model: PYT34-376-12

Condition: Unused

Material: Graphite

Heat Transfer Surface Area: 134 m² (1,442 ft²)

Shell Pressure: 5.2 bar (75 psi)

40" diameter x 12' horizontal.

Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Tubesheet Material: Graphite. Vacuum: Yes. Shell Diameter: 40 mm (1.57 in). Head Material: Carbon Steel. Length: 3,658 mm (144 in). Tube Number: 376. Tube Diameter: 22.1 mm (0.87 in). Tube Thickness: 31.8 mm (1.25 in). Nozzle Schedule: Nozzle Schd:(3) 6" .

Type: Heat Exchanger

Subtype: Shell and Tube

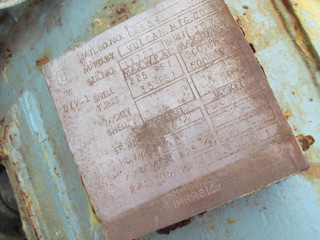

Manufacturer: Vulcan Manufacturing Company

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 74 m² (796 ft²)

Orientation: Horizontal

23" diameter x 1.25" thick. (2) bolted dished heads

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 2.4 bar (35 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 584.2 mm (23 in). Head Material: Hastelloy - C276. Length: 4,674 mm (184 in). Tube-side Passes: 1. Tube Number: 155. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 4,775 mm (188 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Shell - (1) 4", (1) 2"; One Head (1) 8", (1) 2"; Other head - (1)16", (1) 1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning & Lewis

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 32.5 m² (350 ft²)

Orientation: Horizontal

• Duty: 2,900,000 BTU/hr
• Tema Registration Number: 11-00-99763 2 pass design

Shell Pressure: 48.3 bar (700 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Stainless Steel 316. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 4,140 mm (163 in). Tube Type: Straight Tube. Tube Number: 155. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,353 mm (132 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell Side Inlet: 4' - Shell Side Outlet: 8' - Tube Side Inlet: 8' - Tube Side Outlet: 8'.

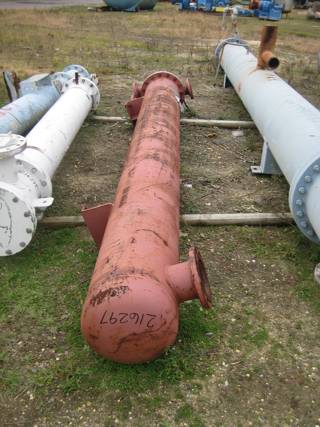

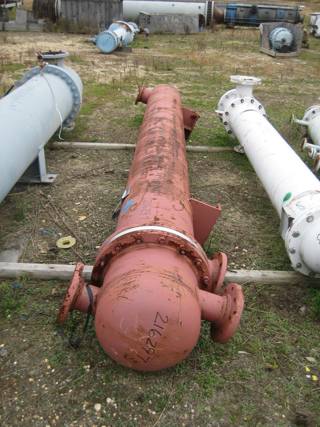

Type: Heat Exchanger

Subtype: Shell and Tube

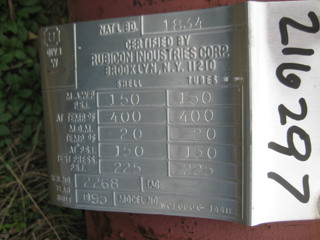

Manufacturer: Rubicon

Model: WC16BUG-144H

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 19.2 m² (207 ft²)

Orientation: Horizontal

0.750" diameter x 16 ga wall thickness 2 pass

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - Other. Head Material: Carbon Steel. Length: 4,140 mm (163 in). Tube Type: U-Tube. Tube Number: 88. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.63 mm (0.06 in). Nozzle Schedule: - Tube side nozzles: two 6" - Shell side nozzles: two 8".
