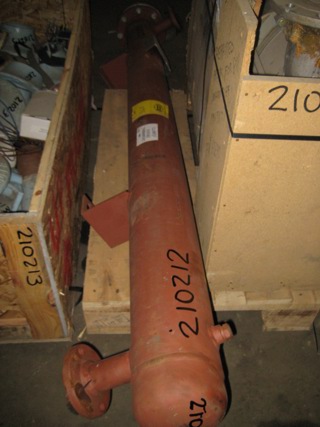

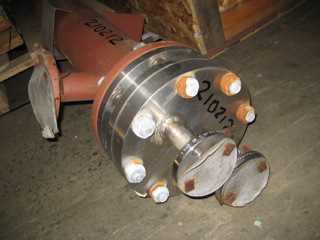

Hastelloy - C276 Rubicon WC16BUG-144H Shell and Tube Heat Exchanger - IPP# 216297

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Rubicon

Model: W86 BUG - 84HDTS

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 2.3 m² (25 ft²)

Orientation: Horizontal

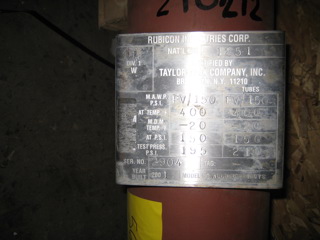

• Certification: Certified by Taylor Tank Co.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 165.1 mm (6.5 in). Head Material: Stainless Steel 316. Length: 2,400 mm (95 in). Tube Type: U-Tube. Tube Number: 9. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,200 mm (86 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Openings: Head - (2) 1"; Shell - (2) 2" and 2 0.75" drain/vents.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Rubicon

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 22.7 m² (244 ft²)

Orientation: Horizontal

Shell rated 75 psi @ 400 deg. F, tubes rated 150 psi @ -65 deg. F Tube length: 18' around the bend

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -53.9 °C (-65 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 304.8 mm (12 in). Head Material: Carbon Steel. Length: 3,650 mm (144 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 69. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 406.4 mm (16 in). Nozzle Schedule: openings: Tube side - 2-6", Shell side 1-6", 1-4"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Vulcan Manufacturing Company

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 74 m² (796 ft²)

Orientation: Horizontal

23" diameter x 1.25" thick. (2) bolted dished heads

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 2.4 bar (35 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 584 mm (23 in). Head Material: Hastelloy - C276. Length: 4,650 mm (184 in). Tube-side Passes: 1. Tube Number: 155. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 4,800 mm (188 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Shell - (1) 4", (1) 2"; One Head (1) 8", (1) 2"; Other head - (1)16", (1) 1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning & Lewis

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 32.5 m² (350 ft²)

Orientation: Horizontal

• Duty: 2,900,000 BTU/hr
• Tema Registration Number: 11-00-99763 2 pass design

Shell Pressure: 48.3 bar (700 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Stainless Steel 316. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Head Material: Stainless Steel 316L. Length: 4,150 mm (163 in). Tube Type: Straight Tube. Tube Number: 155. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,350 mm (132 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell Side Inlet: 4' - Shell Side Outlet: 8' - Tube Side Inlet: 8' - Tube Side Outlet: 8'.
