Unused Shell and Tube Heat Exchanger - IPP# 233953

Type:

Heat Exchanger

Subtype:

Shell and Tube

Manufacturer:

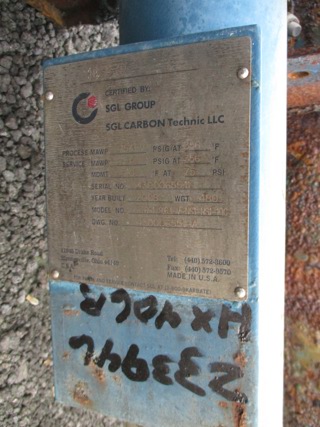

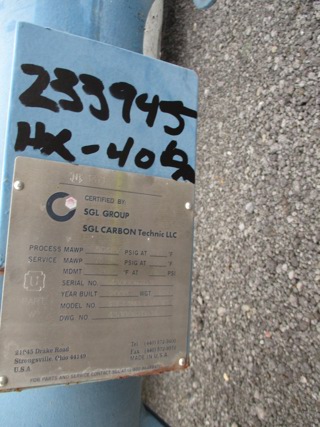

SGL Group, SGL Carbon Technic LLC

Model:

KS77 1-1-19917.1 H=NS1 NS1-8C

Condition:

Unused

Material:

Graphite

Heat Transfer Surface Area:

72.7 m² (782 ft²)

Orientation:

Horizontal

Shell Pressure:

5.2 bar (75 psi)

Shell Temperature:

180 °C (356 °F)

Shell Material:

Carbon Steel

Tube Pressure:

3.4 bar (50 psi)

Tube Temperature:

180 °C (356 °F)

Tube Material:

Graphite

Tubesheet Material:

Graphite

Vacuum:

Yes

Shell Diameter:

641.4 mm (25.3 in)

Head Material:

Carbon Steel

Length:

4,623 mm (182 in)

Tube Type:

Straight Tube

Tube Number:

199

Tube Diameter:

22.2 mm (0.88 in)

Tube Length:

3,658 mm (144 in)

Nozzle Schedule:

Three 3", two 6"

Additional Info:

Graphite H=NS1 NS1-8C.
