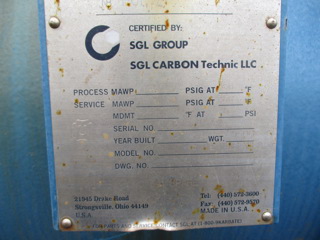

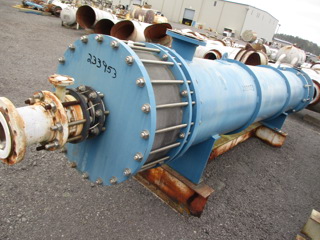

Graphite SGL Group, SGL Carbon Technic LLC ST8-1-136 Shell and Tube Heat Exchanger - IPP# 233945

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SGL Group, SGL Carbon Technic LLC

Model: KS77 1-1-19917.1 H=NS1 NS1-8C

Condition: Unused

Material: Graphite

Heat Transfer Surface Area: 72.7 m² (782 ft²)

Orientation: Horizontal

Graphite H=NS1 NS1-8C.

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Graphite. Tubesheet Material: Graphite. Vacuum: Yes. Shell Diameter: 641 mm (25.3 in). Head Material: Carbon Steel. Length: 4,600 mm (182 in). Tube Type: Straight Tube. Tube Number: 199. Tube Diameter: 22.2 mm (0.88 in). Tube Length: 3,650 mm (144 in). Nozzle Schedule: Three 3", two 6".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SGL Group, SGL Carbon Technic LLC

Model: ST6-1-9.61-V-NS1-NS1-10C

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.58 m² (17 ft²)

Shell Pressure: 5.2 bar (75 psi)

previously used as an intercondenser.

Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Graphite. Vacuum: Yes.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Carbone of America Corp

Model: K 110/35

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 5.2 bar (75 psi)

• Carbone Number: CO51974
• Dimensions: 22 3/8" x 22 3/4" x 23 3/4"
• Process Side Inlet: 6" 150 #
• Process Side Outlet: 4" 150 #
• Service Side Inlet: 2" 150 #
• Service Side Outlet: 2" 150 #

Shell Temperature: 182.2 °C (360 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 182.2 °C (360 °F). Shell-side Passes: 8. Tube-side Passes: 1.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: VICARB

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3 m² (32.3 ft²)

Orientation: Horizontal

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 3.5 bar (50.8 psi). Tube Temperature: 71.1 °C (160 °F). Tube Material: Graphite. Shell Diameter: 285 mm (11.2 in). Length: 2,300 mm (90.9 in). Tube Number: 24. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,800 mm (70.5 in). Tube Thickness: 12 mm (0.47 in). Nozzle Schedule: - Tube Side Openings: (1) 50 mm, (1) 100 mm - Shell Side Openings: (2) 100 mm, (1) 25 mm.
