Batch-Type Agitated Reactor 12,800 L (3,381 gallons) Stainless Steel Austenitic For Sale - IPP# 236068

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Enco

Model: TUV

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 3,630 L (958.9 gallons)

Internal Pressure: 2 bar (29 psi)

3200 liter TUV internal pressure -1/2 bar @ 110 degrees C (3630 liter), jacket 8 bar @ 220 degrees C (140 liter) Motor: 3 phase interrupted ribbon type agitator mechanical seal with lubricator pot 316Ti stainless steel (1.4571) half pipe coil jacket on straight side, 316Ti stainless steel (1.4571) standard jacket on bottom dish

Internal Temperature: 110 °C (230 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 220 °C (428 °F). Jacket Material of Construction: Stainless Steel Austenitic. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,321 mm (52 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

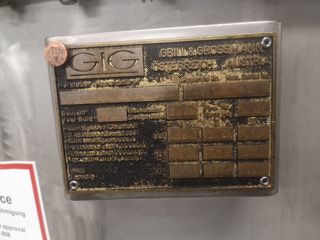

Manufacturer: GIG

Model: TUV

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 2,640 L (697.4 gallons)

Internal Full Vacuum: Yes

2000 liter TUV internal pressure vacuum @ 150 degrees C (2640 liter), jacket 12 bar @ 220 degrees C (85 liter) Ekato agitator drive

Internal Temperature: 150 °C (302 °F). Jacket Pressure: 12 bar (174 psi). Jacket Temperature: 220 °C (428 °F). Agitation: Yes. Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Albi

Model: TUV

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 6,000 L (1,585 gallons)

Internal Pressure: 3.2 bar (46.4 psi)

TUV internal pressure -1/3.2 bar @ -25/130 degrees C (6000 liter), jacket 6 bar @ -25/130 degrees C (200 liter) Motor phase : 3 400/690 volt (3) sets of intermig agitators on shaft internal baffles on sidewall Openings types: Mixture of standard flat flange fittings and Tri-clamp fittings Insulation: Fully insulated and cladded

Internal Temperature: 130 °C (266 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 130 °C (266 °F). Jacket Material of Construction: Stainless Steel 304. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,700 mm (66.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: K. Ley, Germany

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 630 L (166.4 gallons)

Internal Pressure: 6 bar (87 psi)

Internal pressure -1/6 bar @ -60/+200 degrees C; half pipe coil jacket -1/20 bar @ -60/+200 degrees C,

Jacket capacity: 20 liter

with a 3kW agitator drive, manufactured by MUT type N3GF8-3,0, serial number 02537, maximum speed 285 rpm,

Motor type 132S-4, 3~/50Hz/230-400V/1.445 rpm, counter flow agitator,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes.
