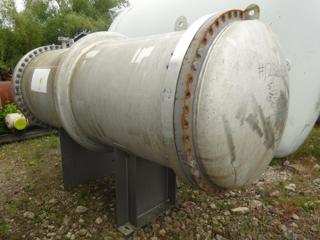

160 m² (1,722 ft²) Stainless Steel 321 Shell and Tube Heat Exchanger For Sale IPP# 236147

IPP# 236147, 160 m² (1,722 ft²) Stainless Steel 321 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel 321

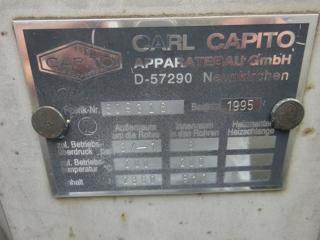

Manufacturer:

Carl Capito

Heat Transfer Surface Area:

160 m² (1,722 ft²)

Orientation:

Vertical

Shell Pressure:

65 bar (942.7 psi)

Shell Temperature:

300 °C (572 °F)

Shell Material:

Stainless Steel 321

Tube Pressure:

15 bar (217.6 psi)

Tube Temperature:

300 °C (572 °F)

Tube Material:

Stainless Steel 321

Tubesheet Material:

Stainless Steel 321

Shell Diameter:

800 mm (31.5 in)

Head Material:

Stainless Steel 321

Length:

6,963 mm (274.1 in)

Tube-side Passes:

Tube Number:

406

Tube Diameter:

25 mm (0.98 in)

Tube Length:

5,000 mm (196.9 in)

Tube Thickness:

2 mm (0.08 in)

Additional Info:

Certification: TUV pressure tube side 15 barg @ 300 degrees C (1270 liter) shell 65 barg @ 300 degrees C (1180 liter) Expansion bellows: Yes (1) 321 stainless steel bonnet head, (1) 321 stainless steel dished head
