With Badger expansion joint. TEMA type BEM 10-4-96.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Model: BEM 12-1-72
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 9.3 m² (100 ft²)
Orientation: Horizontal
Rated 150/FV @ -20 to 400 degrees F tube side 150/FV @ -20 to 400 degrees F Shell Side Unit has (2) bolted flat heads (1) Tanalum, (1) CS with tantalum lining
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 304.8 mm (12 in). Head Material: Tantalum. Length: 2,400 mm (94.5 in). Tube Number: 84. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Nozzle Schedule: - Nozzles: Shell side has two 4" nozzles with 1" reducing flanges - Inlet/outlet: Tube side inlet is 4", tube side outlet is 3" with a 1" drain..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Model: AEL-8-1-96
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 4.6 m² (49.5 ft²)
Orientation: Horizontal
Tantalum/2.5%W (Tungsten) tube Design and fabricated per ASME SECT. V111. DIV. 1 1988 and 1998 ADDENDA TEMA “C” design pressure tube side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F), shell side 6.9 bar + full vacuum (100 psig + full vacuum) @ 204 degrees C (400 degrees F) on a 28.6mm (1 1/8”) triangle pitch, double grooved roller expanded and seal welded tubes, (2) 304L stainless steel tube sheets with Tantalum/2.5% W (Tungsten) lining, (2) Tantalum/2.5%W (Tungsten) lined channel heads with a flat removeable end cover 304L stainless steel shell with expansion bellows (40) Teflon/PTFE internal baffle plates, 39 spaces @ 50.8mm (2”) 39 spaces @ 50.8mm (2”)
Shell Pressure: 6.9 bar (100.1 psi). Shell Temperature: 204 °C (399.2 °F). Shell Material: Stainless Steel 304. Tube Pressure: 6.9 bar (100.1 psi). Tube Temperature: 204 °C (399.2 °F). Tube Material: Tantalum. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 219 mm (8.6 in). Head Material: Tantalum. Length: 3,016 mm (118.7 in). Tube-side Passes: 1. Tube Number: 32. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,438 mm (96 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Openings: tubes side - 1 head with 1-4”, 1 head with 1-3”, 1-1 ½”, shell side - 2-3”.

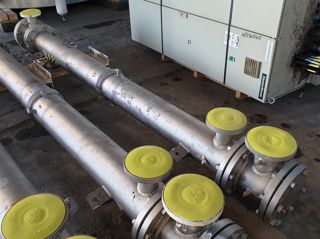

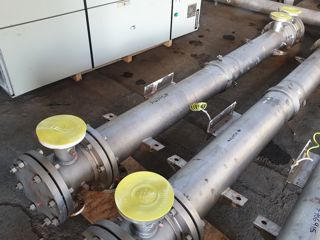

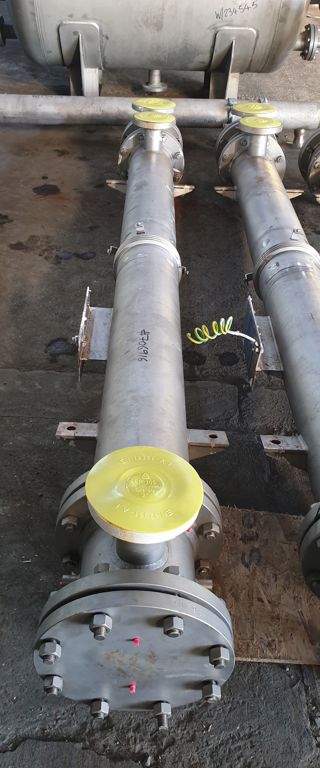

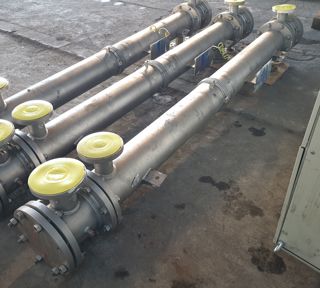

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 4.3 m² (46.3 ft²)
Orientation: Horizontal
working pressure tube side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C), shell side 150 psi (10.3 bar) + full vacuum @ 400 degrees F (204 degrees C) single pass 200mm I.D 304L stainless steel shell with expansion bellows (2) 304L stainless steel heads with Tantalum lining (1) flat channel head
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 200 mm (7.9 in). Head Material: Stainless Steel 304. Tube-side Passes: 1. Tube Number: 33. Tube Diameter: 19 mm (0.75 in). Tube Length: 2,280 mm (89.8 in). Nozzle Schedule: - Tube side openings: Coned head with 1-100mm, flat channel head with 1-50mm - Shell side openings: 2-80mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Cosmos Metalurgical (Camarillo CA)
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 29.5 m² (317 ft²)
Shell Pressure: 10.3 bar (150 psi)
shell rated 150psi FV @ 150 psi @450 deg F tubes rated 150psi FV@ 450 degF
Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Length: 1,829 mm (72 in).
