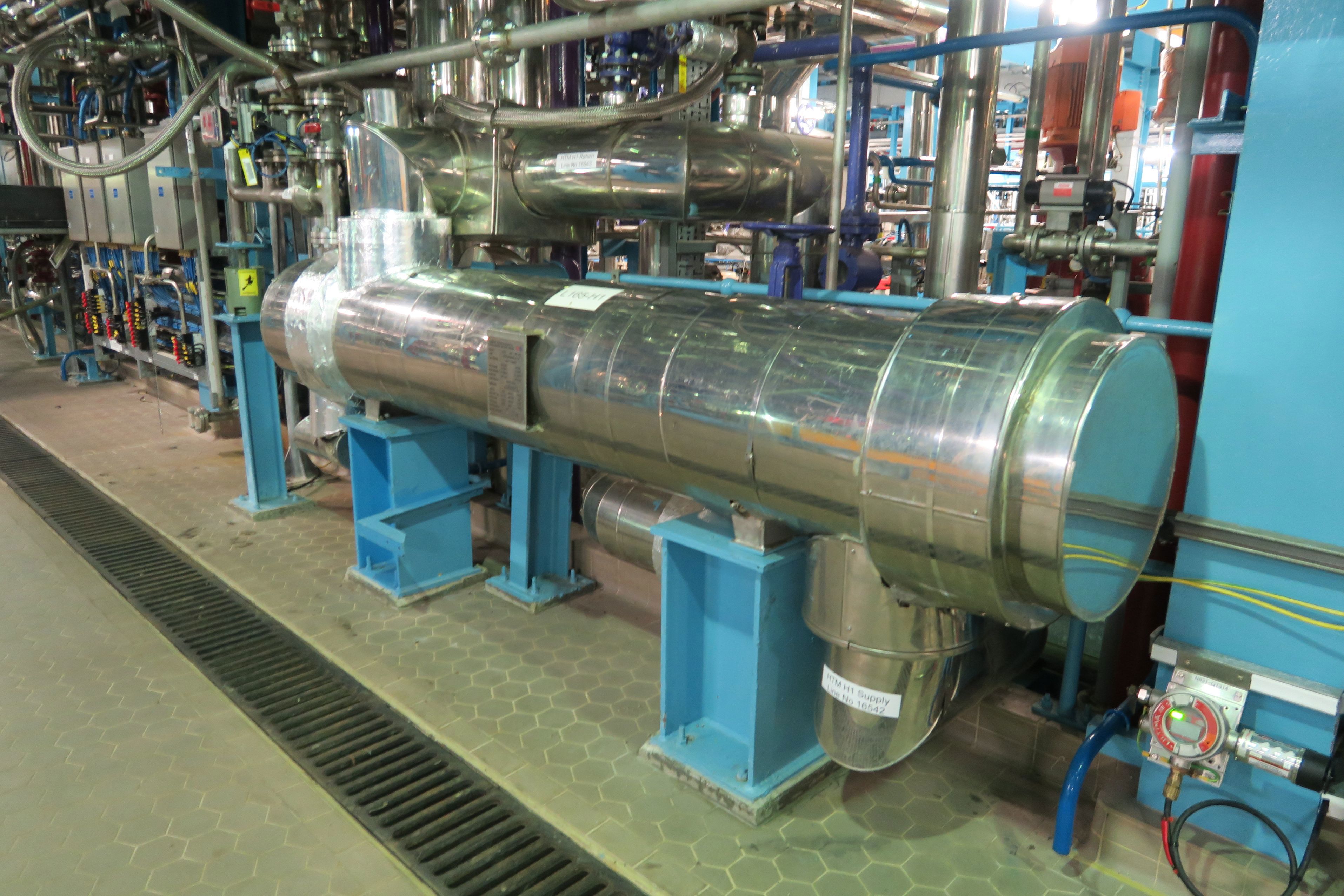

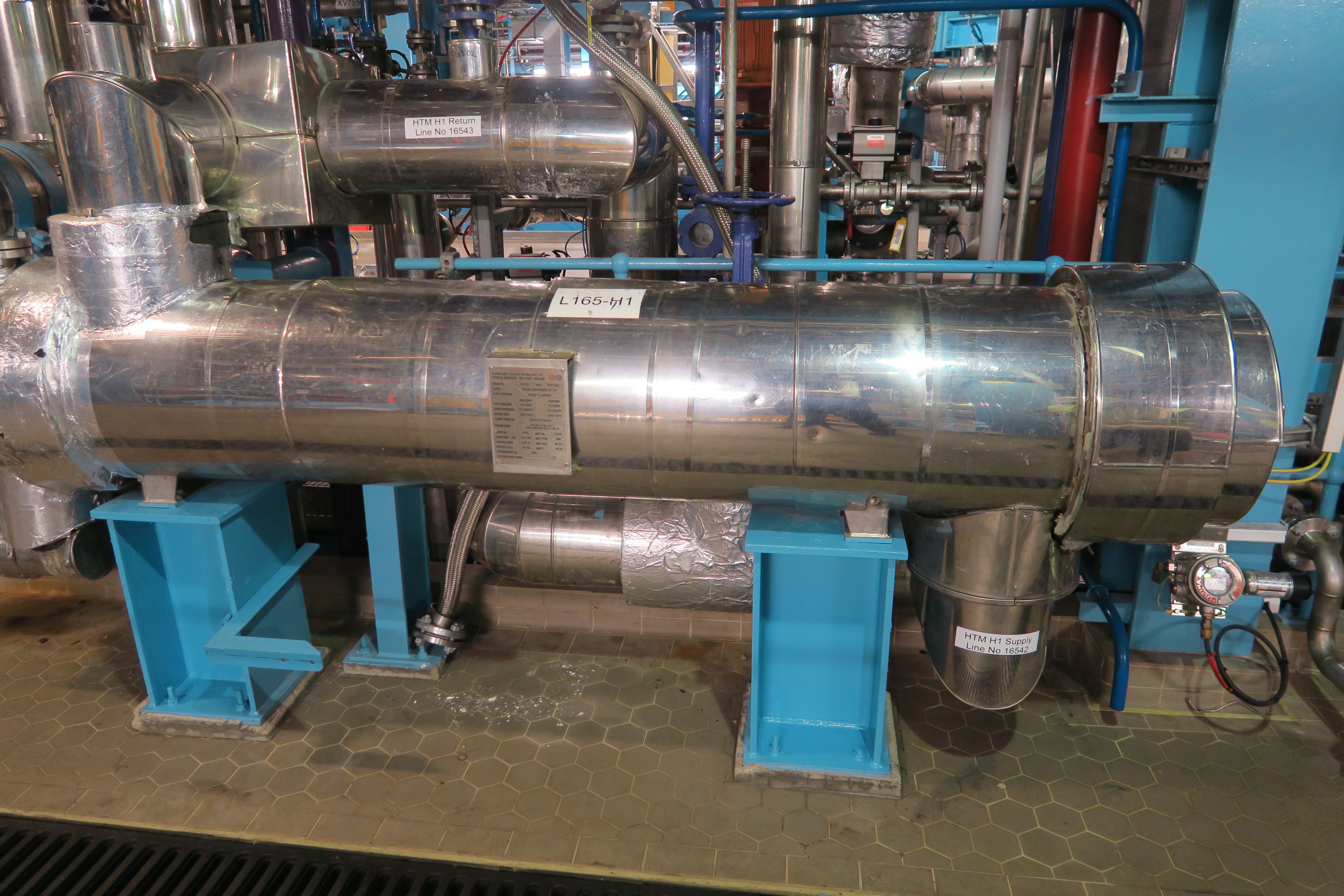

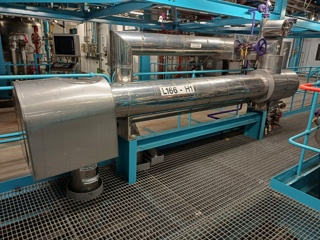

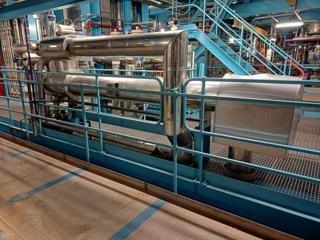

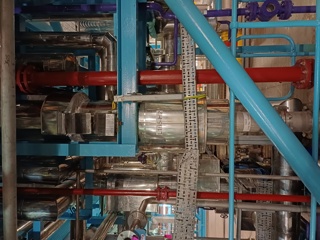

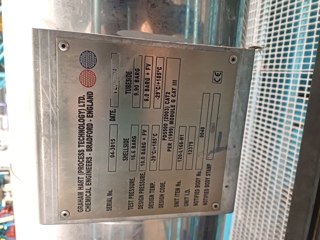

Stainless Steel 316L Graham Hart Ltd Shell and Tube Heat Exchanger - IPP# 242533

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart Ltd

Model: BEM

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 4.9 m² (52.2 ft²)

Orientation: Vertical

• rated load 28.14kW
• unit size OD 273
• design pressure tube side 10 barg + full vacuum @ -29/185 degrees C,
• shell side 10 barg + full vacuum @ -29/185 degrees C
• shell with expansion bellows
• 1-316L stainless steel bonnet head,
• 1-316L stainless steel coned reduction head,
• (12) 316L stainless steel internal baffle plates
• design code: PD5500 (2000) CAT II PER (1999) Module G CAT II, CE 0040

Shell Pressure: 10 bar (145 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 10 bar (145 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Stainless Steel 316L. Length: 1,600 mm (63.2 in). Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 81. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,000 mm (39.4 in). Tube Thickness: 1.63 mm (0.06 in). Nozzle Schedule: openings tube side 1-head with 1-75mm, 1-head with 1-150mm, shell: 2-50mm,.

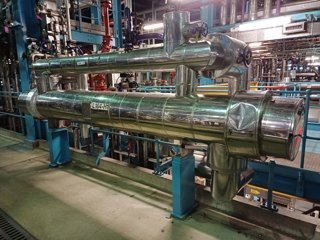

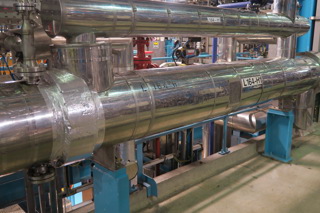

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart Ltd

Model: BEM

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 4.2 m² (45.3 ft²)

Orientation: Vertical

• design pressure tube side 4 barg + full vacuum @ -29/185 degrees C,
• shell 10 barg + full vacuum @ -29/185 degrees C
• rated heat load 36.43kW
• unit size OD273
• design code: PD5500 (2000) CAT II PER (1999) module G CAT II, CE0040

Shell Pressure: 10 bar (145 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 4 bar (58 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Stainless Steel 316L. Tube Type: Straight Tube.

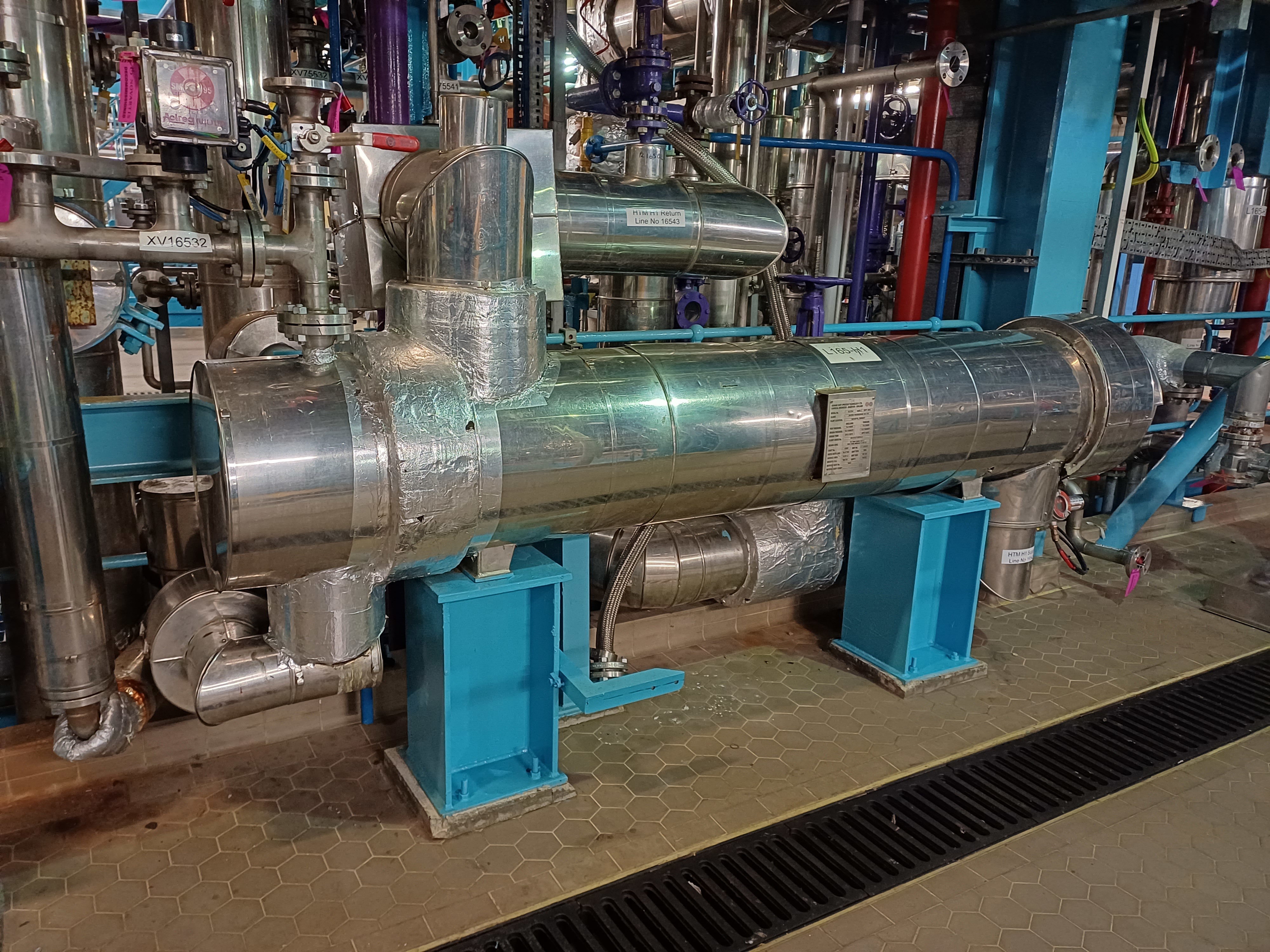

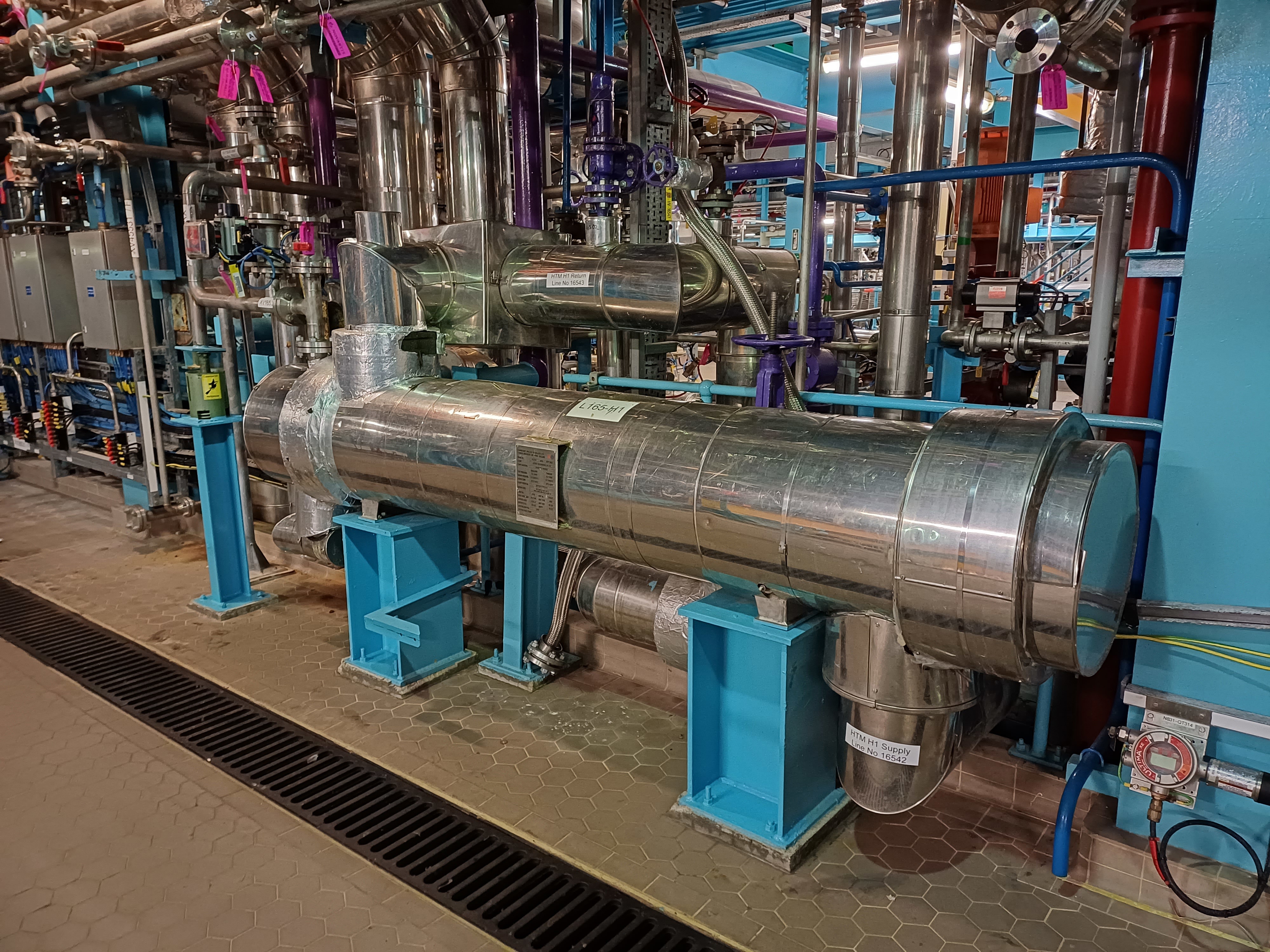

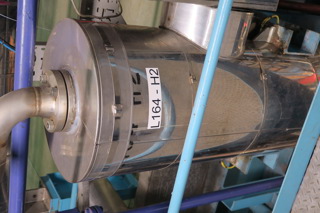

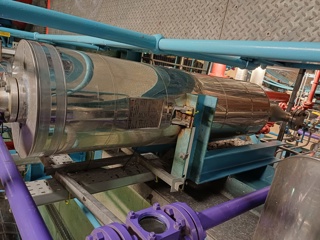

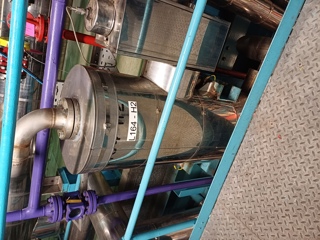

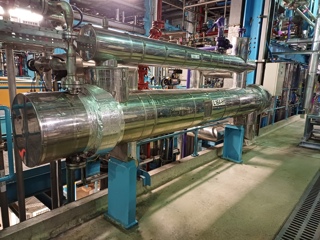

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart Ltd

Model: BEM

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 14.6 m² (156.6 ft²)

Orientation: Horizontal

• size OD-324,
• rated heat load 38.47kw,
• design pressure tube side 6 barg + full vacuum @ -29/185 degrees C,
• shell side 10 barg + full vacuum @ -29/185 degrees C,
• (28) internal baffle plates,
• (2) 316L stainless steel bonnet heads,
• design code: PD5500 (2003) CAT2 per (1999) Module G Cat III, CE0040,

Shell Pressure: 10 bar (145 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 6 bar (87 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Stainless Steel 316L. Length: 4,100 mm (162.2 in). Tube-side Passes: 2. Tube Number: 66. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,500 mm (137.8 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: openings tube side: 1-head with 2-50mm, 1-head with 2-19mm, shell: 2-100mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart Ltd

Model: BEM

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 14.2 m² (153.3 ft²)

Orientation: Horizontal

• design pressure tube side 6 barg + full vacuum @ -29/185 degrees C,
• shell 10 barg + full vacuum @ -29/185 degrees C
• rated heat load 108.62 kW,
• unit size OD 273
• CE0040
• design code: PD5500 (2000) CAT 11 PER (1999) MODULE G CAT III

Shell Pressure: 10 bar (145 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 6 bar (87 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Stainless Steel 316L. Tube Type: Straight Tube.
