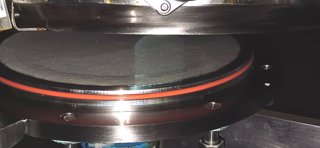

designed by GL Filtration Ltd, manufactured by RMF Engineering Ltd, design pressure internal 6 bar + full vacuum @ -25/165 degrees C, jacket 6 bar + full vacuum @ -25/165 degrees C, all wetted parts are Hastelloy C22 with cosmetical polish to 0.6um Ra, hazard area classification Zone 1 IIB T4, 500 liter slurry capacity, 180 liter cake capacity, 875mm diameter x 855mm straight side, agitator driven by 4kW, 3/50/400/690 volt, 1444 rpm CE ATEX EExd IIB TA IP55 motor, hydraulic agitator raise/lower mechanism driven by an hydraulic powerpack, bellows on shaft, flat bottom filter plate with Hastelloy C22 'POROSTAR' 20 micron (5 layers) filter media and can be rotated for cleaning, bottom filter bed with no jacket, 150mm side discharge which is fully contained in a glovebox, built on controls, dust filter, mounted on 3 x stainless steel legs, design code: ASME VIII DIV 1 2010 + 'U' stamp, Challenger 18i control pedestal,
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: GL Filtrations ltd
Model: FD350
Condition: Used
Material: Hastelloy - C22
Filtration Area: 0.1 m² (1.08 ft²)
Diameter: 350 mm (13.8 in)

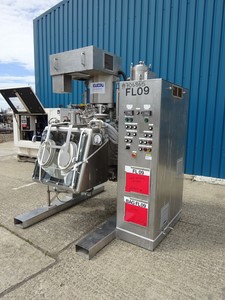

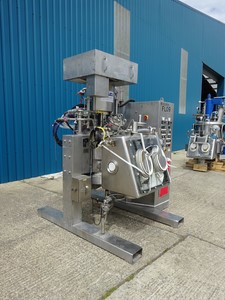

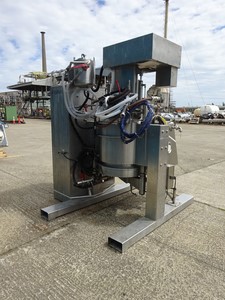

mobile filter/dryer with tilting mechanism, designed by GL Filtration Ltd, manufactured by RMF Engineering Ltd, design pressure internal 6 bar + full vacuum @ -25/160 degrees C, jacket 6 bar + full vacuum @ -25/160 degrees C, all wetted parts are Hastelloy C22 with 0.6um polish, Hazard area classification Zone 1 IIB T4, 50 liter slurry capacity, 20 liter cake capacity, 350mm diameter x 665mm straight side, agitator driven by 1.1kW, 3/50/230/400 volt, 1400 rpm CE ATEX Ex II2G motor, hydraulic driven agitator raise/lower mechanism with power pack, alloy 22 bellows on shaft, flat bottom filter plate with Hastelloy C22 'PORSTAR' 22 micron filter media and can be rotated for cleaning, manual vessel tilt mechanism, strip sight glass on side for measuring cake depth, 150mm side discharge which is fully contained in a glovebox, all mounted on stainless steel frame with wheels for full mobility, design code: ASME VIII DIV 1 2007 + 'U' stamp,
Pressure: 6 bar (87 psi). Temperature: 160 °C (320 °F). Vacuum: Yes. Jacket: Yes. Jacket Type: Standard. Jacket MOC: Stainless Steel 316L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 160 °C (320 °F). Agitator Cored for Heating/Cooling: Yes.
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Rosenmund AG
Model: FML 250
Condition: Used
Material: Hastelloy - C22
Clad: Yes
Filtration Area: 0.25 m² (2.7 ft²)
Diameter: 550 mm (21.7 in)

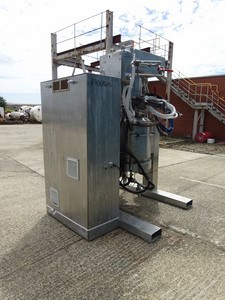

Agitated jacketed Rosenmund filter dryer Batch size 20 to 25kg internal design pressure 0.39 MPa (3.9 bar) + vacuum @ -20/170 degrees C (120 liter) coil jackets 0.6 MPa (6 bar) @ -20/170 degrees C (10 liter) internal working pressure 0.15 MPa (1.5 bar) @ 100 degrees C jacket 0.6 MPa (6 bar) @ 100 degrees C 550mm diameter x 828mm from agitator opening to filter plate, chamber insulated and with 316L stainless steel cladding, side discharge with 316L stainless steel glove box Ex motor, filter plate has a raise/lower and a hydraulic lock mechanism driven by the same power pack, CE certified, unit also includes (1) stainless steel condenser, (1) stainless steel tank, (1) heating controller
Pressure: 3.9 bar (56.6 psi). Temperature: 170 °C (338 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 170 °C (338 °F).
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Rosenmund
Model: RSD 0.03-975-98
Condition: Used
Material: Hastelloy - C22
Filtration Area: 0.3 m² (3.2 ft²)
Pressure: 6 bar (87 psi)

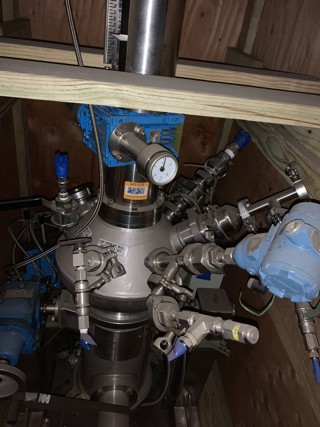

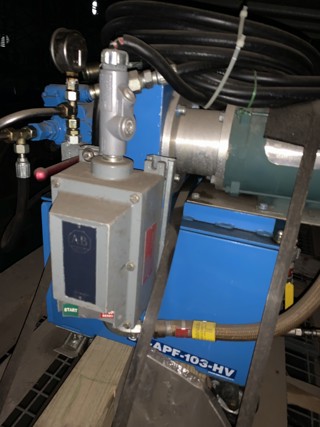

Agitated Pressure Filter The 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree C The 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C. With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controls Filter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.
Temperature: 200 °C (392 °F). Jacket: Yes.

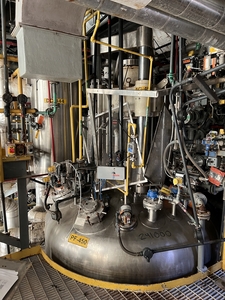

Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: 3V Cogeim
Model: Filtodry FPP XD 400 FM
Condition: Used
Material: Hastelloy - C22
Filtration Area: 4.2 m² (44.7 ft²)
Diameter: 2,300 mm (90.6 in)
Alloy C22
Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel
18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.
Dryer Dimensions: 90" diameter x 76" length
hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.
Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.5 bar (152 psi). Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
