Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331

  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331 Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331 Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331 Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331 Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331 Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331 Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
  • Rosenmund and Cogiem Filter APOVAC Unit - IPP# 248331
Overview
Filter
Rosenmund and Cogiem
Rosenmund AG
APOVAC
Used
Stainless Steel 316L
Capacity
0.3 m² (3.2 ft²)
Dimensions
457.2 mm (18 in)
1,200 mm (48 in)
1,850 mm (72 in)
1,200 mm (48 in)
Other Specifications
4.1 bar (60 psi)
120 °C (248 °F)
Yes
Mill 2B
Electric
Top Head
Dish
Stainless Steel 316L
Welded
Bottom Head
Dish
Stainless Steel 316L
Welded
Motor
60
Reliance
7.5 kW (10 HP)
3,510
460

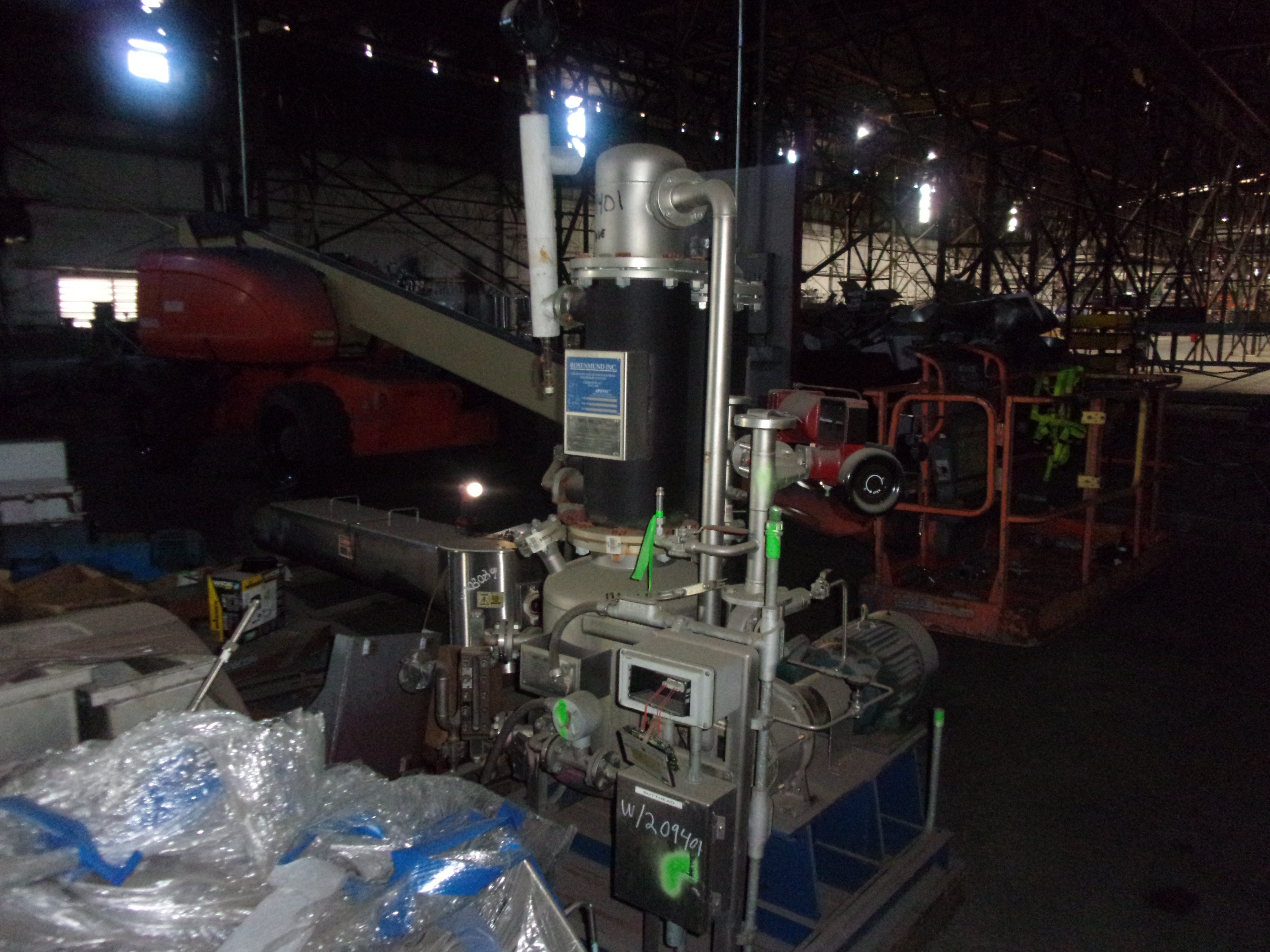

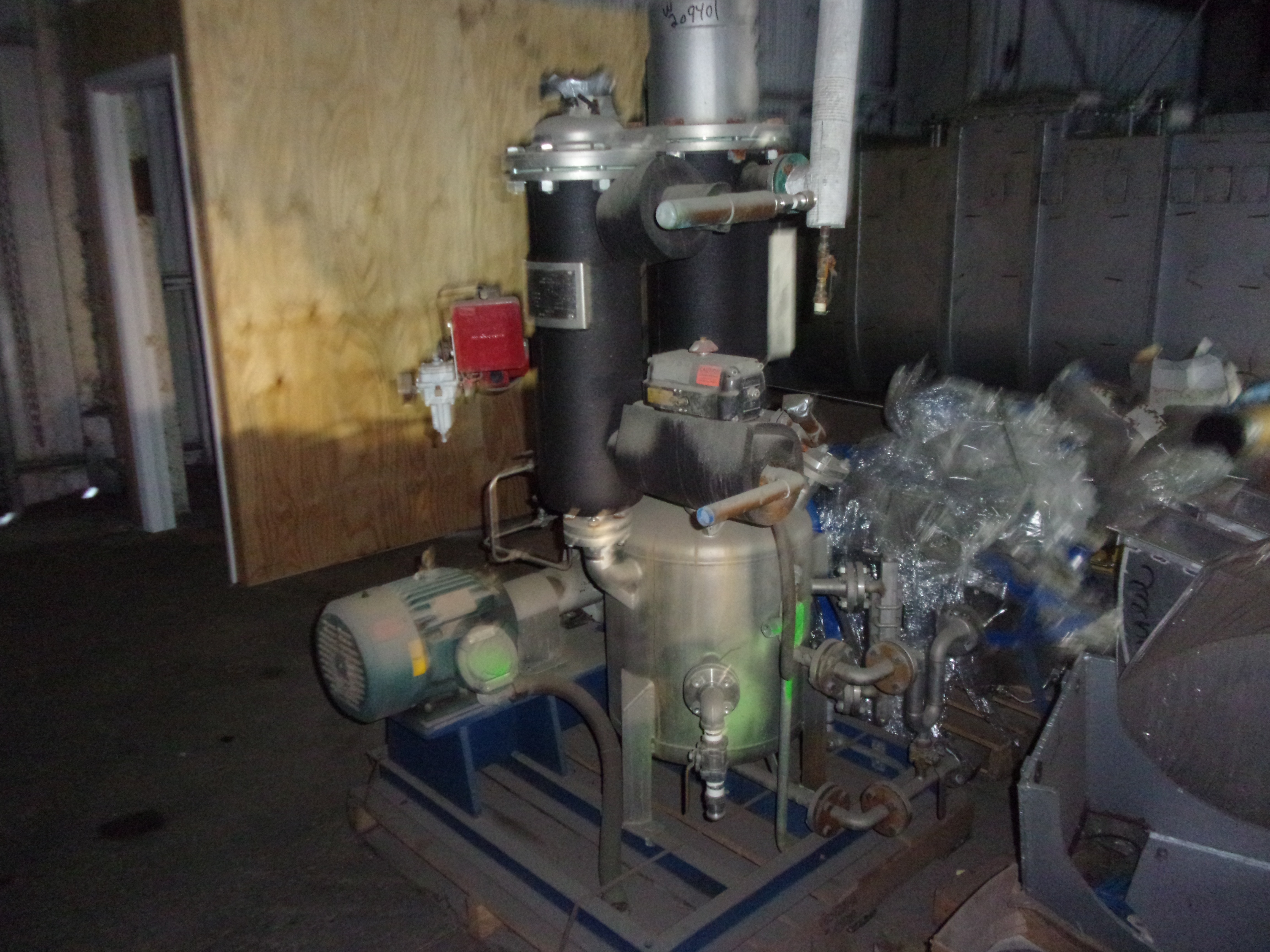

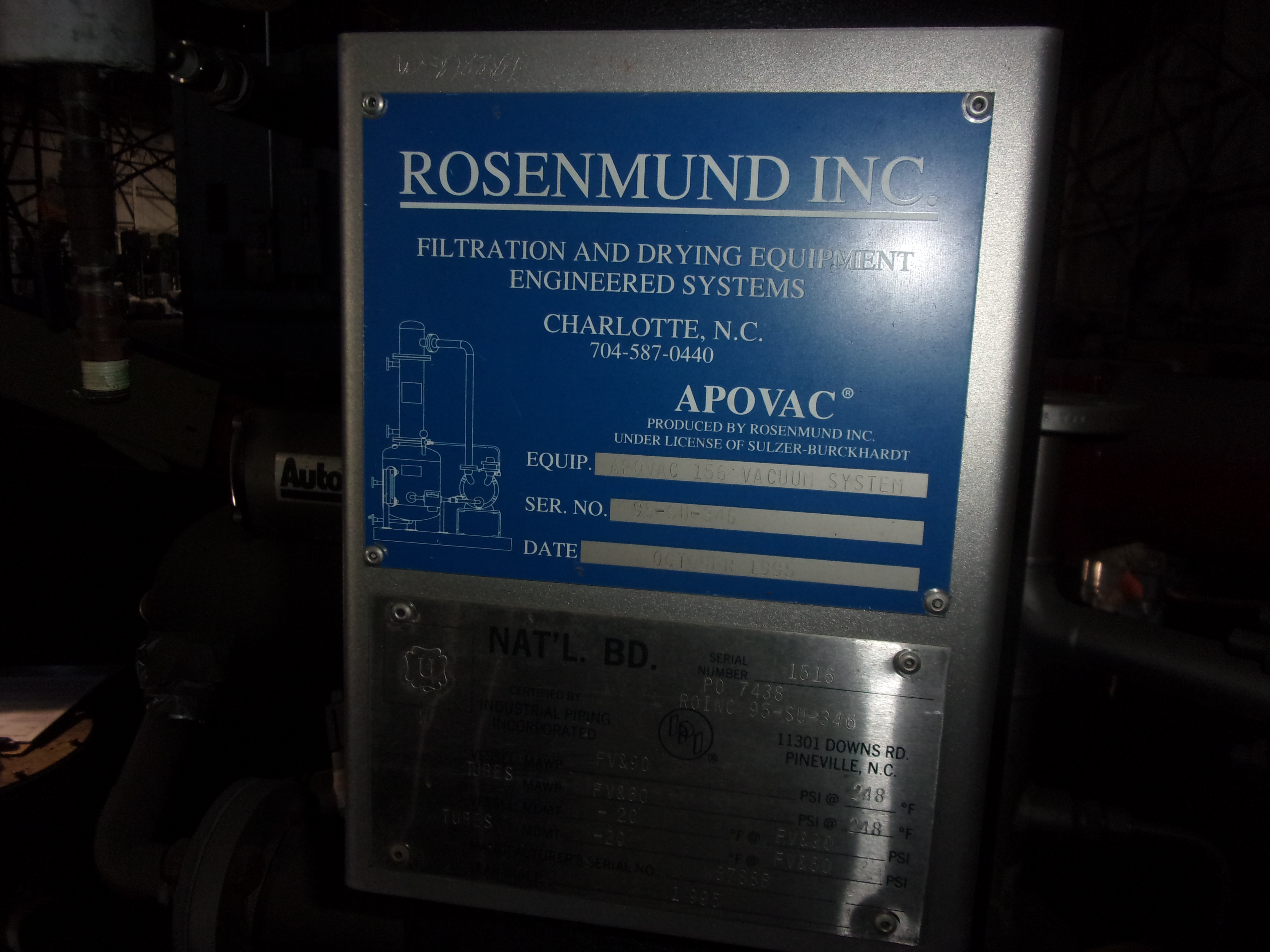

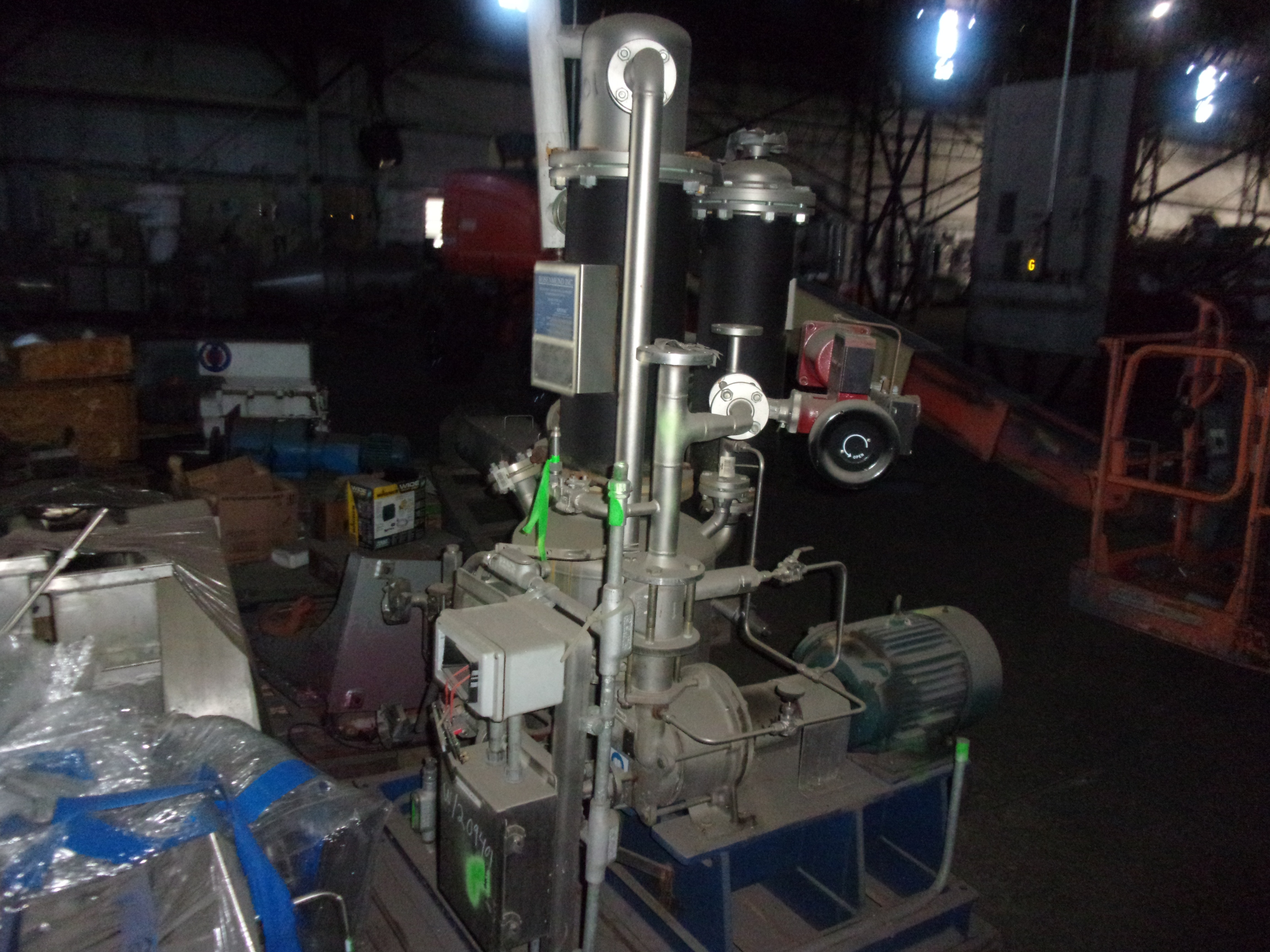

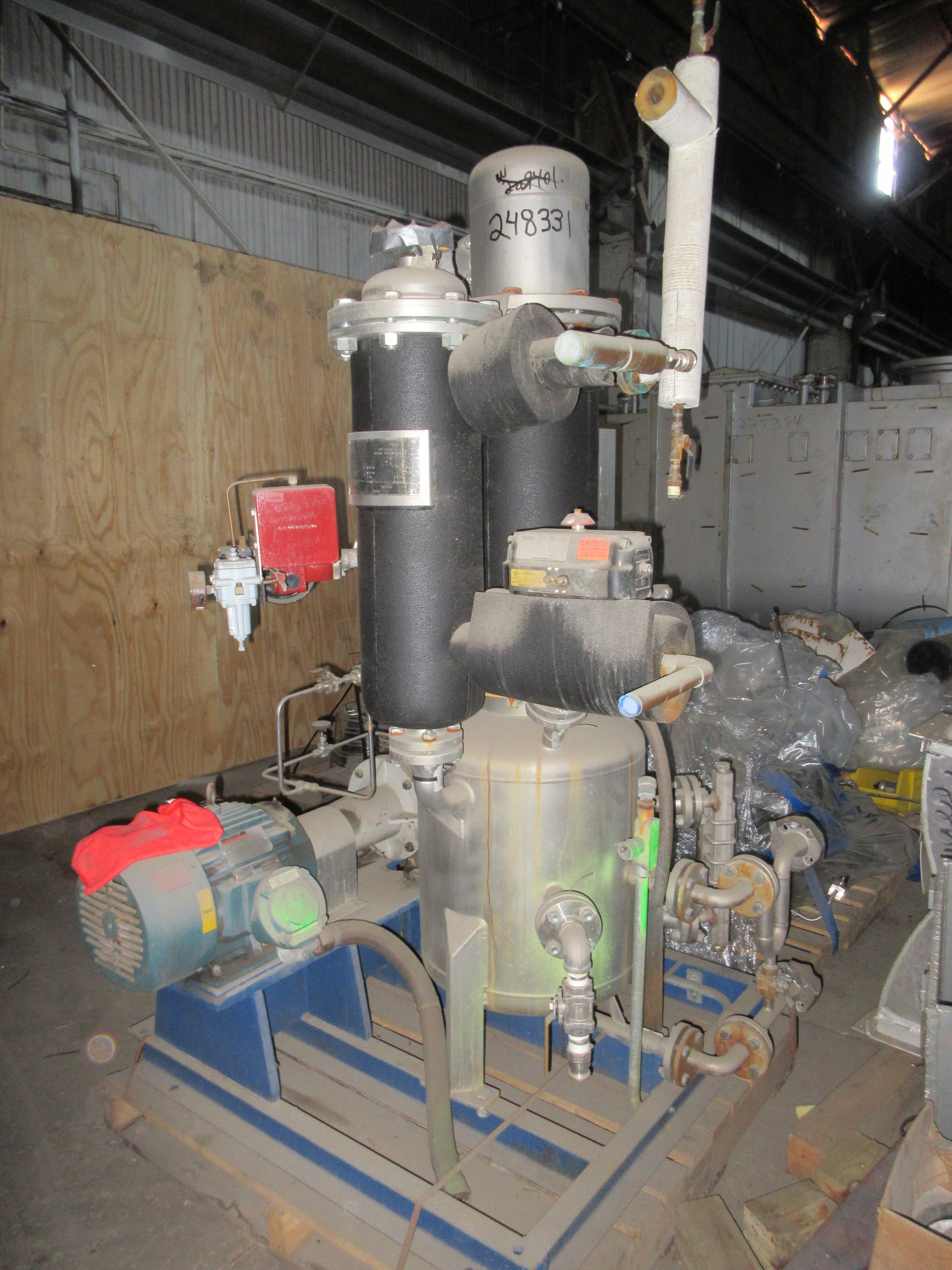

  • APOVAC system skid mounted.

  • 80 CFM 2.2 GPM with a Sulzer Burkhardt Vacuum Pump, typically contains two heat exchangers and a receiver.

  • All on a skid mounted system.

  • Can be used with the following IPP stock numbers: 247646, 247146, 247050, 209158, 230453, 705428, 706865, 248105, & 247051

  • Receiver is 316 L SS, 20 Gallon, 18" diameter x 18" straight side, rated for FV/60 psi at 248 degrees F.

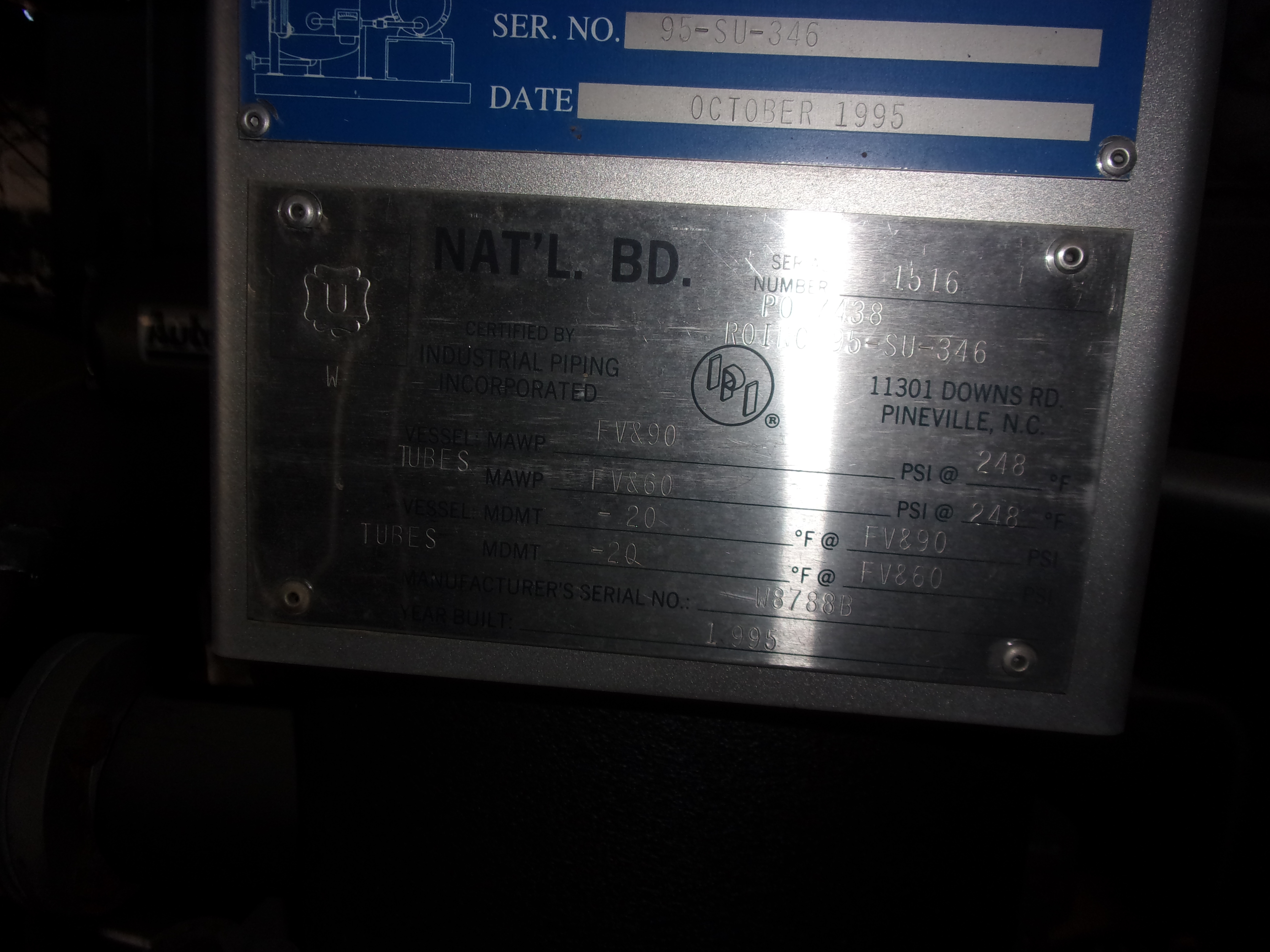

  • Heat exchanger serial # W8788C, 10 Sq. Ft., 316L SS tubes, tube sheets, heads and shell. Shell rated for FV90 psi at 248 Degrees F., tubes rated for FV 60 psi at 248 degrees F.

    31 straight tubes, 0.75" diameter x 18 GA x 22" long.

  • Heat exchanger, serial # W8788B, 202 Sq.Ft. 316L SS tubes, tube sheets, heads and shell. Shell rated for FV90 psi at 248 Degrees F., tubes rated for FV 60 psi at 248 degrees F.

    31 Straight tubes, 1" diameter x0.065" x 25" long.
