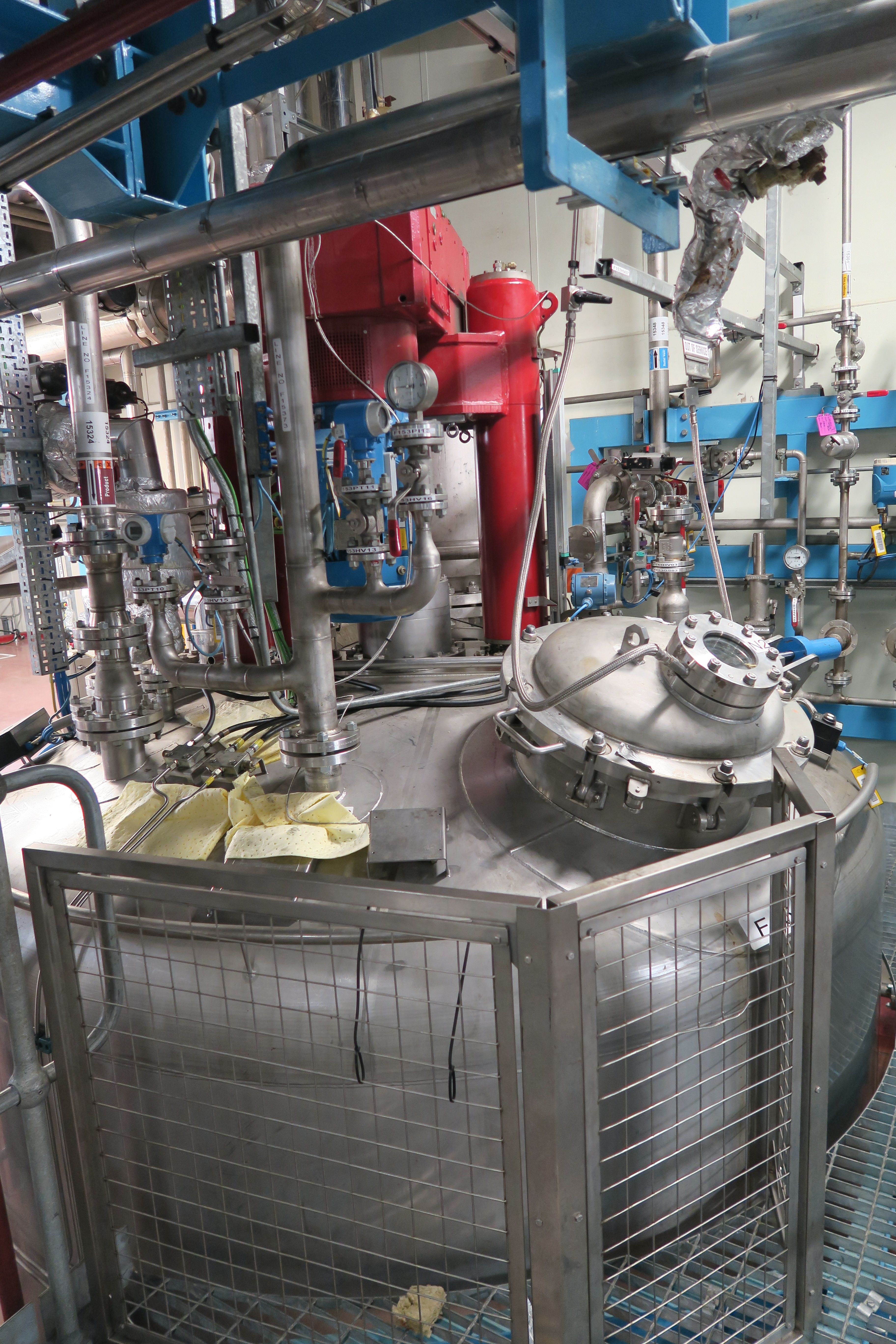

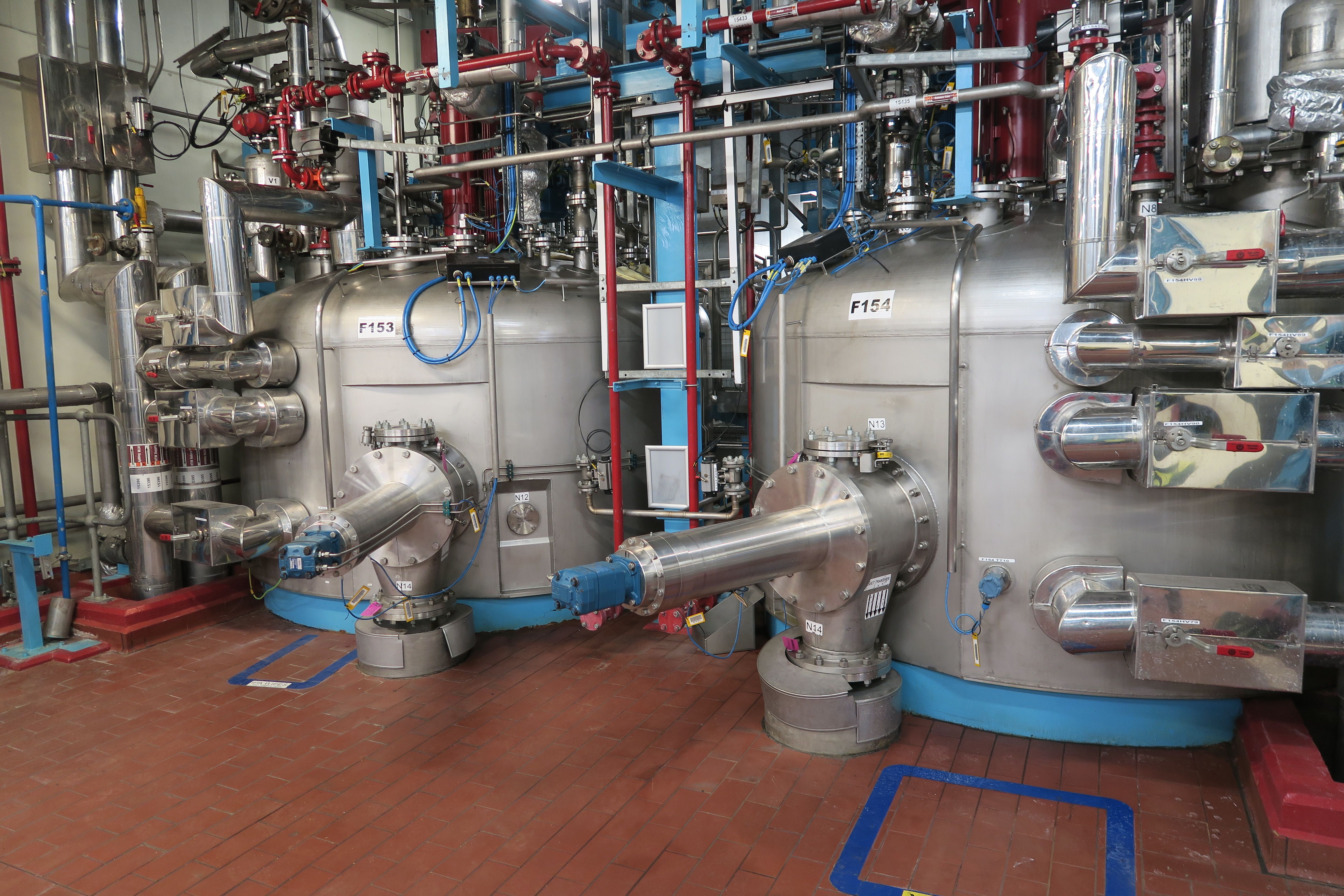

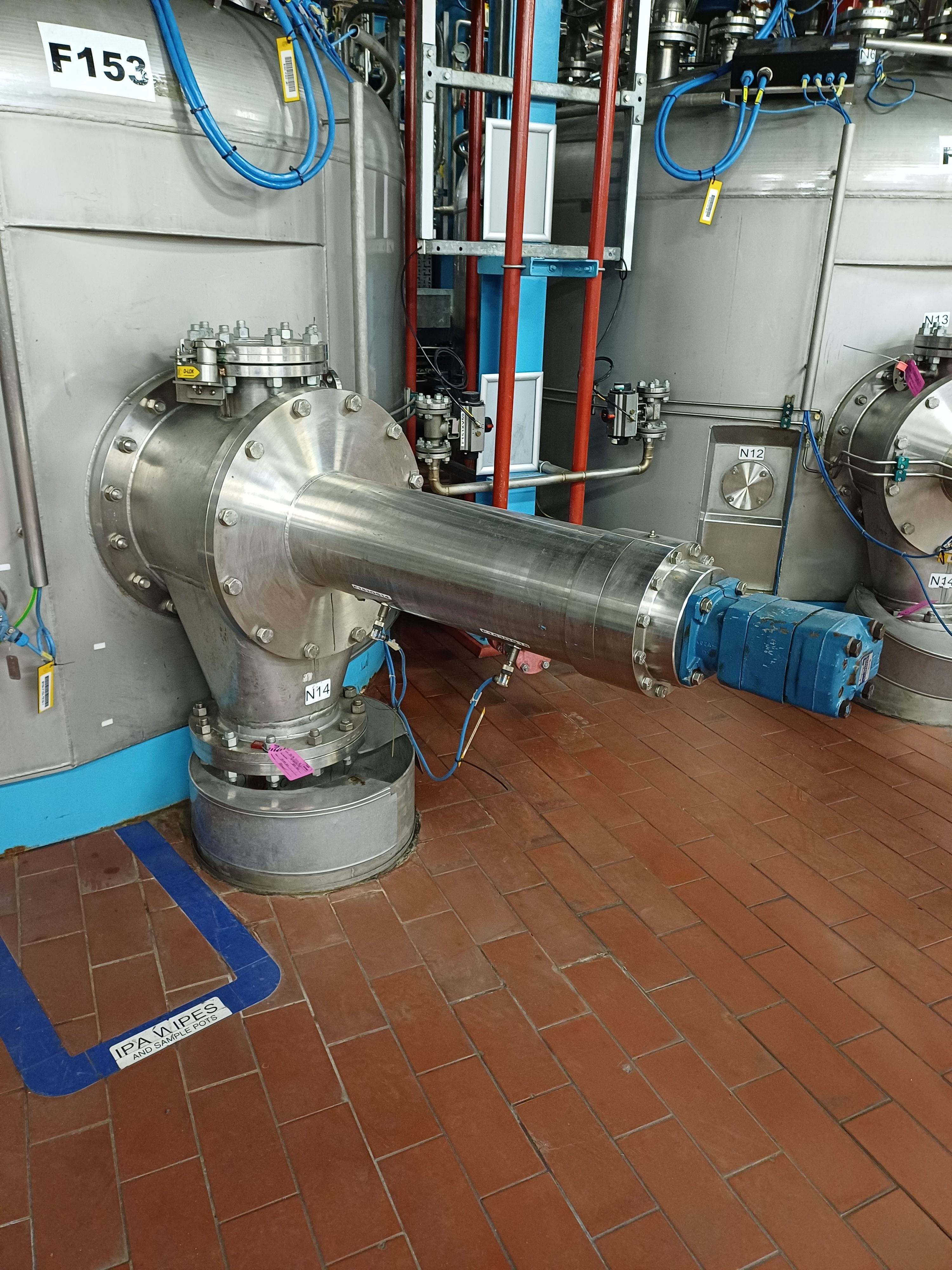

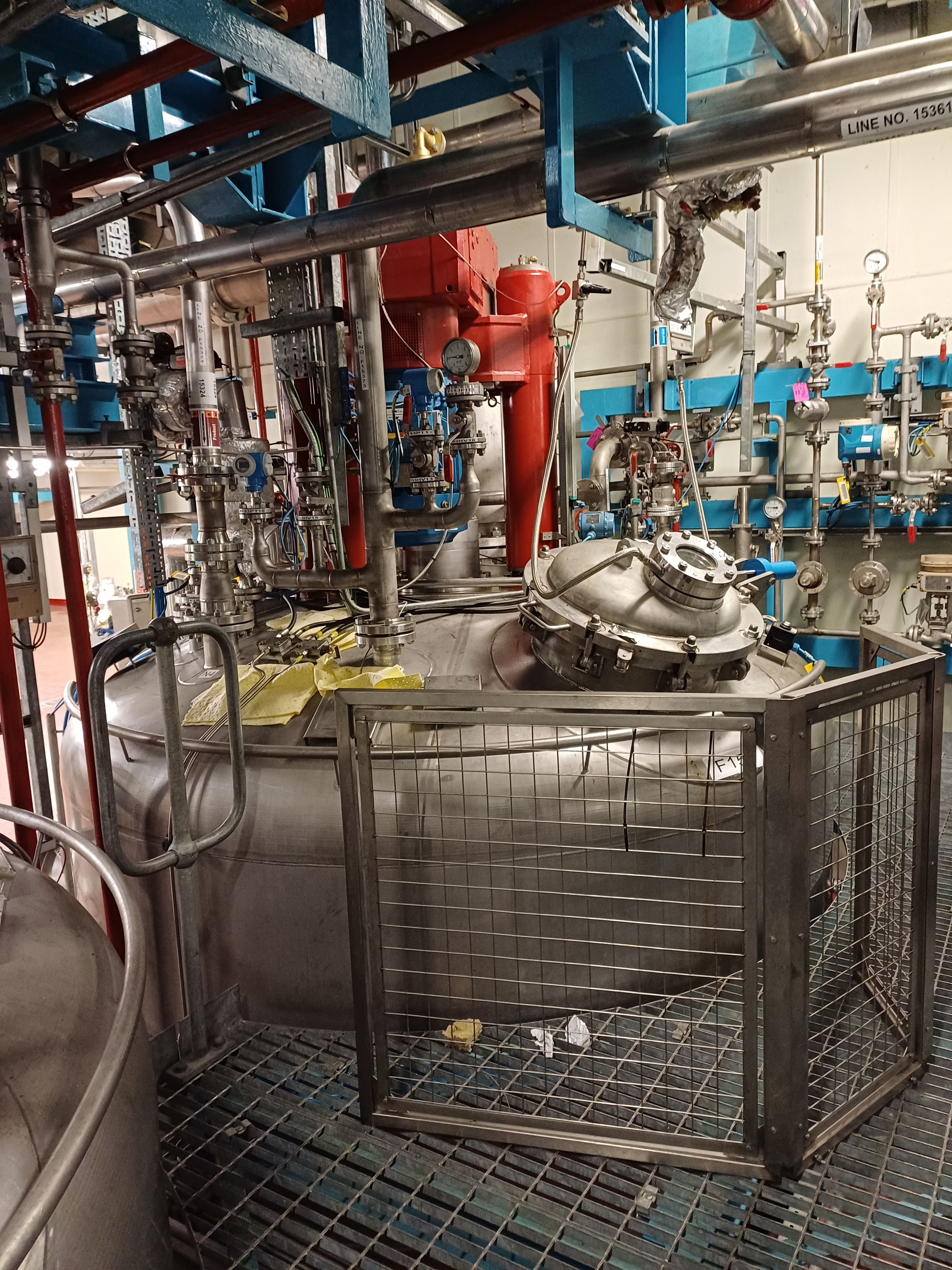

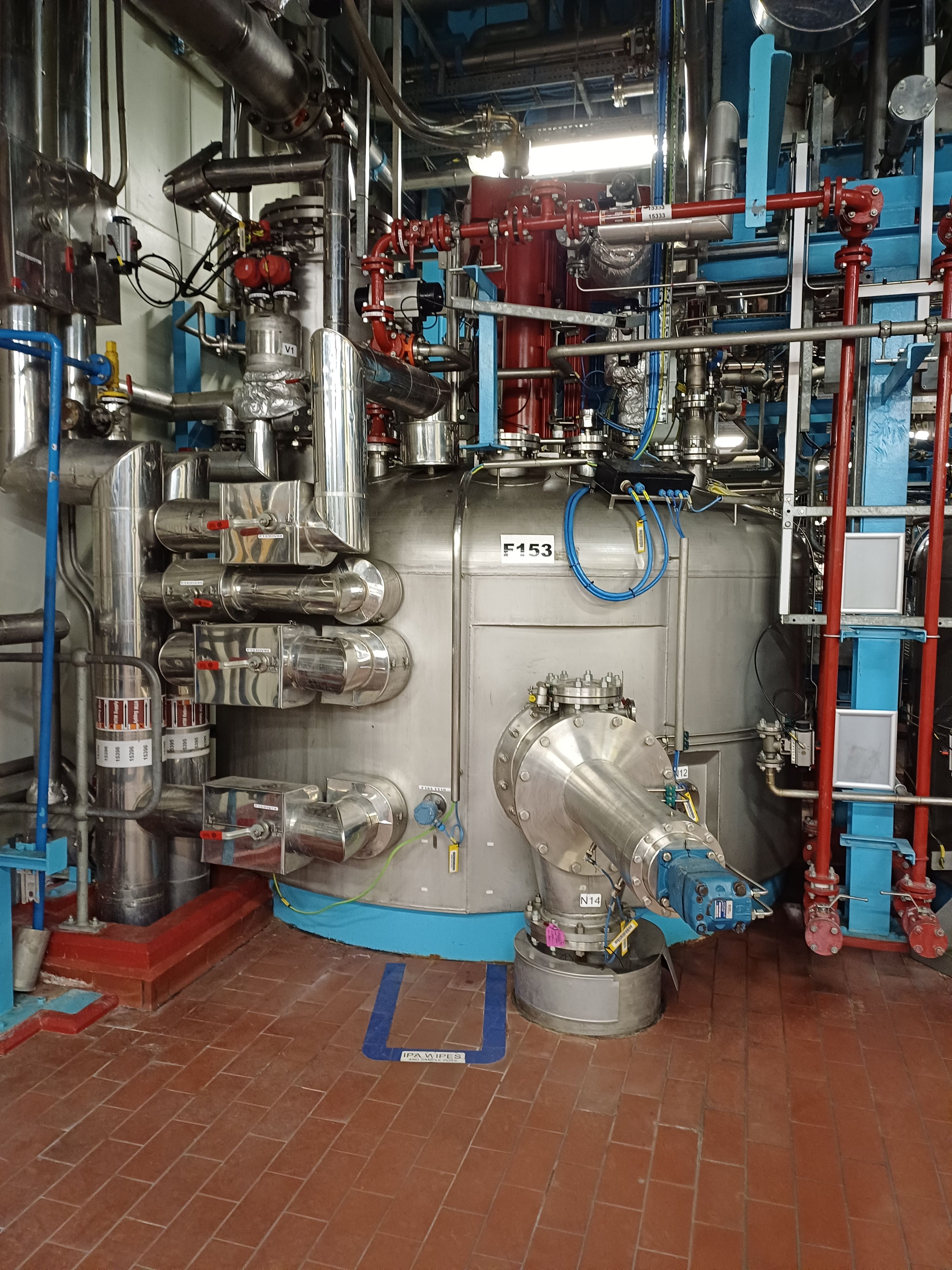

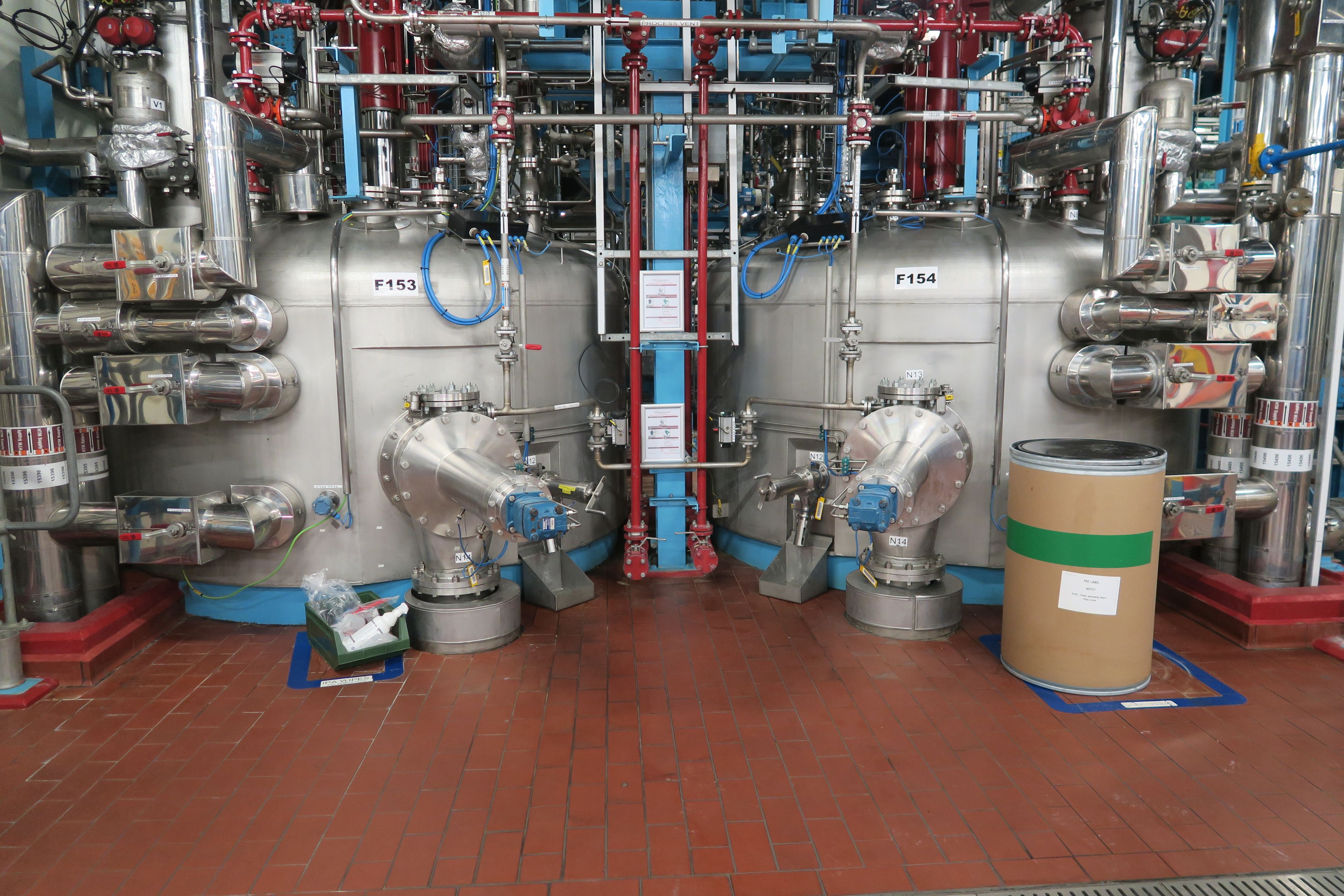

(Wetted parts) filter/dryer system dryer base jacket -1/16 bar @ -25/160 degrees C nominal volume of cake 2400 liter shaft is cored for steam heating gas type double mechanical seal shaft with Hydraulic raise/lower mechanism driven by a hydraulic power pack with a 2.2 kW, 3/50/400 volt 1450 rpm IP55 EExde IIB T4 motor side discharge with hydraulic valve fixed bed design with internal sintered mesh filter bed sampling point/outlet design code: AD 2000 Regelwerk PED 97.23/CE (1) 2 square meter top mounted Hastelloy C22 jacketed reverse jet dust filter, design design pressure internal -1/3.2 bar @ -25/160 degrees C 9230 liter), jacket -1/16 bar @ -25/160 degrees C (24 liter), 316L stainless steel jacket, (1) 1000 Nm3/hr COMBIVAC/APOVAC WKP1000/S/PMZE 2510 D6X6/APO 3.2/80/GK1.8 vacuum pump skid with booster pump, manufactured by NCB Gas Processing, asset #10006707 (1) 220 Nm3/hr liquid ring vacuum pump type WKP-4000-AD, 19kw motor, design pressure 100 mbar, (1) 3.2 square meter liquid ring cooler, (1) 1.8 square meter exhaust gas cooler, (1) 80 liter liquid ring tank, all mounted on a carbon steel skid, (1) 1000 Nm3/hr (working) booster pump, type WKP 4000 AD, serial #21170167, manufactured by Pfeiffer Vacuum, 6075m3/hr (max), 4500 rpm (max), pressure 100mbar, driven by 18.5/21kW, 3/50-60/690-400/660-380/415-440 VOLT, 2934/2924/3524 RPM ATEX EEx de IIB T4 IP55 motor,
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Rosenmund
Model: RSD 0.03-975-98
Condition: Used
Material: Hastelloy - C22
Filtration Area: 0.3 m² (3.2 ft²)
Pressure: 6 bar (87 psi)
Agitated Pressure FilterThe 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree CThe 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C.With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controlsFilter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.
Temperature: 200 °C (392 °F). Jacket: Yes.
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Rosenmund
Model: RPD 8-398-86
Condition: Used
Material: Stainless Steel 316
Filtration Area: 8 m² (86.1 ft²)
Diameter: 3,250 mm (128.3 in)
Codap85
center bottom discharge design
Includes hydraulic controls and vacuum pump skid.
316L stainless steel half pipe coil jacket on straight side cover with a shroud
jacket volume is 75 liters.
jacket -1/5 bar
Non-cored shaft.
Rated: internal pressure -1/3 bar
Designed for cake thickness 500mm.
Vessel is 13200liter volume
Includes hydraulic controls and vacuum pump skid
Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 165 °C (329 °F).
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Rosenmund
Model: RPD 8-398-86
Condition: Used
Material: Stainless Steel 316
Filtration Area: 8 m² (86.1 ft²)
Diameter: 3,250 mm (128.3 in)
CODAP 85, center bottom discharge design Non-cored shaft internal pressure -1/3 bar @ -15/165 deg C;, jacket -1/5 bar @ -15/165 deg C With 316L (1.4435) stainless steel half pipe coil jacket on straight side cover with a shroud Designed for cake thickness 500 mm Vessel is 13200 liter volume Includes hydraulic controls and vacuum pump skid.
Pressure: 0.21 bar (3 psi). Temperature: 73.9 °C (165 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Rosenmund
Model: RPD 8-398-86
Condition: Used
Material: Stainless Steel 316
Filtration Area: 8 m² (86.1 ft²)
Diameter: 3,250 mm (128.3 in)
center bottom discharge design internal pressure -1/3 bar @ -15/165 deg C; jacket -1/5 bar @ -15/165 deg C. Non-cored shaft Designed for cake thickness 500 mm Vessel is 13200 liter volume jacket volume is 75 liters
Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).
