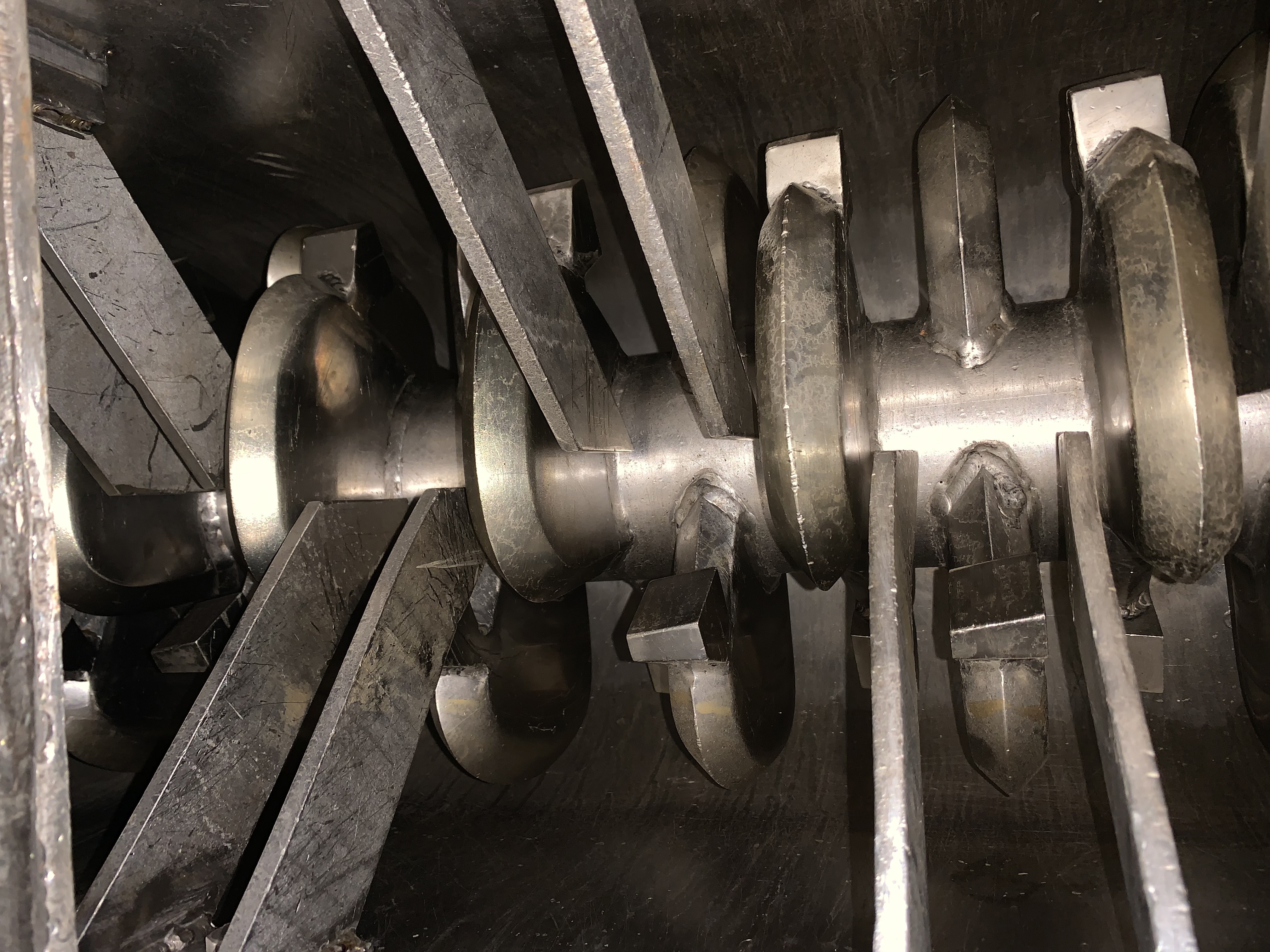

Stainless Steel 316 Gale Process Solutions 1P1207JTB Dryer-Porcupine - IPP# 78891

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1207JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Single agitator

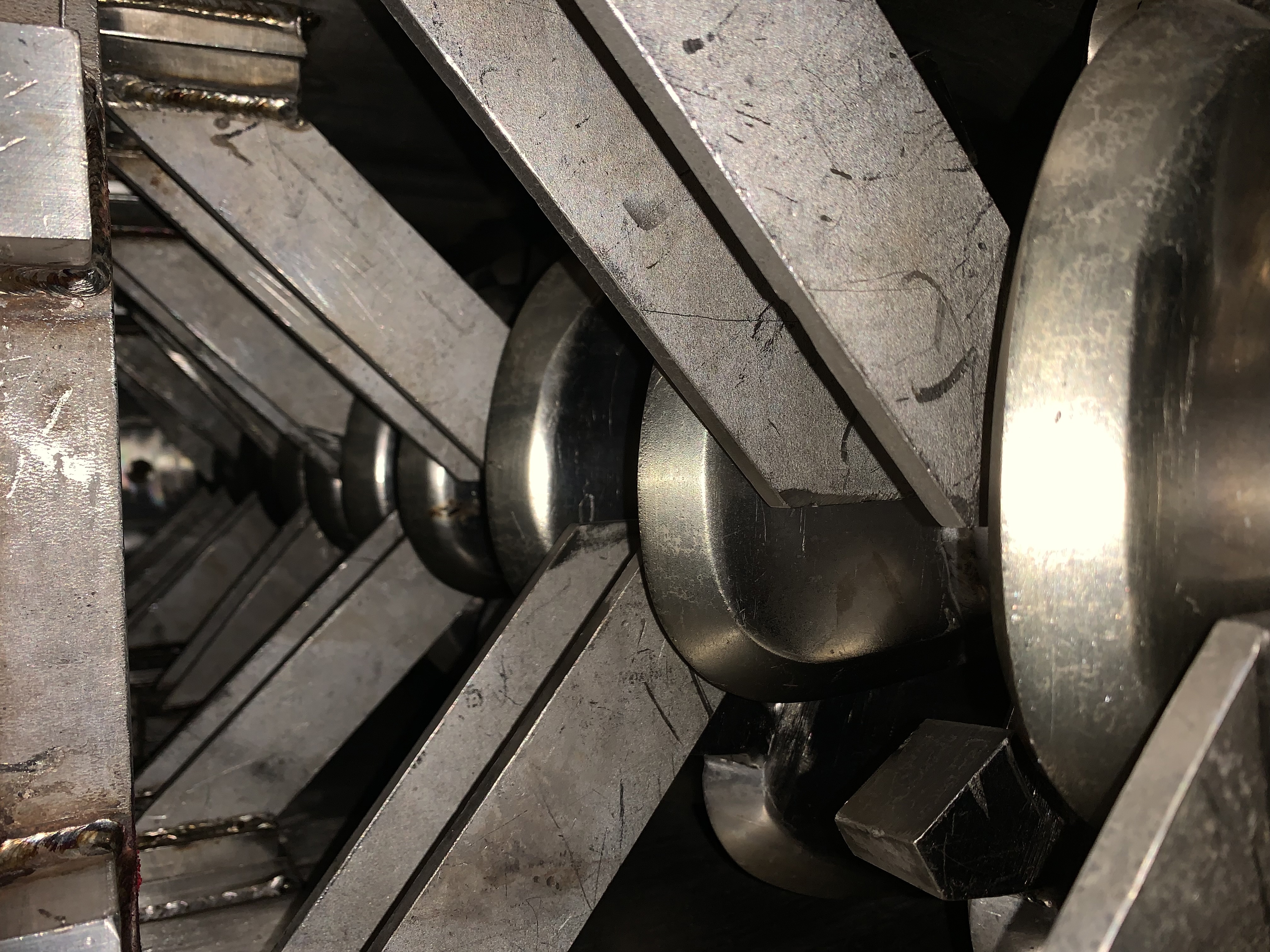

• Agitator 12" diameter and 7' long
• Heating medium hot oil or steam
• Vessel rated 15 psig @ 320 degree F
• Agitator has 30 square feet of heating area and with jacket added 15 square feet additional.
• Working volume 4.4 cubic feet.
• Outboard bearings.
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 2,134 mm (84 in). Number of Shafts: 1. Porcupine Surface Area: 2.8 m² (30 ft²). Jacket Operating Pressure: 1.03 bar (15 psi). Jacket Operating Temperature: 160 °C (320 °F). Total Heat Transfer Surface Area: 4.2 m² (45 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

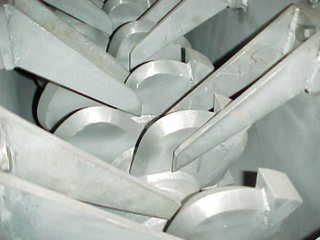

• Agitator 12" diameter, 3' long. (18% Cr, 11% nickel)
• hot oil or steam and full vacuum
• Working volume 1.89 cubic feet
• Agitator 12.4 square feet of heating area and jacket 7.3 square feet
• (requires motor and gear drive)
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.86 m² (20 ft²). Total Working Volume: 0.05 m3 (1.89 ft3). Size: 12" diameter x 36" long.

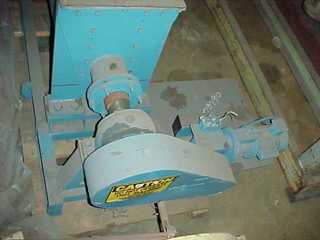

Type: Dryer-Porcupine

Subtype: Parts

Manufacturer: Gale Process Solutions

Model: 5416

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Diameter: 1,372 mm (54 in)

• Spare trough Size 54-16
• Shell rated for 5 psi at 325 degrees F Capacity of trough is 213 cu.ft

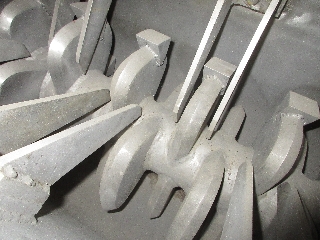

• Twin rotor chamber 36" deep x 191" long
• Designed to use two screws
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 4,877 mm (192 in). Number of Shafts: 2. Porcupine Operating Pressure: 5.2 bar (75 psi). Porcupine Operating Temperature: 162.8 °C (325 °F). Jacket Operating Pressure: 5.2 bar (75 psi). Jacket Operating Temperature: 162.8 °C (325 °F). Total Heat Transfer Surface Area: 64.1 m² (690 ft²).

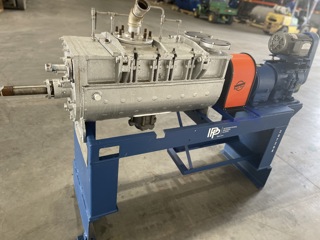

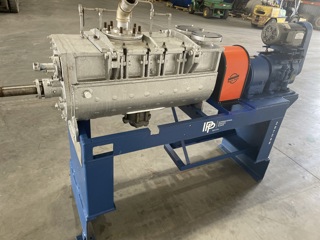

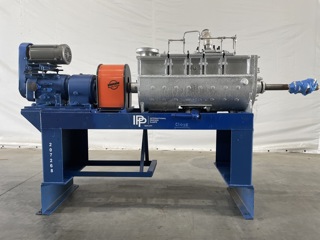

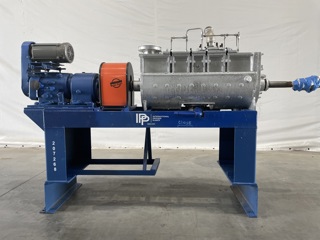

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

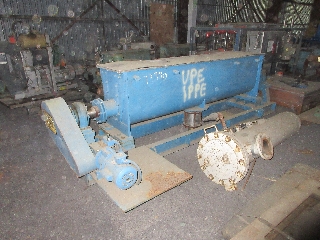

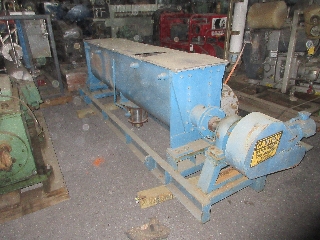

• REBUILT 2.1 cu. ft. operating capacity Jacketed Porcupine Processor designed for batch operation manufactured by Bethlehem Foundry and Machine Company
• Shell is rated for MAWP 50 PSI
• Porcupine surface area is 15 sq. ft. jacket is 9.4 sq. ft. Head flats are 3/4" and 3 & 7/8"shell is 1/4" and jacket is 5/16"

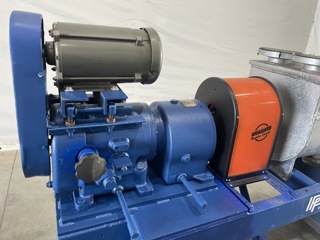

• 230/460 volt motor with a Reynolds reduction gear
• with a 207:1 ratio Steam or hot oil inlets and outlets are all 1" NPT Process inlets an are two 3" and outlets are 3.5"
• Rebuilding included the following: Unit is stripped, cleaned, and shaft and jacket pressure tested Gearbox drained, cleaned, checked and refilled. Motor replaced, unit test run. Stuffing box gaskets replaced and new rotary joint installed. New top head cover gasket replaced, Test run and painted, new coupling guard installed.
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.87 m² (9.4 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 315.6 °C (600 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 315.6 °C (600 °F). Total Heat Transfer Surface Area: 2.3 m² (24.4 ft²). Porcupine Agitator Pressure: 10.3 bar (150 psi). Porcupine Agitator Temperature: 315.6 °C (600 °F). Size: 1203.
