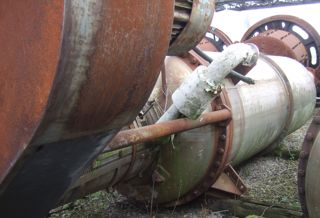

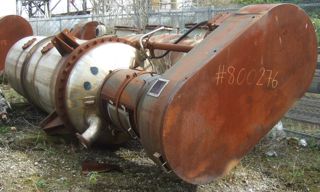

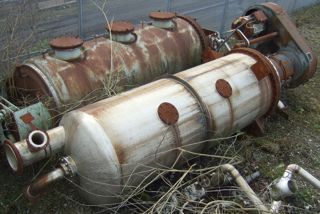

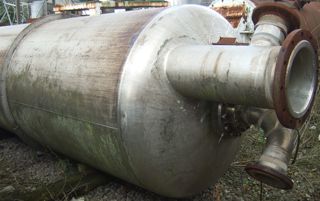

Name: Stainless Steel 316 Chemap AG (Swiss) Pressure Leaf Filter
Brand: Chemap AG (Swiss)
SKU: 800277

Type:

Filter

Subtype:

Pressure Leaf

Manufacturer:

Chemap AG (Swiss)

Condition:

Used

Material:

Stainless Steel 316

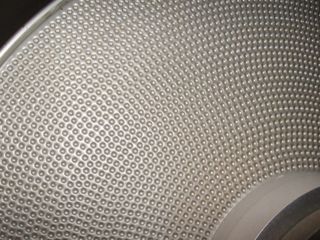

Filtration Area:

80 m² (861.1 ft²)

Diameter:

1,400 mm (55.1 in)

Pressure:

5.7 bar (82.5 psi)

Temperature:

60 °C (140 °F)

Overall Length:

3,700 mm (145.7 in)

Top Head Type:

Dish

Top Head Fastening:

Bolted

Bottom Head Type:

Dish

Bottom Head Fastening:

Welded

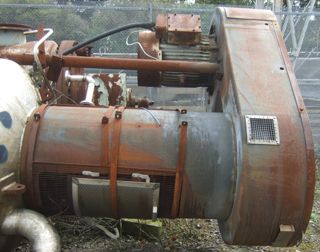

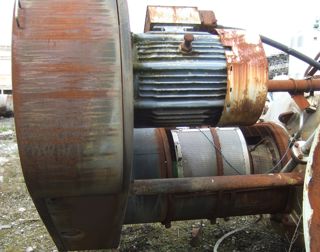

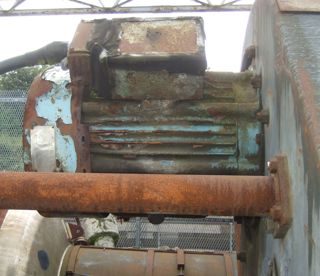

Motor Hertz:

Motor Power:

55 kW (73.8 HP)

Motor Speed (RPM):

1,475

Motor Voltage:

415

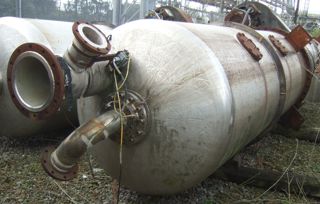

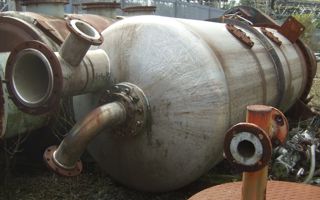

Nozzle Schedule:

openings: top: 1-150mm, 1-50mm,side: 2-200mm, bottom: 1-300mm with 150mm off shoot, 1-150mm (center)

Support Type:

Lugs

Support Details:

mounted on (4) c/steel lugs

Additional Info:

5.69 bar @ -29/+60 deg C packed gland on shaft built to ASME V111 div 1

Stainless Steel 316 Chemap AG (Swiss) Pressure Leaf Filter - IPP# 800277
