Carbon Steel Dryer-Thermal Disc 1,016 mm (40 in) For Sale - IPP# 88925

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: TD48-9

Condition: Unused

Material: Carbon Steel

Diameter: 1,219 mm (48 in)

Length: 2,743 mm (108 in)

Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2299.
Working pressure in the hollow rotor is 100 PSI @ + 50 to 350 degrees F Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.
Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Height: 1,981 mm (78 in). Number of Disc Shafts: 1. Vessel Temperature: 176.7 °C (350 °F). Disc Temperature: 176.7 °C (350 °F). Vessel Pressure: 1.03 bar (15 psi). Disc Pressure: 6.9 bar (100 psi). Operational Mode: Continuous. Heat Transfer Surface Area: 42.7 m² (460 ft²).

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: TD48-9

Condition: Unused

Material: Carbon Steel

Diameter: 1,219 mm (48 in)

Length: 2,743 mm (108 in)

Bepex Torus Disc Cooler U shaped trough, continuous design. Certified by Moorhead Machinery & Boiler Co Moorhead Serial number 605-2300.
Shell rated 15 psi @ 350 degrees. No jacket on trough.
U shaped trough, bolted flat top, with one end bolted for rotor removal. Inside dimensions 48” ID x 9’ long Nominal 106 cubic foot working capacity, approx.
Unit has a tubular rotor with hollow discs mounted on the rotor to allow heating/cooling media to flow through the rotor. The shaft is mounted on outboard bearings, rotary joint on one end, packing glands. Chain and sprocket drive with a gear reducer and 25 HP 3/60/230/460 volt motor. 15 RPM shaft speed. The residence time is adjustable by and overflow weir at the discharge end.

Height: 1,981 mm (78 in). Number of Disc Shafts: 1. Vessel Temperature: 176.7 °C (350 °F). Disc Temperature: 176.7 °C (350 °F). Vessel Pressure: 1.03 bar (15 psi). Disc Pressure: 6.9 bar (100 psi). Operational Mode: Continuous. Heat Transfer Surface Area: 42.7 m² (460 ft²).

Type: Dryer-Thermal Disc

Manufacturer: Strong Scott

Model: TDJ

Condition: Used

Material: Carbon Steel

Diameter: 711.2 mm (28 in)

Length: 1,626 mm (64 in)

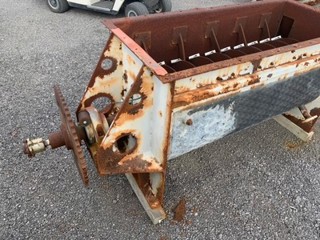

• Torus disc dryer screw 150 psi @ 375 deg FT trough is 64" long x 28" wide x 36" deep Requires 5 HP drive No cover

Number of Disc Shafts: 1. Number of Discs: 10. Jacket Temperature: 190.6 °C (375 °F). Disc Temperature: 190.6 °C (375 °F). Jacket Pressure: 10.3 bar (150 psi). Disc Pressure: 10.3 bar (150 psi).

Type: Dryer-Thermal Disc

Manufacturer: Bepex

Model: Model 60-14

Condition: Unused

Material: Carbon Steel

Diameter: 1,753 mm (69 in)

Length: 4,496 mm (177 in)

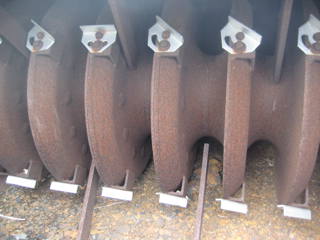

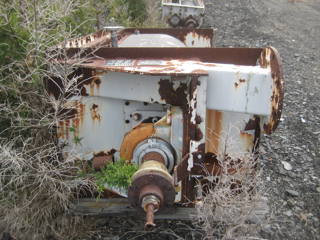

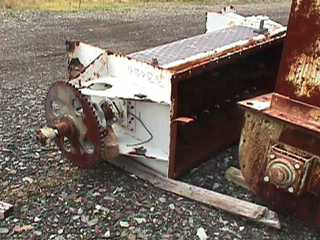

Torus disc dryer The rotor is 60" diameter x 14' long, and is hard faced. The rotor is cored for steam heating Heating medium is steam Trough is 69" wide x 177" long x 84" high with a vapor dome. Total height with dome cover is 154" high. Panel coil jacket on 25% of the dome cover. Continues product flow with retention time is controlled by adjustable product discharge weir. Rotor had hollow discs, and is chain and sprocket drive Outboard bearings, packing glands with N2 seal purge, Johnson rotary joint on shaft.

Height: 3,912 mm (154 in). Number of Disc Shafts: 1. Vessel Temperature: 85 °C (185 °F). Jacket Temperature: 196.1 °C (385 °F). Vessel Pressure: 1.03 bar (15 psi). Jacket Pressure: 13.1 bar (190 psi). Hood/Cover: Yes. Operational Mode: Continuous. Heat Transfer Surface Area: 114.7 m² (1,235 ft²).
