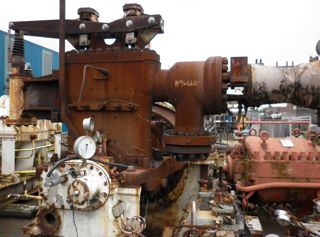

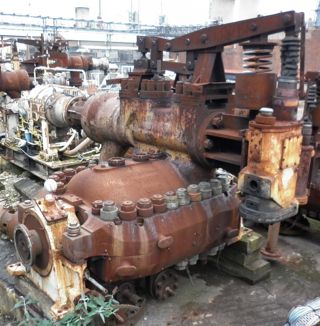

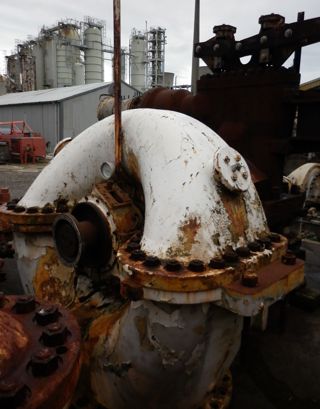

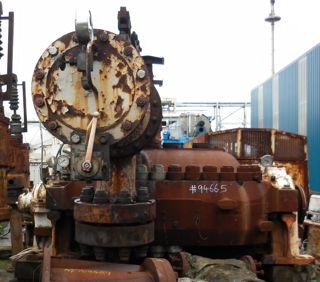

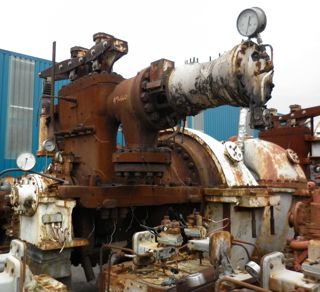

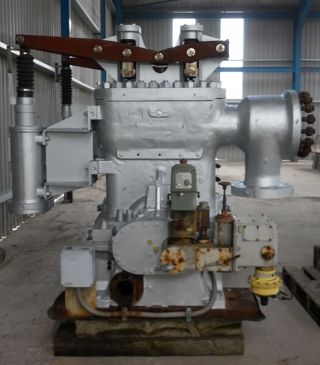

Siemens HG40/25/25 Steam Turbine - IPP# 94663

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: HG40/25/25

Condition: Used

Power: 10,200 kW (13,678 HP)

Speed (RPM): 5660

back pressure turbine. steam consumption 13.55 lb/BHP/hr, Total flow 148200 lbs/hr.

Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 504.4 °C (940 °F). Inlet Steam Flow: 84,067 kg/h (185,337 lb/h). Outlet Pressure: 14.1 bar (205 psi). Outlet Temperature: 248.9 °C (480 °F). Outlet Steam Flow: 67,222 kg/h (148,200 lb/h). Backpressure?: Yes.

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: EG-400-2

Condition: Unused

Material: Stainless Steel Other

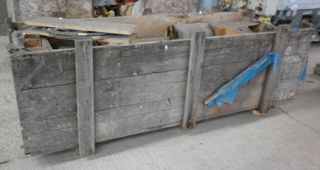

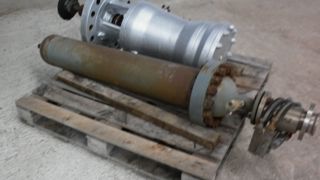

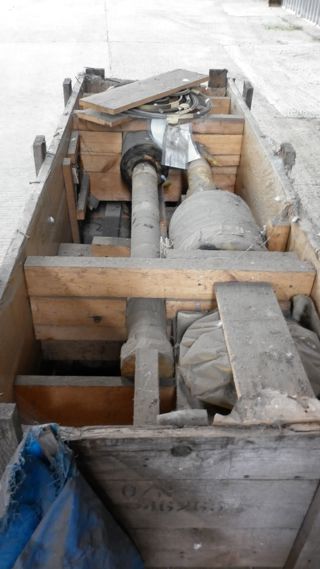

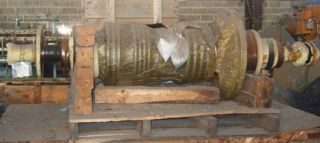

Spare rotor for steam turbine stock # 701561 Manufactured from a forged blank of Alloy, containing impulse blades, reaction blades, and moving blades.

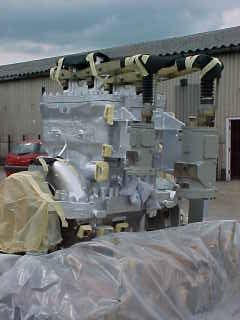

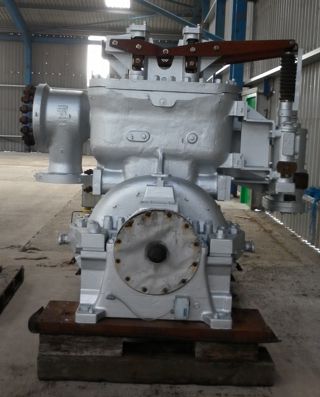

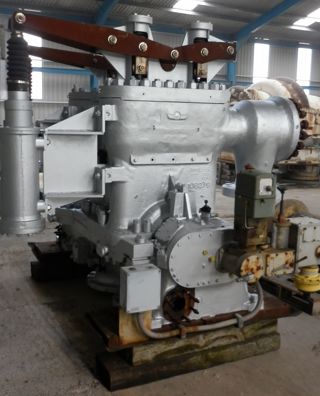

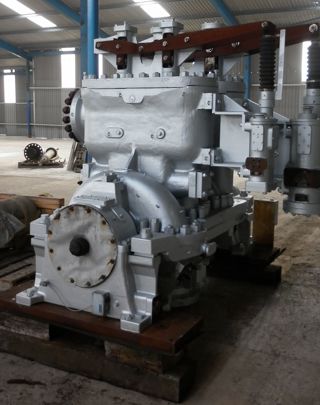

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: EG-400-2

Condition: Unused

Material: Carbon Steel

Power: 8,457 kW (11,341 HP)

Speed (RPM): 6076-7975

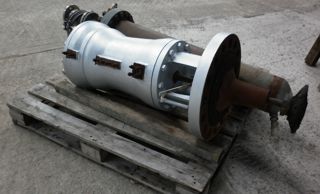

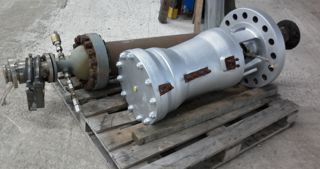

• Spare parts & spare rotor available separately.

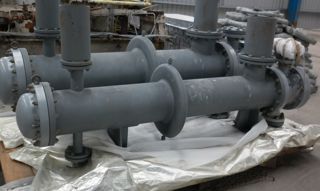

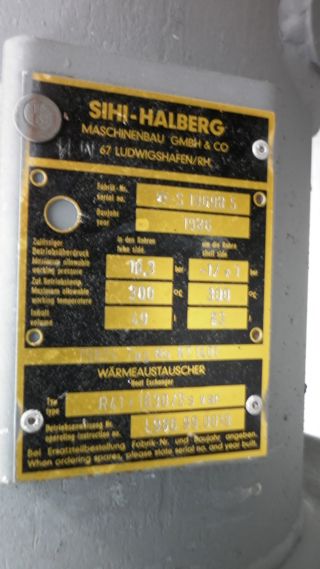

• With SIHI gland steam condenser.

Single cylinder extraction backpressure of Axial flow type, extraction steam 205 psi (14.2 bar),Steam consumption 130 ton/hr.

Inlet Pressure: 40.7 bar (590 psi). Inlet Temperature: 385 °C (725 °F). Inlet Steam Flow: 132,086 kg/h (291,200 lb/h). Outlet Pressure: 6.4 bar (93 psi). Extraction?: Yes. Extraction Points: 1. Extraction Details: Single cylinder extraction at 205psi.. Backpressure?: Yes. Stages: 1. Rotation Direction: Clockwise.

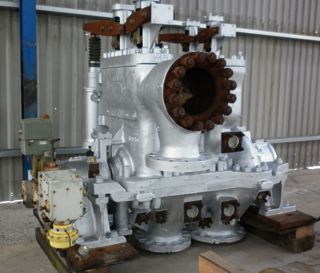

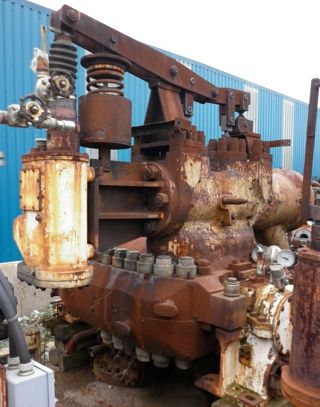

Type: Turbine

Subtype: Steam

Manufacturer: Siemens

Model: K-1100-2

Condition: Unused

Material: Carbon Steel

Power: 6,048 kW (8,110 HP)

Speed (RPM): 3857-4560

condensing turbine. inlet pressure normal 190 psig steam consumption 9.9 lb/BHP/hr, Total flow 83000 lbs/hr.

Inlet Pressure: 14.5 bar (210 psi). Inlet Temperature: 248.9 °C (480 °F). Inlet Steam Flow: 39,281 kg/h (86,600 lb/h). Outlet Pressure: 0.12 bar (1.7 psi). Outlet Temperature: 210 °C (410 °F). Outlet Steam Flow: 37,648 kg/h (83,000 lb/h). Condensing?: Yes. Stages: 1+21. Rotation Direction: Counter-Clockwise.
