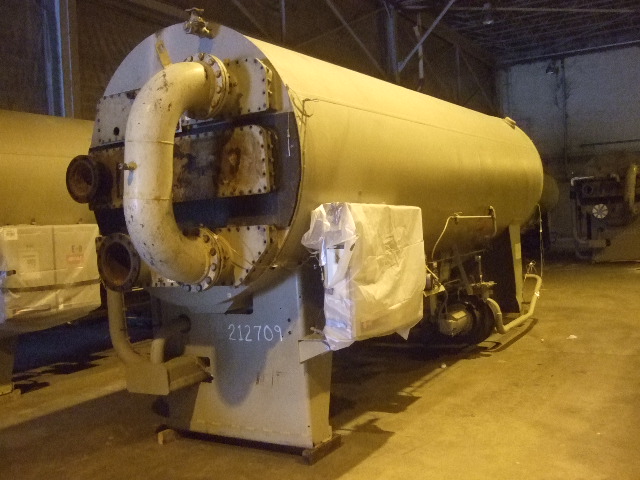

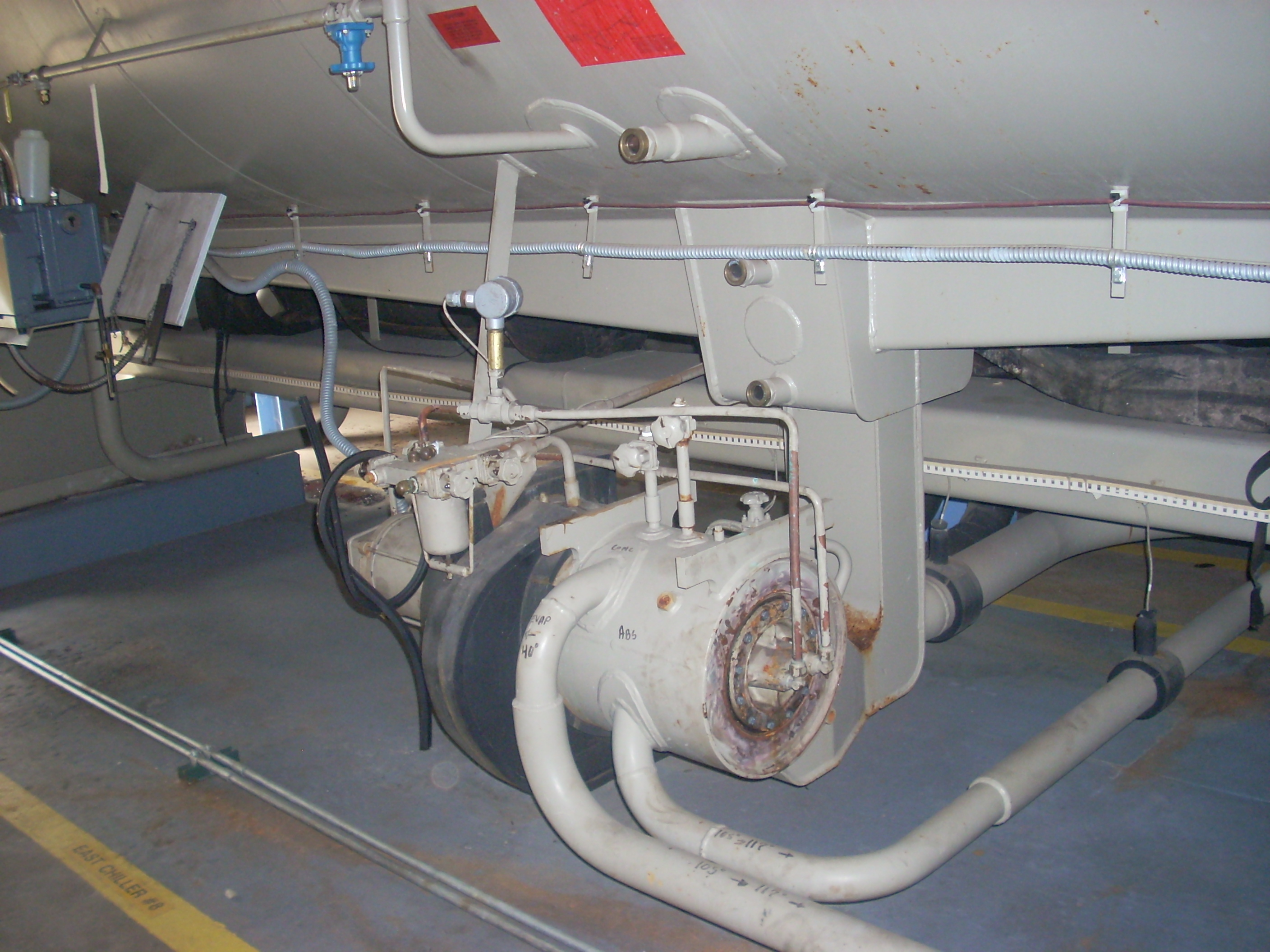

Chiller For Sale - IPP# 212709

Type: Chiller

Subtype: Low Temp

Manufacturer: Trane

Model: RTHB255FLEOSLWPOOOUNC4LF2LFOOQUO

Condition: Used

Capacity Design: 771,100 kcal/h (255 Ref. Ton)

Pressure: 20.7 bar (300 psi)

CentraVac Low temperture, Series R chiller

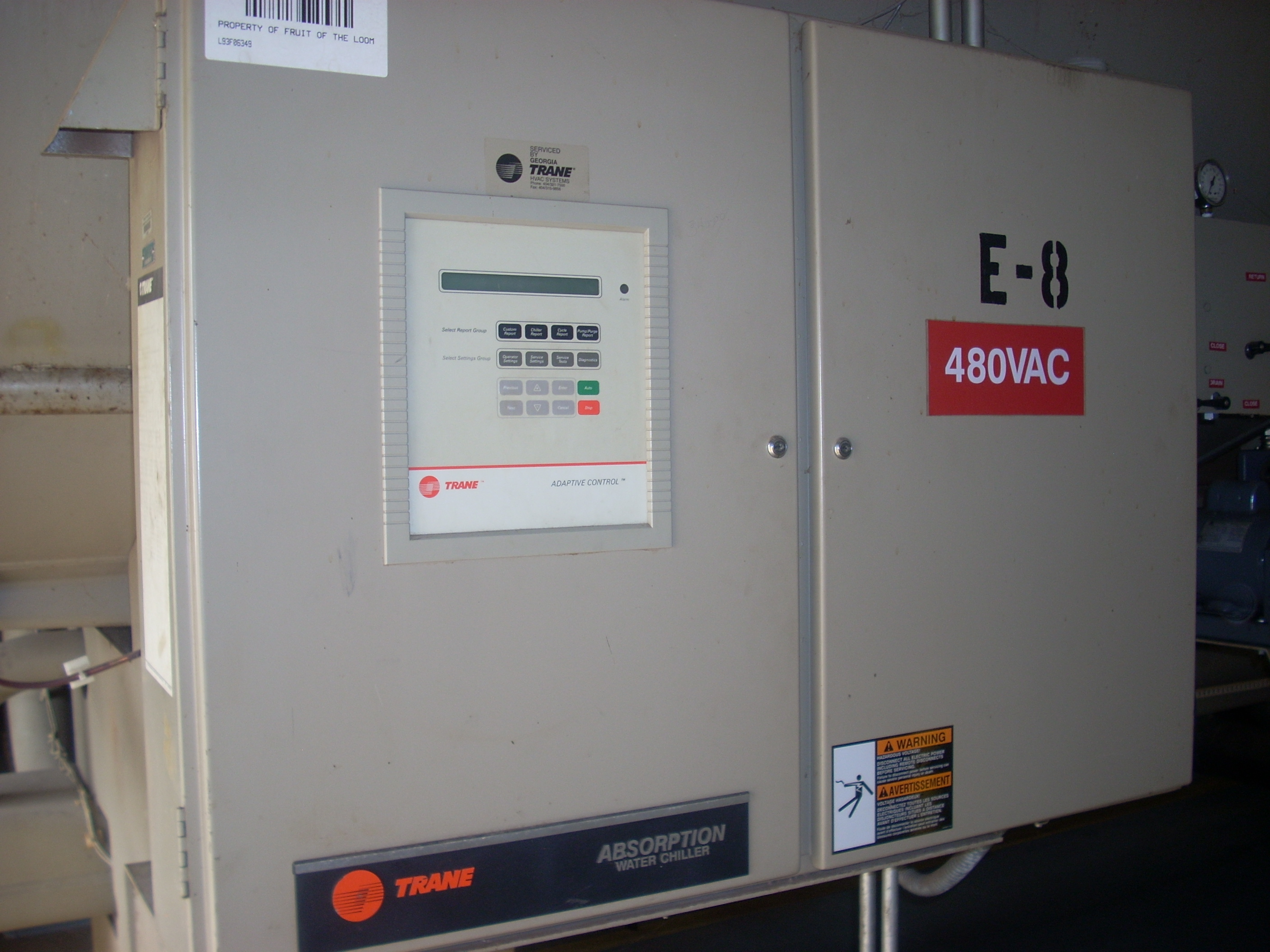

• Drive motor: 197 kW, rated for 460 volt, 3 ph, 60 Hz Requires 705 lbs Evaporator rated for 40% Glycol at 428 gpm, inlet at 33.8 degrees F, and outlet at 25 degrees F. Condenser NB # 44012, serial # 44012, built in 1996, rated for 300 psi at 300 degrees F. ( 2 pass design) Low tempreture unit can obtain range of 39-20 degrees F. 6 inch connections process & water side. Electronic controls, rated for explosion proof atmosphere.

Product Flow Rate: 98.4 m3/h (428 GPM). Refrigerant Type: R-22. Temperature: -3.9 °C (25 °F). Height: 2,150 mm (84 in). Length: 3,500 mm (137 in). Width: 1,300 mm (52 in).

Type: Chiller

Subtype: Compressor

Manufacturer: Trane

Model: RTHD UC1E HX0U AE1A 3RAL FIAZ LALA VCQA EXAA BXA2 09DK UA6X.

Condition: Used

Material: Carbon Steel

Capacity Design: 604,800 kcal/h (200 Ref. Ton)

Refrigerant Type: R-134a

rotary chiller Optimus helical rotary, Hermetically sealed motor, Water cooled.

Type: Chiller

Subtype: Compressor

Manufacturer: Trane

Model: RTHD UC1E HX0U AE1A 3RAL FIAZ LALA VCQA EXAA BXA2 09DK UA6X

Condition: Used

Material: Carbon Steel

Capacity Design: 604,800 kcal/h (200 Ref. Ton)

Refrigerant Type: R-134a

rotary chiller Optimus helical rotary Hermetically sealed motor Water cooled.

Type: Chiller

Subtype: Low Temp

Manufacturer: Trane

Model: RTHC1D1SFSOD1L3E11FVOUCO

Condition: Used

Capacity Design: 453,600 kcal/h (150 Ref. Ton)

Pressure: 13.8 bar (200 psi)

• Water cooled rotary chiller Requires 575 lbs. refrigerant. Evaporator rated for Propylene Glycol 3 pass, inlet @ 32 degrees F, outlet @ 25 degrees F. Condenser rated for cooling water, 2 pass, 85 degrees F inlet and 95 degrees F outlet. Machine efficiency rated for 1.377 kw/ton.
• Trane condenser NB # 74806 Serial # 24806, rated for 200 psi at 300 degrees F. Built in 2000. Inlet and outlet nozzles are 9". 128" long x 75" wide x 80" high.
• Electronic controls and rated for explosion proof atmosphere.

Product Flow Rate: 139.6 m3/h (607 GPM). Refrigerant Type: R-134a. Temperature: -3.9 °C (25 °F). Height: 2,050 mm (80 in). Length: 3,250 mm (128 in). Width: 1,900 mm (75 in).
