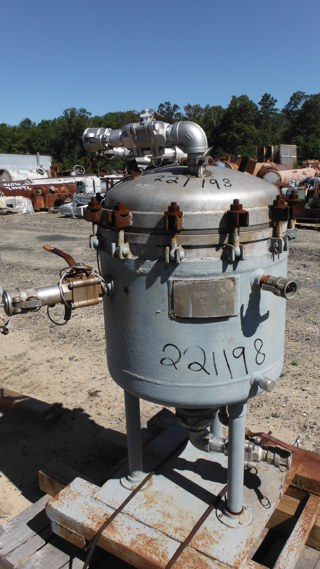

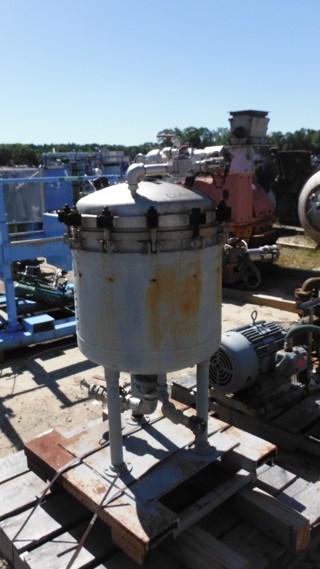

Name: Stainless Steel 316 Pressure Leaf Filter
Brand: Sparkler
SKU: 241128

1.05 m² (11.3 ft²) Stainless Steel 316 Pressure Leaf Filter

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18-S-7

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.05 m² (11.3 ft²)

Pressure: 4.1 bar (60 psi)

0.141 " tank thickness with scavenger plate 0.414 CuFt cake capacity 7 plates (number of plates included)

Temperature: 176.7 °C (350 °F).

Stainless Steel 316 Sparkler 18-D-8 Pressure Leaf Filter

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18-D-8

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.2 m² (12.9 ft²)

Diameter: 50.8 mm (2 in)

Filter body Cake capacity: 1.552 Cu. Ft. (No plates or internals.)

Orientation: Horizontal. Pressure: 4.1 bar (60 psi). Temperature: 176.7 °C (350 °F). Jacket: Yes. Jacket Pressure: 3.4 bar (50 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 316. Jacket Temperature: 176.7 °C (350 °F). Cake Volume: 0.04 m3 (1.55 ft3). Number of Filter Elements: 8. Vessel Liquid Capacity: 82.1 L (21.7 gallons). Number of Scavenging Elements: 8.

Stainless Steel 316 Sparkler 18 D 12 Pressure Leaf Filter

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18 D 12

Condition: Used

Material: Stainless Steel 316

Filtration Area: 2 m² (22 ft²)

Diameter: 457.2 mm (18 in)

Internal pressure rating: 60psi @ -20 to 350 degree F Jacket pressure rating: 14.5psi @ -20 to 350 degree F (12) 18" Deep plates. 70 Gallon volume, Vessel dimensions: 2' diameter x 3' straight side

Orientation: Vertical. Pressure: 4.1 bar (60 psi). Temperature: 176.7 °C (350 °F). Overall Length: 914 mm (36 in). Jacket: Yes. Jacket Pressure: 1 bar (14.5 psi). Jacket Type: Standard. Jacket MOC: Carbon Steel. Jacket Temperature: 176.7 °C (350 °F). Vessel Liquid Capacity: 265 L (70 gallons).
