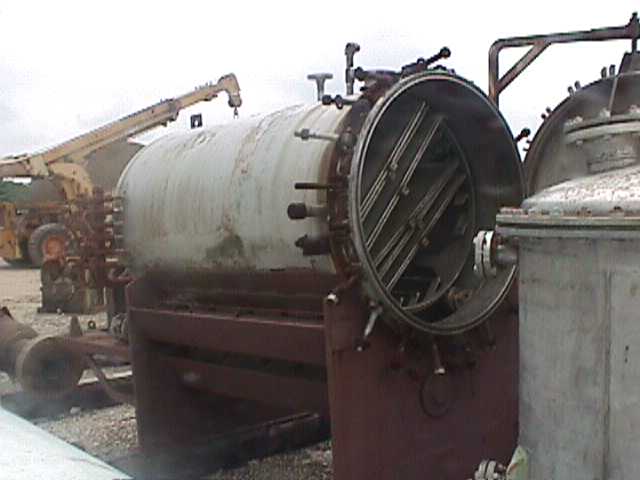

Stainless Steel 304 Sparkler HRC-100 Pressure Leaf Filter - IPP# 37994

  • Stainless Steel 304 Sparkler HRC-100 Pressure Leaf Filter - IPP# 37994 Stainless Steel 304 Sparkler HRC-100 Pressure Leaf Filter - IPP# 37994
  • Stainless Steel 304 Sparkler HRC-100 Pressure Leaf Filter - IPP# 37994
Overview
Filter
Pressure Leaf
Sparkler
HRC-100
Used
Stainless Steel 304
Capacity
10.9 m² (117 ft²)
Dimensions
1,200 mm (48 in)
Horizontal
1,650 mm (65 in)
Other Specifications
5.2 bar (75 psi)
254 mm (10 in)
Jacket
Yes
5.5 bar (80 psi)
Half Pipe/Limpet
Additional Information

(12) 48" long horiz filter plates rotate to vert position for discharge Designed for dry cake discharge via screw conveyor (conveyor and conveyor drive missing) Approx 560 gal volume 18 cu ft cake capacity (1/2" clearance) Designed for pneumatic discharge and hydraulically rotating plates (Vibrators and hydraulic rotating pump missing)
