Rosenmund and Cogiem Filter 0.75 m² (8.1 ft²) Hastelloy - C276 For Sale - IPP# 245503

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Guedu

Model: Filtre Pilote

Condition: Used

Material: Stainless Steel 316

Filtration Area: 0.37 m² (4 ft²)

Diameter: 541 mm (21.3 in)

• Certified by Chaudronnerie Des Roches (France).
• Jacketed on straight side only.
• EX Proof Controls

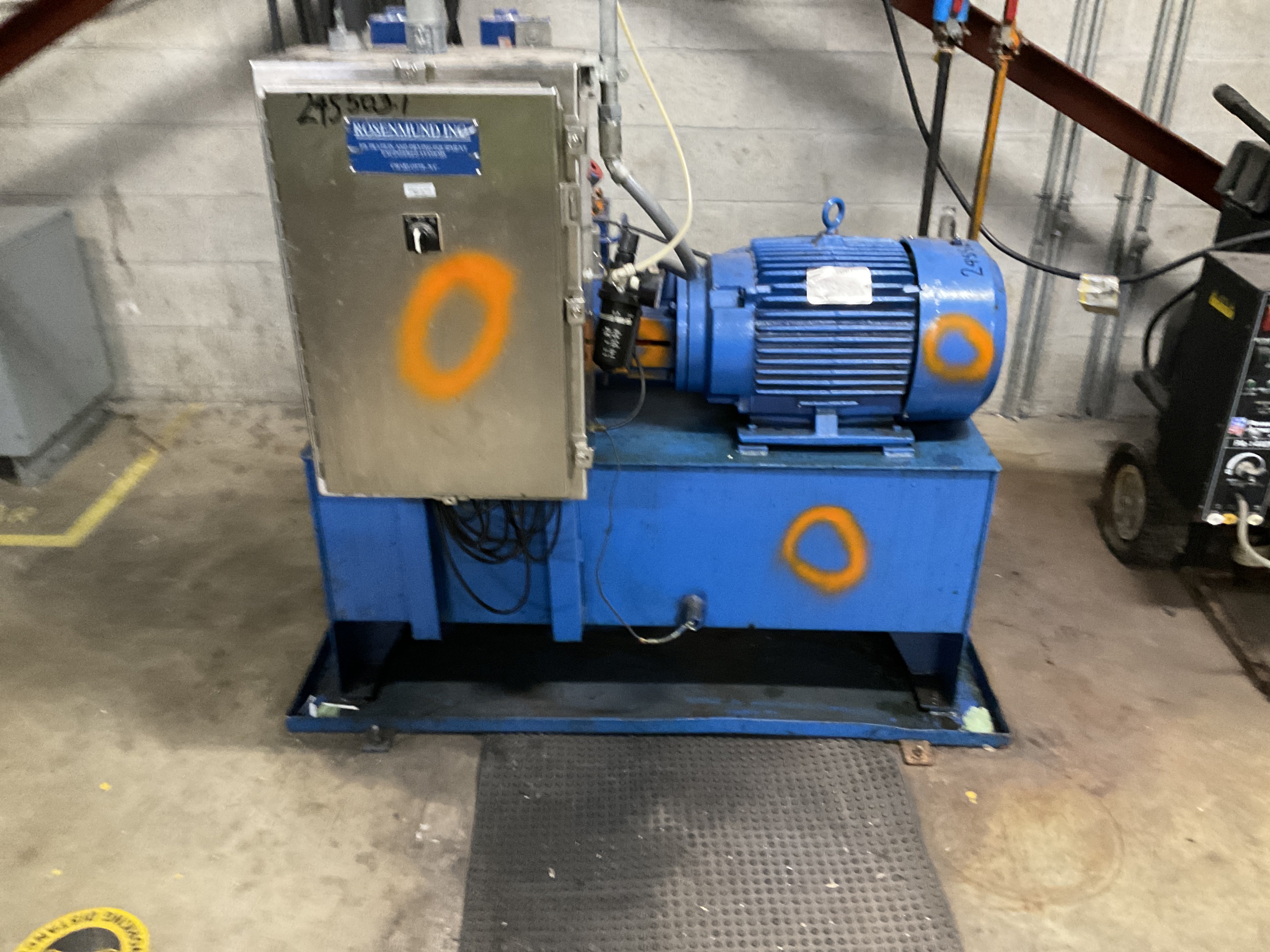

• AC drive motor on hydraulic unit for moving the agitator shaft up and down: Reliance Duty Master AC. 1.5 HP, 1155 rpm Frame 182TD, UL listed3 phase 60 Hz, 230/460 v. Direct mounted to the top of the hydraulic tank.
• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Pressure: 3 bar (44 psi). Temperature: 165 °C (329 °F). Overall Length: 1,850 mm (72 in). Overall Height: 2,400 mm (94 in). Internal Finish: Buff Polish. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 6.1 bar (88 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 316. Jacket Temperature: 165 °C (329 °F). Vessel Liquid Capacity: 102.2 L (27 gallons).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Cogiem

Model: FFP-030-DFM

Condition: Used

Material: Hastelloy - C276

Filtration Area: 0.3 m² (3.2 ft²)

Pressure: 6 bar (87 psi)

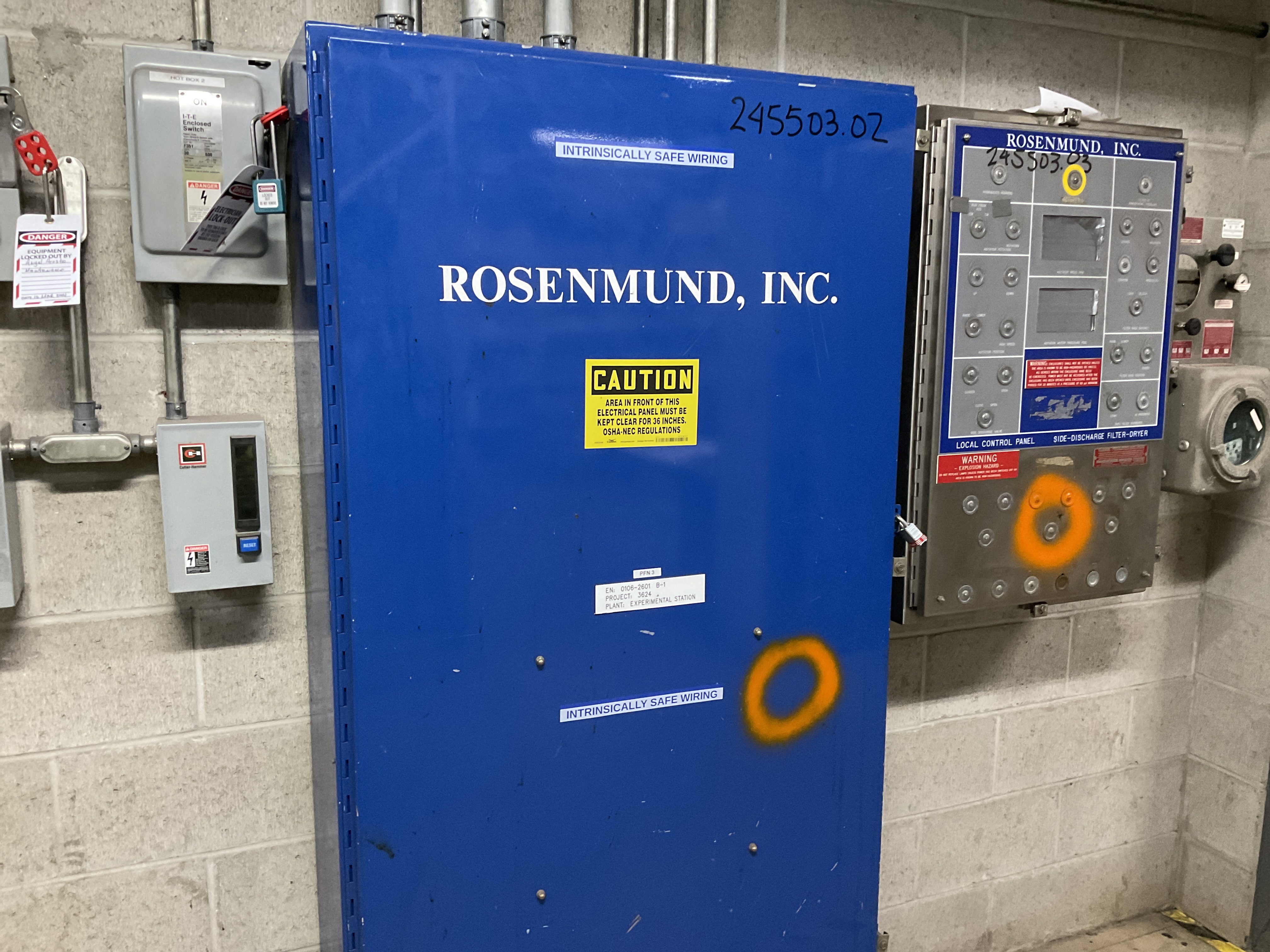

Filter interior is polished to a mirror polish (220 grit)With cored and heated shaftshaft rated for 87 psi at 208 degrees F.Hydraulic driven agitator rotation 1:14 from 6-58 rpm.With stuffing box agitator seal with gas purge. Hydraulic power pack operates the following.Agitator up/down, Bottom openingtiltingand the hatchPower pack is driven by a Reliance 10 hp 460volt, 3 ph motorSide solids dischargelamped bottom for heads removalTilting type filterWith 316 SS base and cabinetexterior parts polished to an 80 grit finishAll gaskets are PTFE.Filter has washing nozzles, and Explosion proof lighting for filter interiorAlso included is a Rosenmund Apovac Vacuum systemincluding vacuum pump and ring -Liquid vessel and coolerApovac model 1.5/660 PMSH 156 D2Serial # 51 050with Vacuum pump by Gepruft With PLC control systemhas operators controls mounted on hydraulic station

• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtrodry FPP 100 SD/FM

Condition: Used

Material: Hastelloy - C276

Filtration Area: 1 m² (10.8 ft²)

Diameter: 1,200 mm (47.2 in)

• Side bottom discharge with automatic valve

Pressure: 6.9 bar (100.1 psi). Temperature: 177 °C (350.6 °F). Vacuum: Yes. Internal Finish: Ra 0.5. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.4 bar (150.1 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 177 °C (350.6 °F). Agitator Cored for Heating/Cooling: Yes. Vessel Liquid Capacity: 1,500 L (400 gallons).
