Hastelloy - C22 Clad Rosenmund and Cogiem Filter - IPP# 706925

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Charles Thompson

Model: CT-2525

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5 m² (53.8 ft²)

Diameter: 2,500 mm (99.4 in)

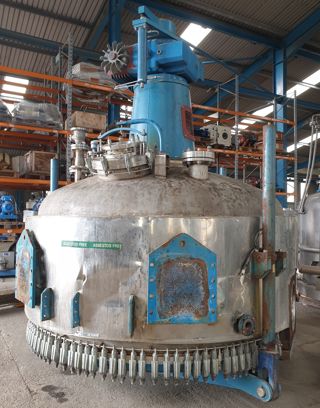

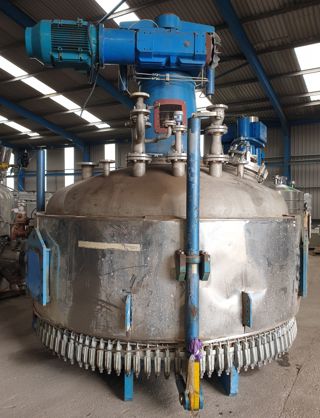

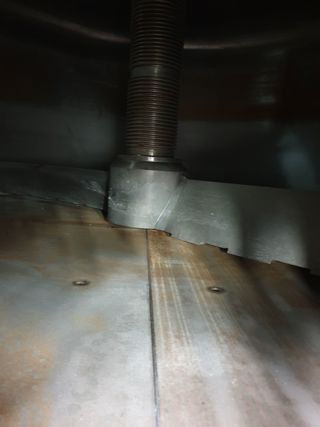

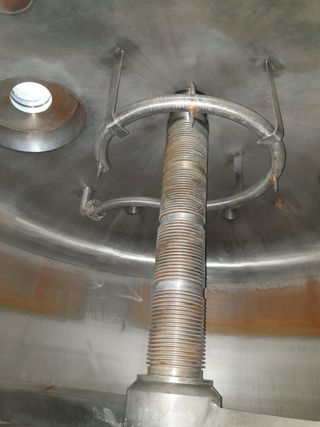

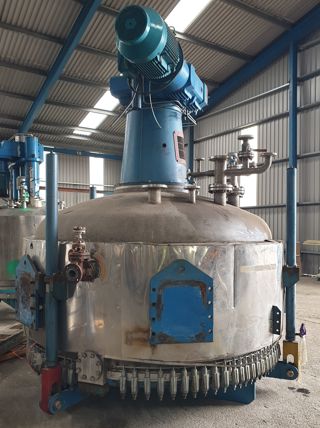

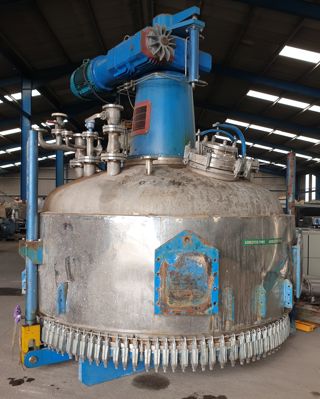

• Agitated jacketed pressure filter/dryer. 400mm agitator stroke, 400mm product discharge lateral, 15 rpm agitator speed, Zone 2 IIB T3 classification. Internal wash ring (pipe), clamped flat filter bed with hydraulic raise/lower mechanism and castors for removing.
• Valve and filter bed raise/lower mechanism driven by a power pack, power pack with a 3kw, 3/50/415 volt, 1440 rpm CE IP55 Ex NII T3 motor.
• Side Discharge.

Pressure: 4 bar (58 psi). Temperature: 150 °C (302 °F). Overall Length: 1,050 mm (41.3 in). Jacket: Yes. Jacket Pressure: 4 bar (58 psi). Jacket MOC: Carbon Steel. Jacket Temperature: 150 °C (302 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund AG

Model: FML 250

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.25 m² (2.7 ft²)

Diameter: 550 mm (21.7 in)

• Agitated jacketed Rosenmund filter dryer
• Batch size 20 to 25kg
• Internal design pressure 0.39 MPa (3.9 bar) + vacuum @ -20/170 degrees C (120 liter)
• Coil jackets 0.6 MPa (6 bar) @ -20/170 degrees C (10 liter)
• Internal working pressure 0.15 MPa (1.5 bar) @ 100 degrees C
• jacket 0.6 MPa (6 bar) @ 100 degrees C
• 550mm diameter x 828mm from agitator opening to filter plate,
• Chamber insulated and with 316L stainless steel cladding, side discharge with 316L stainless steel glove box
• Ex motor,
• Filter plate has a raise/lower and a hydraulic lock mechanism driven by the same power pack.
• Unit also includes the following:
• (1) stainless steel condenser, (1) stainless steel tank, (1) heating controller
• Can be used with 248331 APOVAC system for vacuum at an additional cost.
• Side discharge

Pressure: 3.9 bar (56.6 psi). Temperature: 170 °C (338 °F). Overall Length: 828 mm (32.6 in). Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 170 °C (338 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RSD 0.03-975-98

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.03 m² (0.32 ft²)

Pressure: 6 bar (87 psi)

• Agitated Pressure Filter The 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree C The 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C.
• With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaning
• Side bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controls.
• Filter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.
• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Temperature: 200 °C (392 °F). Jacket: Yes.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtodry FPP XD 400 FM

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Overall Height: 6,400 mm (252.8 in). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
