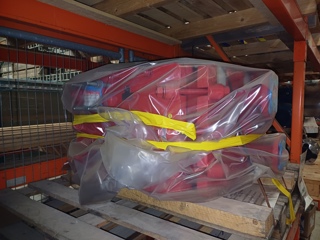

Block Heat Exchanger 21 m² (226 ft²) Graphite For Sale - IPP# 706427

Type: Heat Exchanger

Subtype: Block

Manufacturer: Hykarb

Model: CZ39

Condition: Refurbished/Rebuilt

Material: Graphite

Heat Transfer Surface Area: 3.6 m² (38.8 ft²)

Orientation: Horizontal

asset #10005701 design code: ASME V111 DIV 1 PED CAT ; SEP liquid group 1

Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

• Estimated surface area to be 76 ft 2
• cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.96 m² (21.1 ft²)

cubic block

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri

Model: SD 63-3125

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.6 m² (81.8 ft²)

Orientation: Vertical

Cylindrical block Heat Exchanger

Shell Pressure: 2 bar (29 psi). Shell Temperature: 100 °C (212 °F). Nozzle Schedule: openings: heat: 2-50mm, shell: 1-50mm, 1-30mm, 1-125mm. Process Pressure: 2 bar (29 psi). Process Temperature: 100 °C (212 °F).
