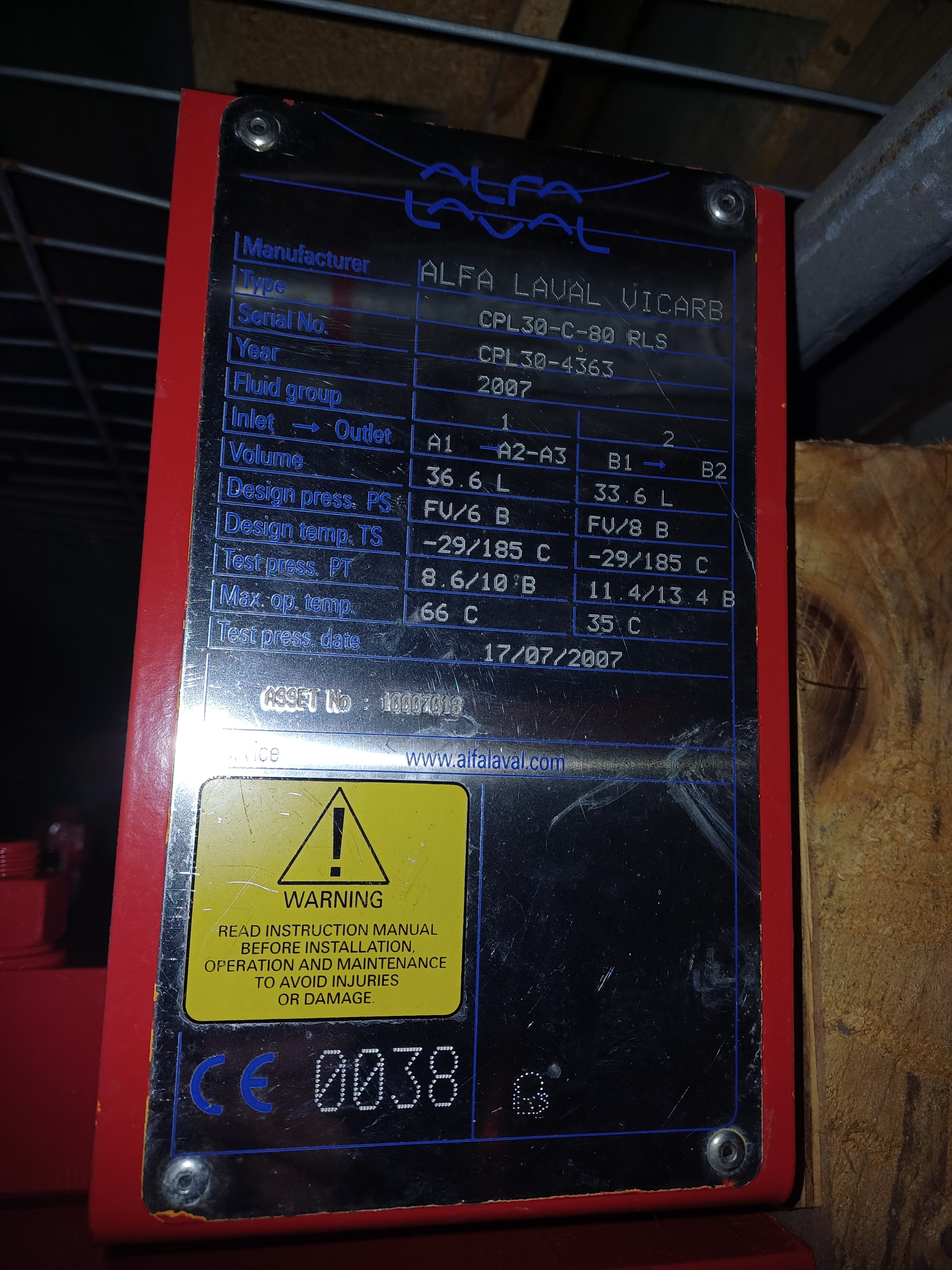

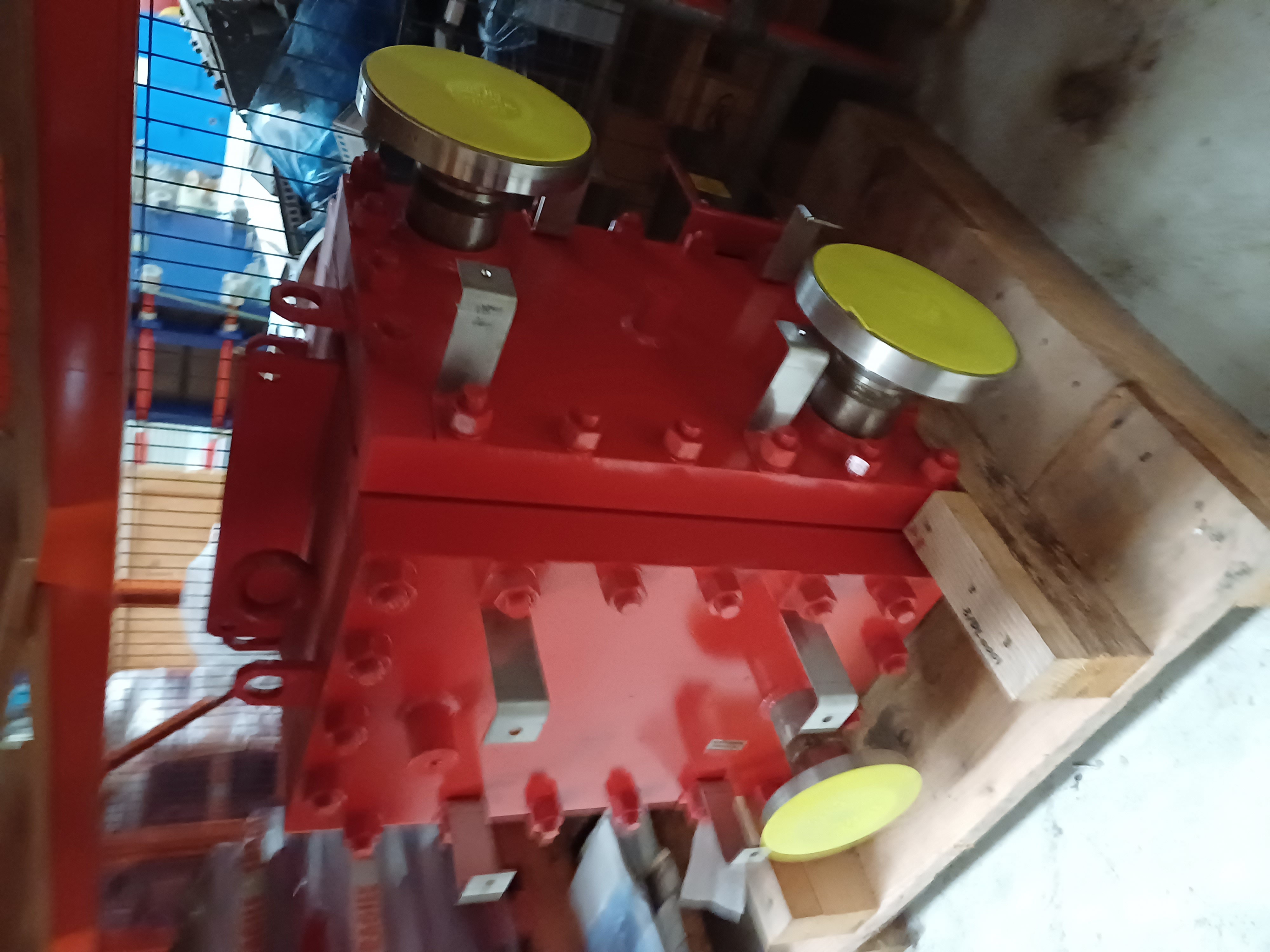

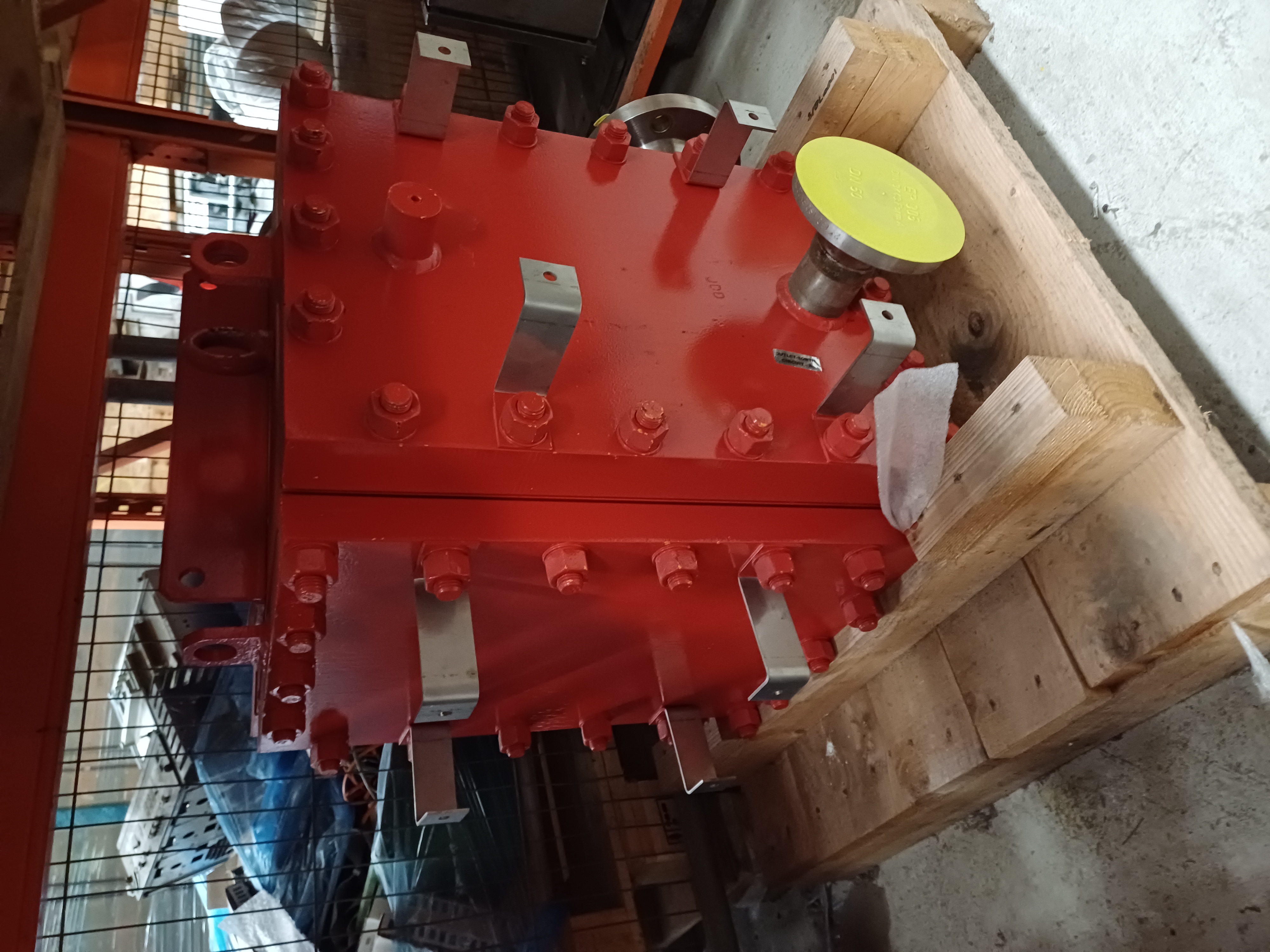

Compabloc welded plate heat exchanger manufactured by Alfa Laval Vicarb asset #10007018, design pressure process side: 6 bar + full vacuum @ -29/185 degrees C (36.6 liter), service side: 8 bar + full vacuum @ -29/185 degrees C (33.6 liter) 2 pass process side, 4 pass service side design code: ADM 2000 (PED) CAT III, fluid group 1, CE0038
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: M30-FD
Condition: Unused
Material: Stainless Steel 316
Heat Transfer Surface Area: 938 m² (10,100 ft²)
Nozzle Schedule: - Inlets: (2) 12" - Outlets: (2) 12"
CRN: P-9782.27 channel plates 88.25 in. x 39 1/8in. x 0.6 mm thick Print weight 24,034 lbs
Hot-side Pressure: 20.7 bar (300 psi). Hot-side Temperature: 110 °C (230 °F). Housing Material: Stainless Steel 316. Number of Plates: 588.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: A10-BFD Type A
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 8.3 m² (89 ft²)
Length: 42 mm (1.65 in)
CS frame
Nozzle Schedule: - Nozzle size: 6" for process and service.. Cold-side Pressure: 150 bar (2,200 psi). Cold-side Temperature: 230 °C (446 °F). Hot-side Pressure: 150 bar (2,200 psi). Hot-side Temperature: 230 °C (446 °F). Housing Material: Carbon Steel. Number of Plates: 36.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: 16-FG
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 3.2 m² (34 ft²)
Cold-side Pressure: 10.3 bar (150 psi)
plate and frame heat exchanger
Cold-side Temperature: 121.1 °C (250 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 121.1 °C (250 °F).
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: TLM250 KBGL
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 20.2 m² (217.4 ft²)
Nozzle Schedule: openings : 4-100mm 316Ti stainless steel (1.4571)
plate heat exchanger, Certification: CE0090, pressure both side 10 bar @ 120 degrees C (31.9 & 31.9 liter) 1492kw, 316 stainless steel (1.4404) plates, carbon steel pressure plate and frame.
Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 120 °C (248 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 120 °C (248 °F). Housing Material: Carbon Steel. Number of Plates: 77.
