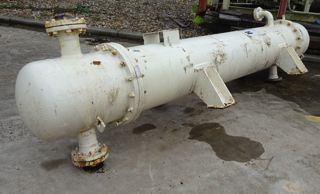

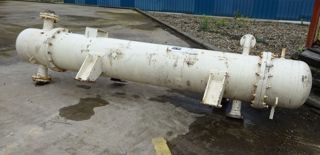

IPP# 209913, 7 m² (75 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale
Add To Quote
Condition:
Used
Material:
Stainless Steel 316
Manufacturer:
Filtration transfer ltd
Heat Transfer Surface Area:
7 m² (75 ft²)
Orientation:
Vertical
Shell Pressure:
6.4 bar (92.4 psi)
Shell Temperature:
25 °C (77 °F)
Shell Material:
Stainless Steel 304
Tube Pressure:
5.2 bar (75.6 psi)
Tube Temperature:
40 °C (104 °F)
Tube Material:
Stainless Steel 316
Tubesheet Material:
Stainless Steel 304
Shell Diameter:
273 mm (10.7 in)
Length:
4,053 mm (159.6 in)
Tube-side Passes:
4
Tube Number:
40
Tube Diameter:
20 mm (0.79 in)
Tube Length:
2,977 mm (117.2 in)
Nozzle Schedule:
- Openings: tubeside: 2-38mm, 2-19mm, shellside: 2-38mm, 2-19mm
Additional Info:
(2) bonnet heads, Insulation: fully insulated
