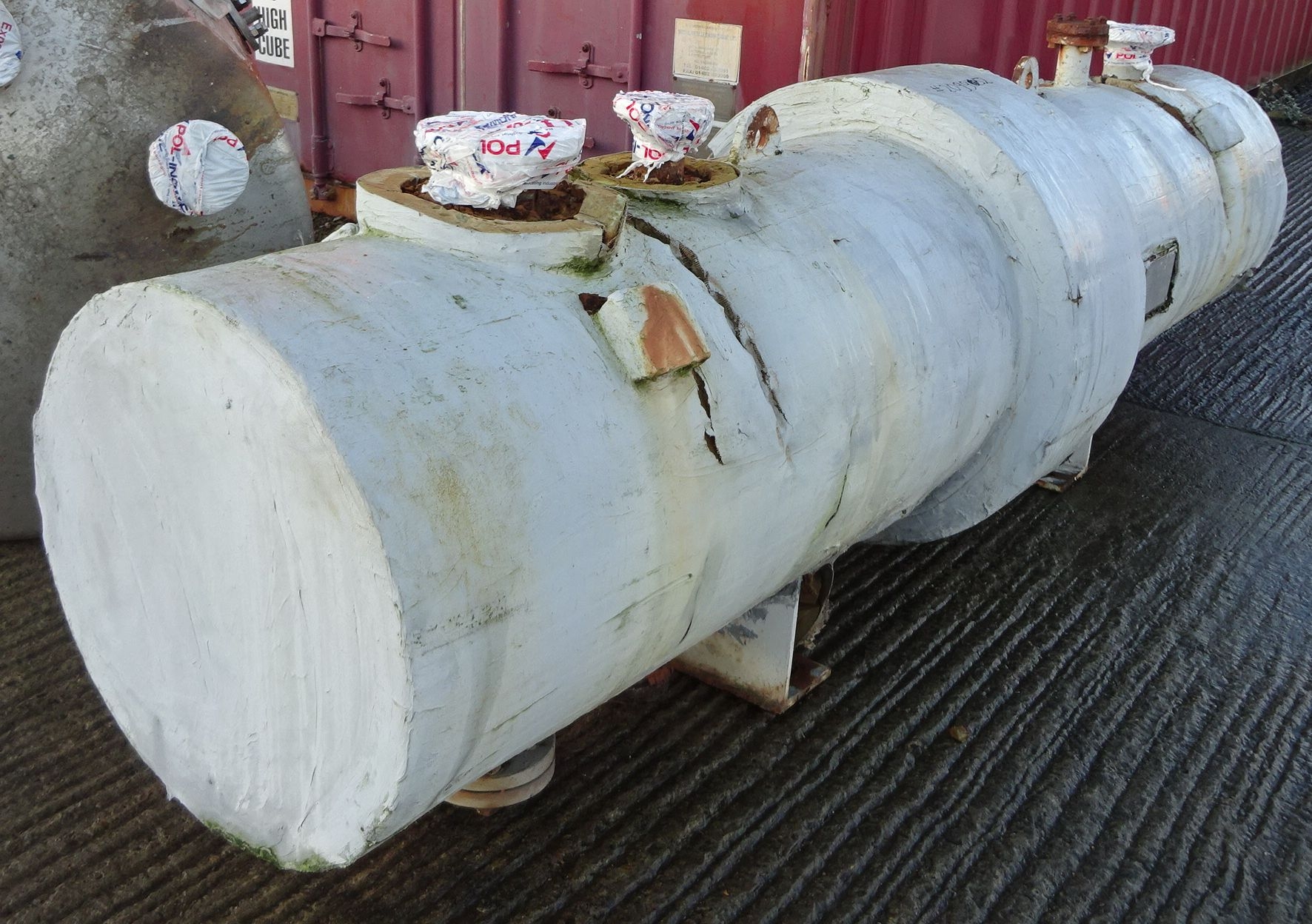

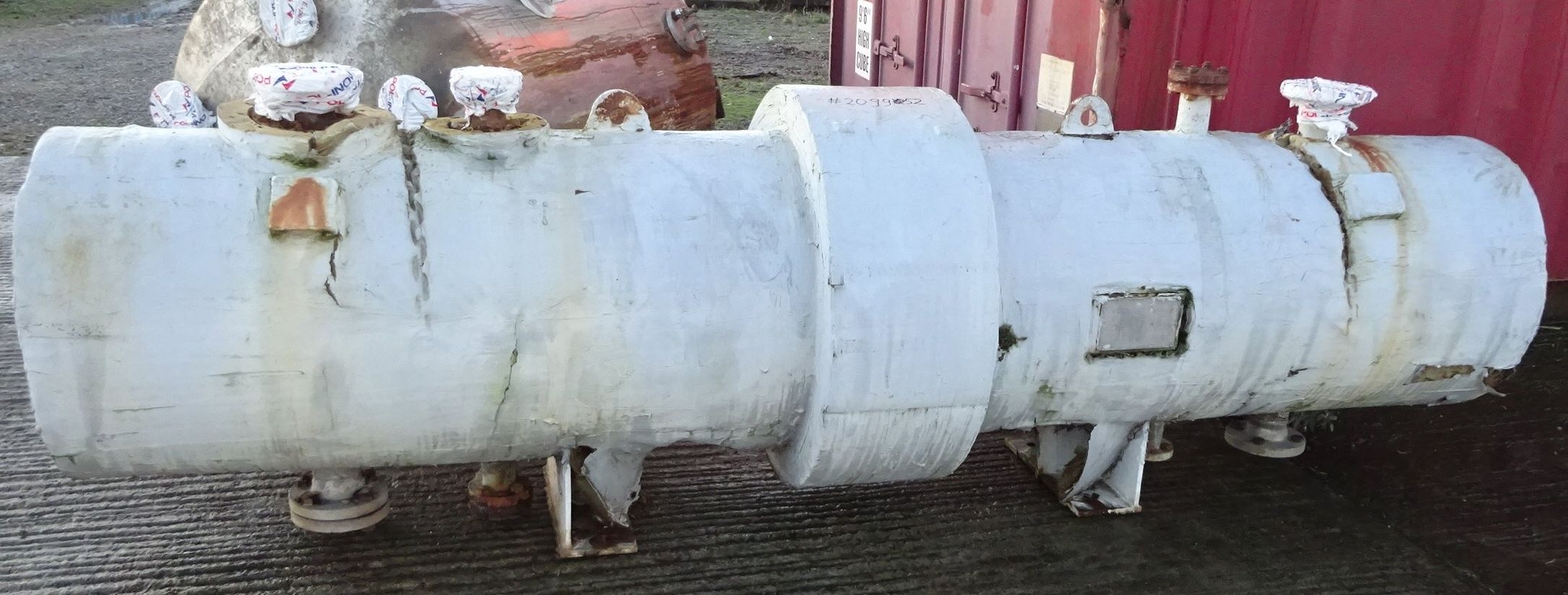

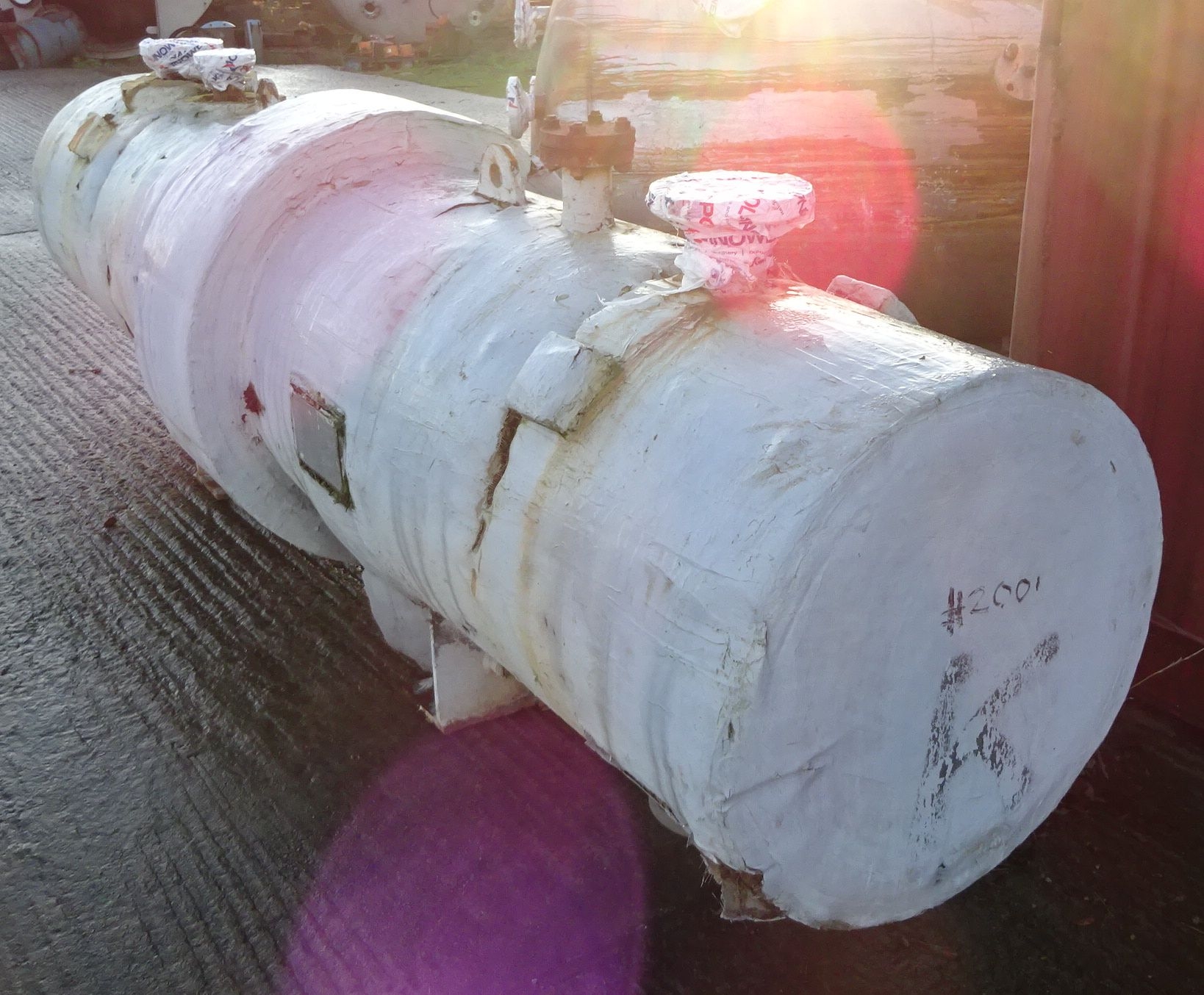

Stainless Steel 316 Hunt Thermal Engineering Ltd B.E.M Shell and Tube Heat Exchanger - IPP# 209952

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Filtration transfer ltd

Model: B.E.M

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 27.8 m² (299.2 ft²)

Orientation: Horizontal

(2) carbon steel bonnet heads,

Shell Pressure: 3.8 bar (55.3 psi). Shell Temperature: 235 °C (455 °F). Shell Material: Stainless Steel 304. Tube Pressure: 5.2 bar (75.6 psi). Tube Temperature: 60 °C (140 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 441 mm (17.4 in). Head Material: Carbon Steel. Length: 3,450 mm (135.3 in). Tube-side Passes: 2. Tube Number: 194. Tube Diameter: 20 mm (0.79 in). Tube Length: 2,450 mm (96 in). Nozzle Schedule: - Openings: tubeside - 2-100mm, 1-19mm; shellside - 1-200mm, 1-75mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Johnson Hunt LTD

Model: B.E.M

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 33.5 m² (361 ft²)

Orientation: Horizontal

Volume tubeside: 0.243 m3 Volume shell: 0.128 m3 design pressure tubeside 3.7 bar + full vac @ 100 deg C Additional features: expansion bellows

Shell Pressure: 6 bar (87 psi). Shell Temperature: -12 °C (10.4 °F). Shell Material: Carbon Steel. Tube Pressure: 3.7 bar (53.7 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 465 mm (18.3 in). Head Material: Stainless Steel 316. Length: 2,750 mm (109.1 in). Tube-side Passes: 1. Tube Number: 152. Tube Diameter: 20 mm (0.79 in). Tube Length: 1,800 mm (71.3 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cust-O-Fab

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 556 m² (6,000 ft²)

Orientation: Horizontal

• 1248 straight "Lo FIN" finned tubes
• 0.75" diameter x 0.065" under fin x approx. 10' long
• Four 4" auxiliary connections
• Four 1" vents/drains
• Twelve 3/4" NPT connections.

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Carbon Steel. Length: 4,150 mm (163 in). Tube Number: 1,248. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,050 mm (120 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule as follows: Shell inlet One 36", shell outlet one 4", channel inlet/outlet are two 6".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: American Standard

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 3.2 m² (34 ft²)

Orientation: Horizontal

• Shell length: 3'

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 65.6 °C (150 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Shell Diameter: 152.4 mm (6 in). Length: 914 mm (36 in). Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in).
