Shell and Tube Heat Exchanger 15.7 m² (169 ft²) Stainless Steel Austenitic For Sale - IPP# 211971

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 32 m² (344.4 ft²)

Orientation: Horizontal

Certification: TUV certified

Shell Pressure: 6 bar (87 psi). Shell Temperature: 70 °C (158 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 25 °C (77 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 500 mm (19.7 in). Head Material: Carbon Steel. Length: 3,000 mm (118.8 in). Tube-side Passes: 4. Tube Number: 164. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Head openings: (1) dished head with 2-80mm, (1) head with no openings, shell with 1-150mm, 1-80mm, 1-50mm.

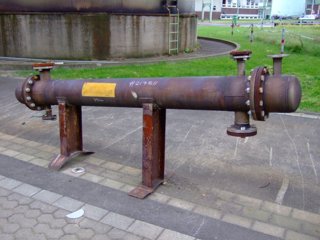

Type: Heat Exchanger

Subtype: Shell and Tube

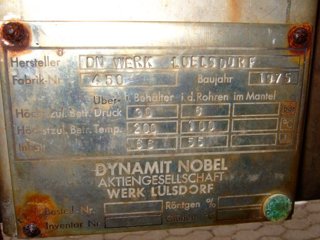

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 9.7 m² (104 ft²)

Orientation: Horizontal

• inclined heat exchanger
• pressure tube side 6 bar @ 100 degrees C (55 liter),
• shell 30 bar @ 200 degrees C (66 liter)
• (2) bonnet heads
• (3) internal baffle plates
• TUV certified

Shell Pressure: 30 bar (435.1 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Titanium. Tube Pressure: 6 bar (87 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 260 mm (10.2 in). Head Material: Stainless Steel Austenitic. Length: 3,050 mm (120.1 in). Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings tube side: each head with 1-50mm - Openings shell side: 2-100mm, 2-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Greub

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 30 m² (322.9 ft²)

Orientation: Horizontal

1.4435 outer tube, double pipe 6 pass design tube side -1/8 bar @ -30 to 200 degrees C, volume 30; rated shell side -1/2 bar @ -30 to 200 degrees C, volume 185 liter. outer tube is 114.3 mm diameter. Heads are 144 mm diameter. Design to sit in saddles, no saddles with unit.

Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Tube Number: 6. Tube Diameter: 40 mm (1.57 in). Tube Length: 2,500 mm (97.8 in). Nozzle Schedule: - Openings: - (2) 40 mm tube side - (2) 100 mm outer tube.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 35.5 m² (382.1 ft²)

Orientation: Horizontal

1-s/steel bonnet head (1-head missing) 2-c/steel feet

Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 20 bar (290.1 psi). Tube Temperature: 185 °C (365 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 300 mm (11.8 in). Head Material: Stainless Steel Austenitic. Tube Number: 91. Tube Diameter: 25 mm (0.98 in). Tube Length: 4,950 mm (195.7 in). Nozzle Schedule: openings: 1-head with 1-100mm, shell: 2-50mm.
