without heads pressure tube side -1/16 bar @ 350 deg C (350 liter) shell side -1/6 bar @ -350 deg C (428 liter)

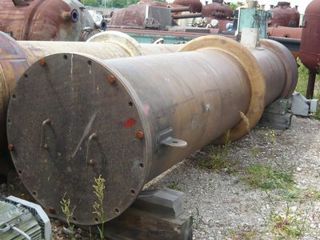

Type: Heat Exchanger
Subtype: Shell and Tube

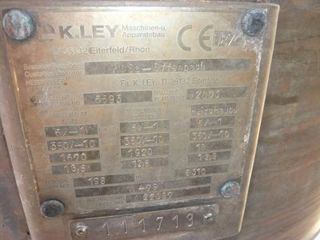

Manufacturer: K. LEY Germany
Condition: Used
Material: Stainless Steel Austenitic
Heat Transfer Surface Area: 198 m² (2,150 ft²)
Orientation: Vertical
no heads pressure tube side -1/6 bar @ -10/+350 deg C (1670 liter) shell side -1/6 bar @ -10/+350 deg C (1920 liter) heating cab -1/6 bar @ -10/350 deg C, volume 18 liter
Shell Pressure: 6 bar (87 psi). Shell Temperature: 350 °C (662 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 350 °C (662 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: K. LEY Germany
Condition: Used
Material: Stainless Steel Austenitic
Heat Transfer Surface Area: 183 m² (1,950 ft²)
Orientation: Vertical
no heads pressure tube side -1/6 bar @ 200 deg C volume 815 liter shell side -1/6 bar @ 200 deg C volume 1560 liter
Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,200 mm (47.2 in). Tube Number: 940. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.3 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings (shell): 1-500mm, 1-150mm, 2-200mm, 2-15mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: K. LEY Germany
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 183 m² (1,950 ft²)
Orientation: Vertical
(1) Duplex stainless steel (1.4462) hemispherical head, (1) duplex stainless steel (1.4462) dished head pressure tube side: -1/6 bar @ 250 deg C (815 liter), shell side: -1/6 bar @ 250deg C (1560 liter)
Shell Pressure: 6 bar (87 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,200 mm (47.2 in). Head Material: Stainless Steel Other. Tube Number: 940. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings: shell: 1-600mm, 2-200mm, 1-150mm, 2-20mm, 2-15mm, top head (hemespherical head ): 1-500mm, 1-50mm, bottom head (dished head): 1-300mm, 2-50mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Greub
Condition: Used
Material: Stainless Steel Austenitic
Heat Transfer Surface Area: 30 m² (322.9 ft²)
Orientation: Horizontal
1.4435 outer tube, double pipe 6 pass design tube side -1/8 bar @ -30 to 200 degrees C, volume 30; rated shell side -1/2 bar @ -30 to 200 degrees C, volume 185 liter. outer tube is 114.3 mm diameter. Heads are 144 mm diameter. Design to sit in saddles, no saddles with unit.
Shell Pressure: 2 bar (29 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 8 bar (116 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel Other. Tube Type: U-Tube. Tube Number: 6. Tube Diameter: 40 mm (1.57 in). Tube Length: 2,500 mm (97.8 in). Nozzle Schedule: - Openings: - (2) 40 mm tube side - (2) 100 mm outer tube.
