180 m² (1,938 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale IPP# 214093

IPP# 214093, 180 m² (1,938 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel 316

Manufacturer:

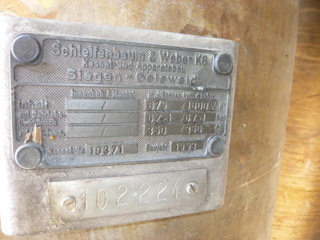

Schleifenbaum & Weber KG-Germany

Heat Transfer Surface Area:

180 m² (1,938 ft²)

Orientation:

Vertical

Shell Pressure:

20 bar (290.1 psi)

Shell Temperature:

250 °C (482 °F)

Shell Material:

Stainless Steel 316

Tube Pressure:

6 bar (87 psi)

Tube Temperature:

250 °C (482 °F)

Tube Material:

Stainless Steel 316

Vacuum:

Yes

Shell Diameter:

1,200 mm (47.2 in)

Tube Number:

920

Tube Diameter:

25 mm (0.98 in)

Tube Length:

2,500 mm (98.4 in)

Tube Thickness:

2 mm (0.08 in)

Nozzle Schedule:

- Shell openings: 1-100mm, 2-20mm, 1-230mm

Additional Info:

316 s/steel (1.4541/1.4301) tube and shell vertical or horizontal heat exchanger no heads pressure tube side -1/6 bar @ 250 deg C volume 1702 liter sheel side -1/20 bar @ 250 deg C volume 1530 liter Expansion bellows: Yes
