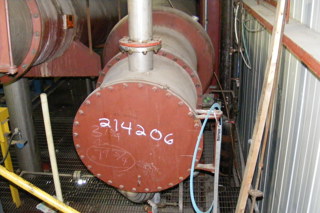

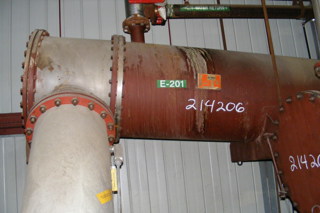

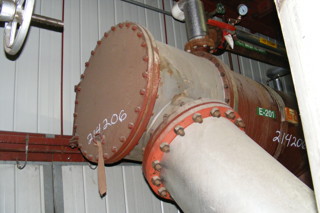

195.5 m² (2,104 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale IPP# 214213

IPP# 214213, 195.5 m² (2,104 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel 316

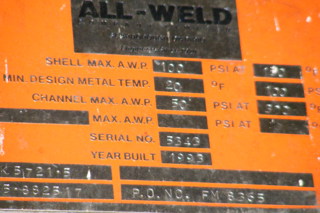

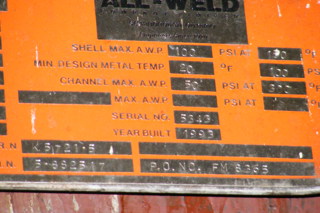

Manufacturer:

All-Weld

Heat Transfer Surface Area:

195.5 m² (2,104 ft²)

Orientation:

Horizontal

Shell Pressure:

6.9 bar (100 psi)

Shell Temperature:

65.6 °C (150 °F)

Shell Material:

Carbon Steel

Tube Pressure:

3.4 bar (50 psi)

Tube Temperature:

148.9 °C (300 °F)

Tube Material:

Stainless Steel 316

Tubesheet Material:

Stainless Steel 316

Shell Diameter:

711.2 mm (28 in)

Head Material:

Stainless Steel 316

Length:

7,315 mm (288 in)

Tube Number:

462

Tube Diameter:

25.4 mm (1 in)

Tube Length:

6,096 mm (240 in)

Tube Thickness:

1.52 mm (0.06 in)

Nozzle Schedule:

- Openings: Shell side - (2) 4"; One Head - (1) 16"; other head (2)6".

Additional Info:

CRN #: K5721.5 OIN #: 5.882.524 Baffles: (20) CS 3/16" thick Channel heads: (2) 316LSS, 3/16" thick with expansion joint
with (20) CS 3/16" thick baffles.

IPP# 214213, 195.5 m² (2,104 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale
