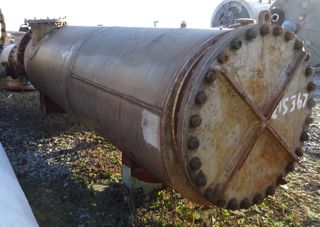

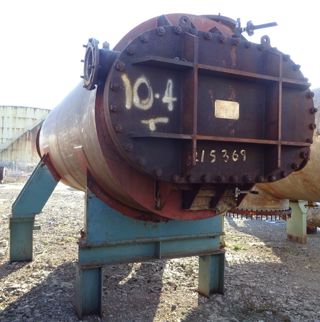

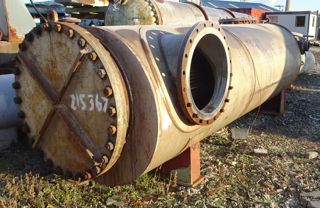

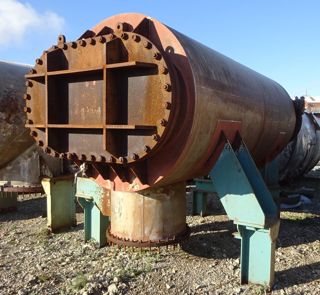

165.7 m² (1,784 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale IPP# 215368

IPP# 215368, 165.7 m² (1,784 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel 316

Manufacturer:

Hick Hargreaves

Heat Transfer Surface Area:

165.7 m² (1,784 ft²)

Orientation:

Horizontal

Shell Pressure:

0.48 bar (7 psi)

Shell Temperature:

200 °C (392 °F)

Shell Material:

Stainless Steel 316

Tube Pressure:

4 bar (58 psi)

Tube Temperature:

147.5 °C (297.5 °F)

Tube Material:

Stainless Steel 316

Tubesheet Material:

Stainless Steel 316

Vacuum:

Yes

Shell Diameter:

1,776 mm (69.9 in)

Head Material:

Carbon Steel

Length:

3,620 mm (142.5 in)

Tube-side Passes:

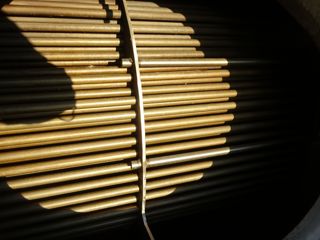

Tube Number:

756

Tube Diameter:

19 mm (0.75 in)

Tube Length:

3,657 mm (144 in)

Nozzle Schedule:

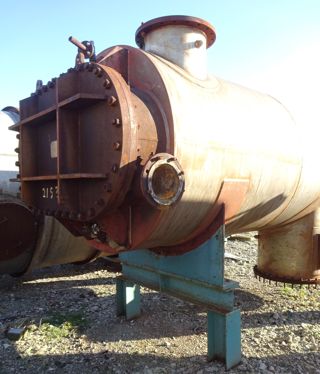

- Openings tubeside: 2-200mm - Shell: 1-1200mm, 1-600mm, 1-100mm

Additional Info:

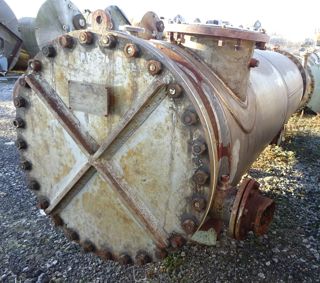

size 72:144 design pressure tubeside: 5 barg @ 150 degrees C, shell: full vacuum @ 200 degrees C 316 stainless steel tube plates 2- carbon steel water box heads with flat cover plates 8mm thick shell
